Remote Control Tractor Water Well Drilling Rig 260m Agricultural Water And Pneumatic Well Drilling Rig

Remote Control Tractor Water Well Drilling Rig 260m Agricultural Water And Pneumatic Well Drilling Rig

Pneumatic water well drilling rig

Agricultural water well drilling rig

260m water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260WT

Contact Us
Request A Quote
Product Details
Product Category:
Borehole Drilling Machine
Weight:
4.5T
Hole Diameter (mm):
140 - 254
Depth (m):
260m
Travelling Speed (km/h):
30
Lifting Force:
12t
Air Pressure (Mpa):
1.7 - 2.5
Dimension (mm):
4000*1700*2700
Output Torque (n.m):
5000 -5500
Highlight:

Pneumatic water well drilling rig

,

Agricultural water well drilling rig

,

260m water well drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Remote control tractor water well drilling rig 260m Agricultural water and pneumatic well drilling rig



Product Description:

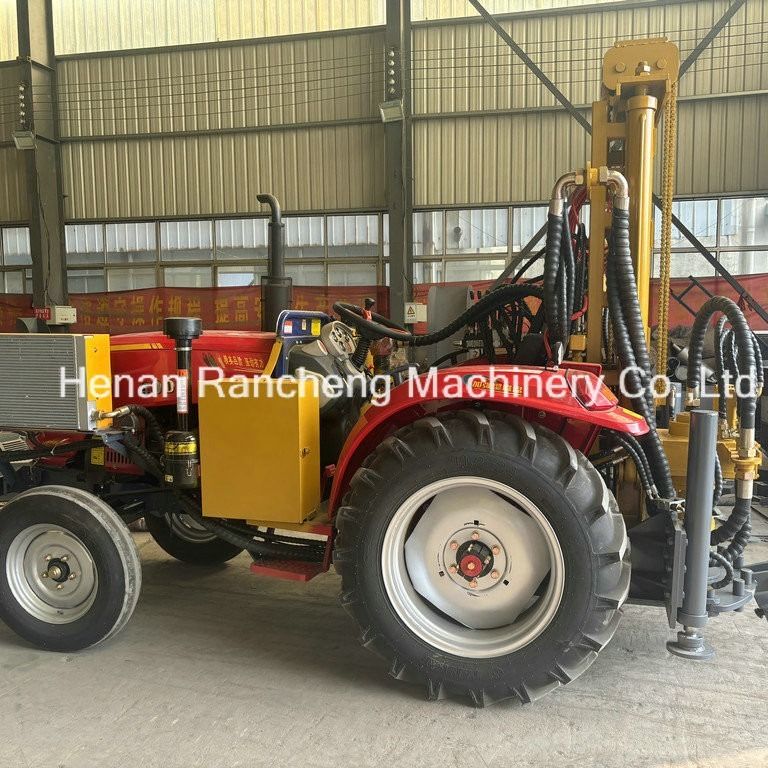

The RCF260WT tractor mounted borewell machine is integrated with the tractor. The tractor is the rig, the transportation machine, and the working power of the rig. When going to the work site, the tractor has the transportation transfer capability. The air compressor can be mounted, which saves the investment of the transportation vehicle, lowers the cost and makes the work more convenient. It only needs a tricycle to load the drill pipe. Because the fuselage is small and flexible, the tractor is more suitable for driving and operating in various road conditions and occasions in the wild, villages, etc. Rural hutongs and farmyards can enter the well.





Features:



1.High Efficiency: RCF260WT tractor mounted borewell machine has higher air power, and thus play a significant role in Increasing drilling speed. Using the latest model and advanced hydraulic technology, RCF260WT tractor mounted borewell machine has the characteristics of low consumption, large rotation torque and convenient hole making.



2.Fuel Efficient: RCF260WT tractor mounted borewell machine uses the tractor as the carrier and uses hydraulic pressure as the working power of the rig. It can easily realize the drilling of 260 meters with the power of the tractor's own diesel engine 50HP. At the same time, it is not necessary to open the air compressor when lifting the rod, just opening the hydraulic power is enough to lift the rod.



3.Keyboard Operation & Wireless Control: RCF260WT tractor mounted borewell machine uses mechatronics technology to operate the rig with a push-button keyboard. The operation mode is simpler and more flexible, and the operator can freely select the workstation position according to his or her own will, without being limited by the rig, and can realize the instantaneous operation. The improved version of the machine realizes wireless remote control operation, which makes the operation more convenient.



4.Labor Saving: Two people is enough to operate the tractor mounted borewell machine -- Control the equipment and change the rod to complete the whole work, saving labor.



5.Simultaneous Casing: The tractor mounted borewell machine can do simultaneous casing while it is drilling, and the drill is equipped with a quick connection plug for the brawbench.



6.Multi-industry applications: Suitable for water wells, geothermal wells and mineral exploration in industries such as agriculture, construction, mining, etc.



Technical Parameters:



Product Name: Mobile Tractor Mounted Water Drilling Machine/Borehole Drilling Machine
Travelling Speed (km/h): 30
Output Torque (n.m): 5000 -5500
Rod Diameter (mm): 76 & 89
Hole Diameter (mm): 140 - 254
Dimension (mm): 4000*1700*2700
Rotation Speed (rpm): 45 -65
Lifting Force: 12t
Climbing Angle: 25 Degree
Rod Length (mm): 2000


Remote Control Tractor Water Well Drilling Rig 260m Agricultural Water And Pneumatic Well Drilling Rig 0

Remote Control Tractor Water Well Drilling Rig 260m Agricultural Water And Pneumatic Well Drilling Rig 1

Remote Control Tractor Water Well Drilling Rig 260m Agricultural Water And Pneumatic Well Drilling Rig 2

Remote Control Tractor Water Well Drilling Rig 260m Agricultural Water And Pneumatic Well Drilling Rig 3
