Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine

Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine

Wheel Trailer Mounted Core Drill Machine

Geological Core Drill Machine

Geotechnical Exploration Core Drill Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Contact Us
Request A Quote
Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine
Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine
Product Details
Model:
RCF220W Deep Water Well Drilling Rigs
Engine Power:
65KW Quanchai Engine
Max Drilling Depth:
220m
Drilling Way:
Both Mud Pump DTH Air Drilling
Lifting Force:
13T
Bore Diameter:
90-300mm
Highlight:

Wheel Trailer Mounted Core Drill Machine

,

Geological Core Drill Machine

,

Geotechnical Exploration Core Drill Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price RCF220W Borehole Drilling Machine for Hydrology Wells Supplies online Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells online Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price
Contact Us
Contact Now
Product Description

Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine
Machine Introduction

The RCF220W Series Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
It is flexible and convenient to move, suitable for a wide range of areas, simple and efficient, and can be used for water well drilling, geothermal well drilling and other purposes.

Technical Parameters

Bore diameter(Hammer)90-300mm
Bore depth220m
Air consumption17-31m³/min
Air pressure1.7-2.5Mpa
Pipe diameter76mm/89mm
Pipe length1m,2m,3m
Lifting force13T
Lifting speed2.5m/min
feeding speed0.5-5m/min
Fast lifting speed24m/min
Fast feeding speed35m/min
Max torque of rotary3400-4700Nm
Rotary speed45-70r/min
Hoisting force of winch1.4T
Mud Pump flow250L/min (option)
High hydraulic leg1.5m
Feeding efficiency10-35m/h
Travel speed2.5Km/h
Climb ability30°
Dimension(L*W*H)4×1.75×2.25M
Weight5500Kg
Diesel engine65KW Quanchai engine


Machine Advantages

1.Drilling depth can reach 260m

2.Steels quality is good, torque is large

3.Easy operation, free-maintaining

4.Wheeled trailer, easy to move

5.For various complex strutam, such as pebble bed, aggregate bed.

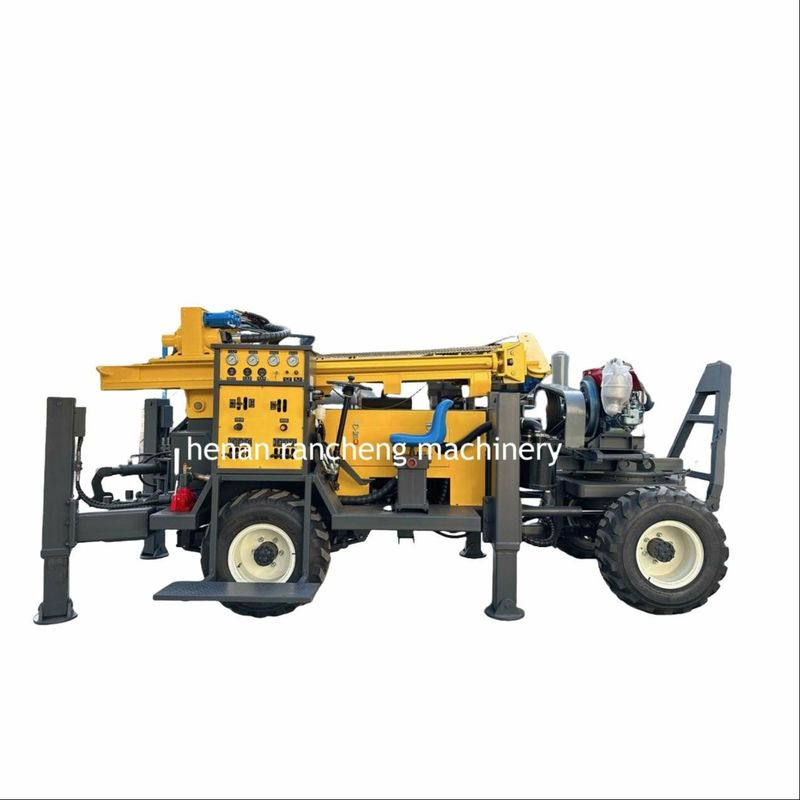

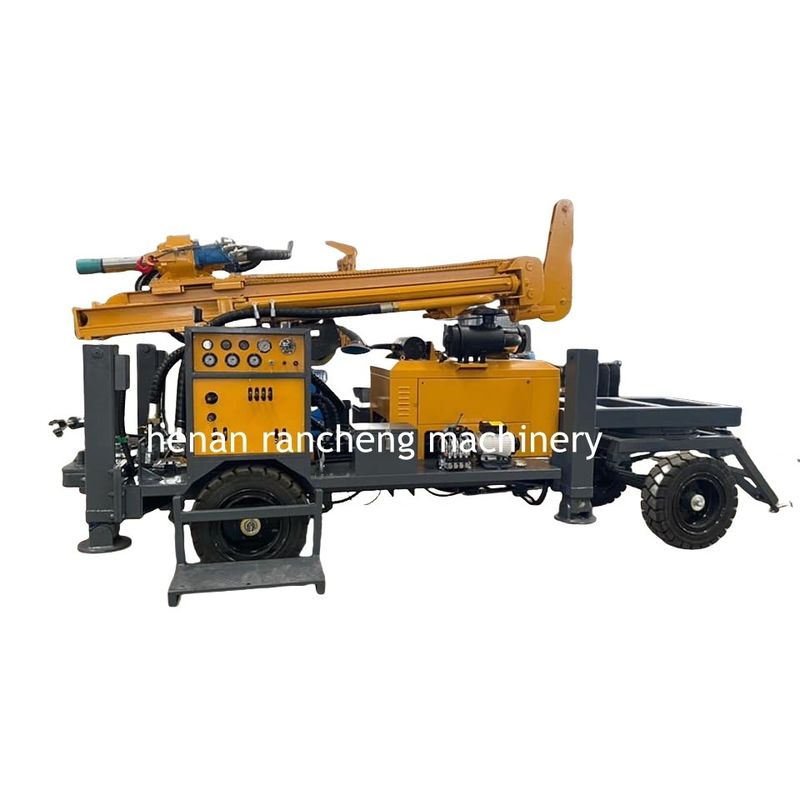

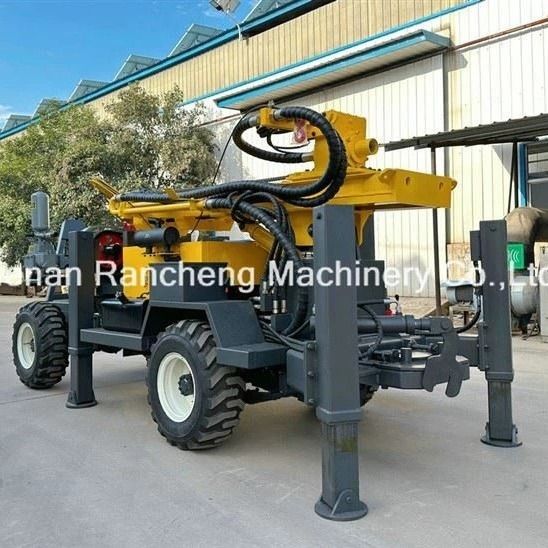

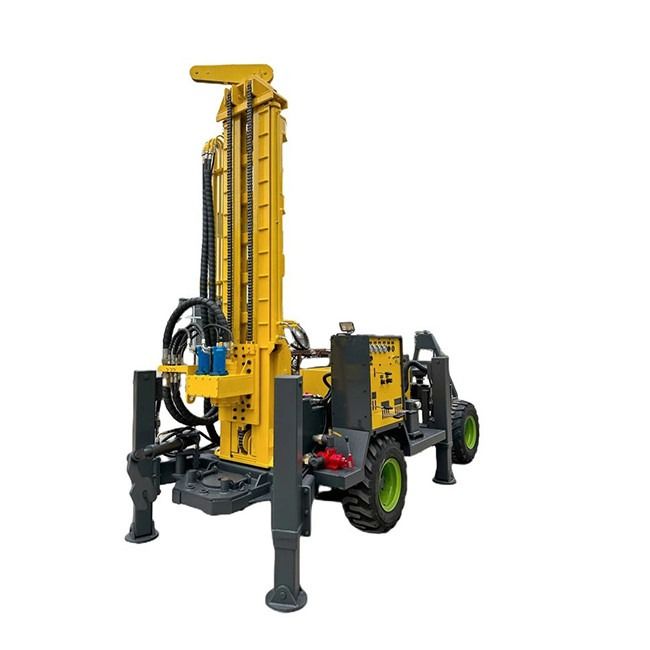

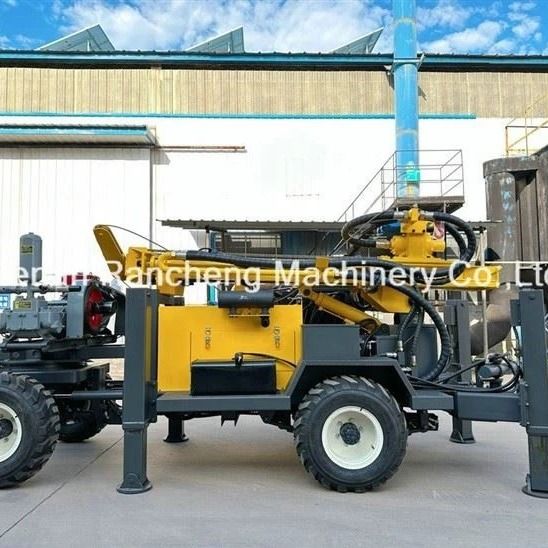

Machine Pictures

Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine 0Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine 1Wheel Trailer Mounted Geological Geotechnical Exploration Core Drill Machine 2
