Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine

Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine

Wheel Trailer Mounted Well Drilling Machine

180m Well Drilling Machine

Trailer Mounted Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Contact Us
Request A Quote

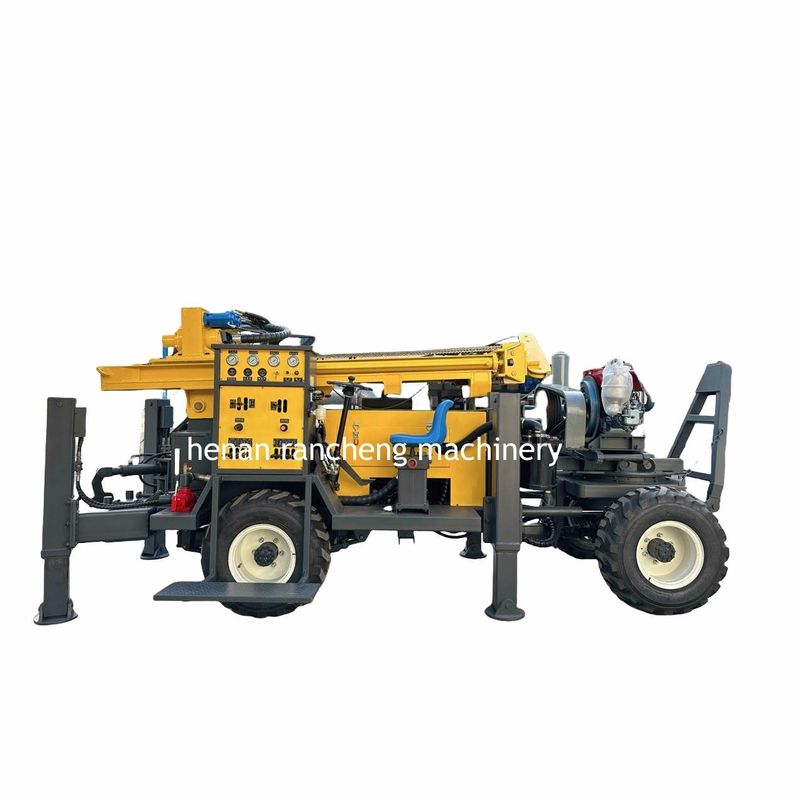

Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine
Product Details
Model:
RCF220W Deep Water Well Drilling Rigs
Engine Power:
65KW Quanchai Engine
Max Drilling Depth:
220m
Drilling Way:
Both Mud Pump DTH Air Drilling
Lifting Force:
13T
Bore Diameter:
90-300mm
Highlight:

Wheel Trailer Mounted Well Drilling Machine

,

180m Well Drilling Machine

,

Trailer Mounted Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCF220W Ultimate Borehole Drilling Machine for Industrial Civil Drilling online Video

RCF220W Ultimate Borehole Drilling Machine for Industrial Civil Drilling

Get Best Price
Good price Flexible RCF220W Wheel Type Borehole Drilling Machine for Marine Engineering online Video

Flexible RCF220W Wheel Type Borehole Drilling Machine for Marine Engineering

Get Best Price
Good price RCF220W Water Well Drilling Machine for Industrial and Civil Projects online Video

RCF220W Water Well Drilling Machine for Industrial and Civil Projects

Get Best Price
Good price 260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment online Video

260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment

Get Best Price
Contact Us
Contact Now
Product Description

Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine



Machine Introduction

RCF220W is a wheel type drilling rig,it is very easy to move,this rig is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.


Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages


1. Energy saving. Low tower design, can drill indoor and outdoor.


2. Patented product, unique design and simple drilling structure.


3. Easy to transport and can learn how to handle the machine in short time.


4. Assure easily operation and long life service life

Machine Pictures

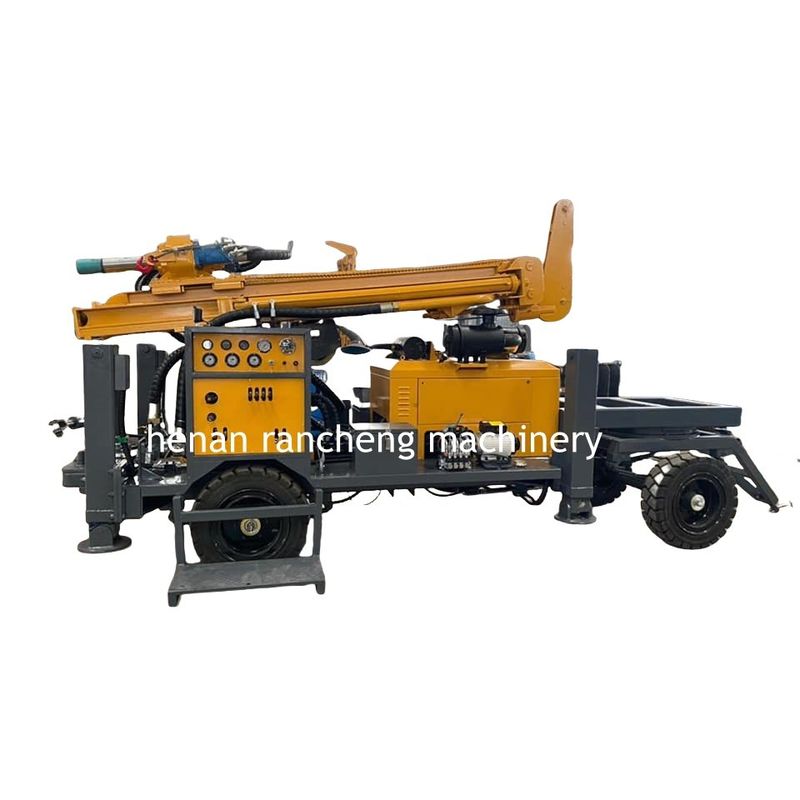

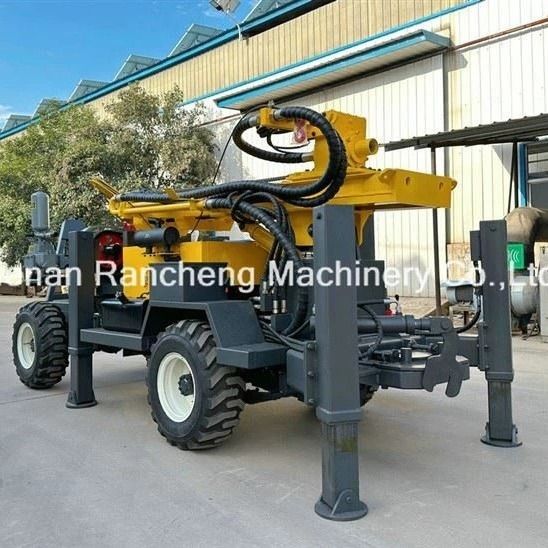

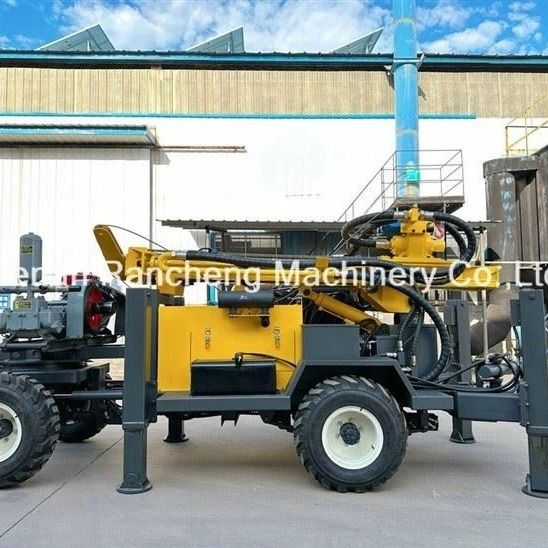

Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine 0Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine 1Wheel Trailer Mounted Trailer Water Well Drilling Rig 180m Well Drilling Machine 2
