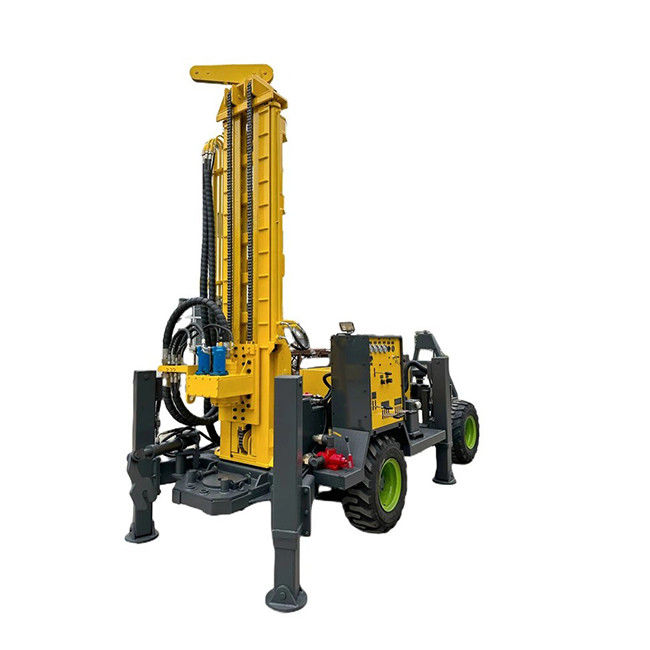

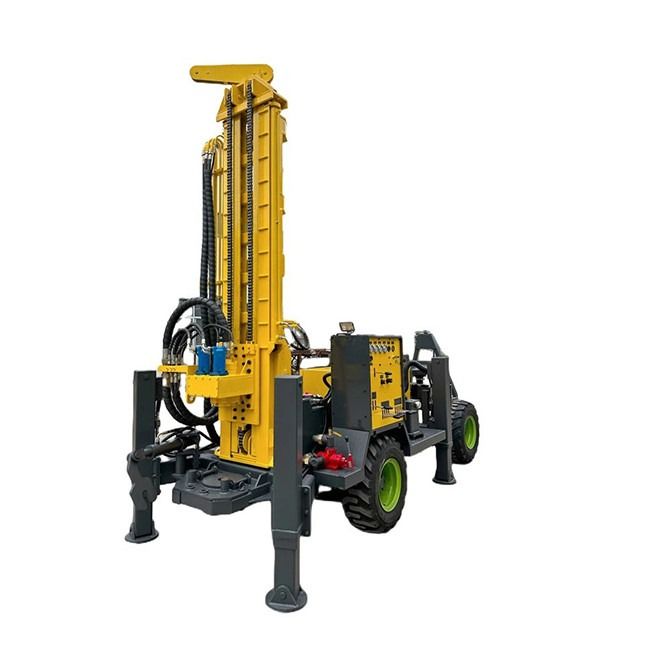

RCF220W Wheel Type Easy Towed By Vehible Portable Water Well Drilling Rig

RCF220W Wheel Type Easy Towed By Vehible Portable Water Well Drilling Rig

Vehible Water Well Drilling Rig

RCF220W Water Well Drilling Rig

Portable Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Contact Us
Request A Quote
Product Details
Model:
RCF220W Deep Water Well Drilling Rigs
Engine Power:
65KW Quanchai Engine
Max Drilling Depth:
220m
Drilling Way:
Both Mud Pump DTH Air Drilling
Lifting Force:
13T
Bore Diameter:
90-300mm
Highlight:

Vehible Water Well Drilling Rig

,

RCF220W Water Well Drilling Rig

,

Portable Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCF220W Wheel Type Easy Towed by Vehible Portable Quality Water Well Drilling Rig



Machine Introduction

RCF220W is a wheel type drilling rig,it is very easy to move,this rig is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.


Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages


1. This rig adopts hydraulic system, large torque, high drilling efficiency.


2. The propulsion and lifting use hydraulic cylinders to drive the plate chain transmission, large power, strong torque, powerful drilling in soil, sand, hard rock and other complex geological conditions.


3. the tower assembly has a hydraulic compensation mechanism, the tower supported on the ground when drilling, with greater bearing capacity and higher stability.


4. The front outrigger adopts a telescopic structure, which has a large span during construction and high stability of the drilling rig.


5. this rig is hydraulic drive, mounted on four wheels, very convenient for moving and transportation.

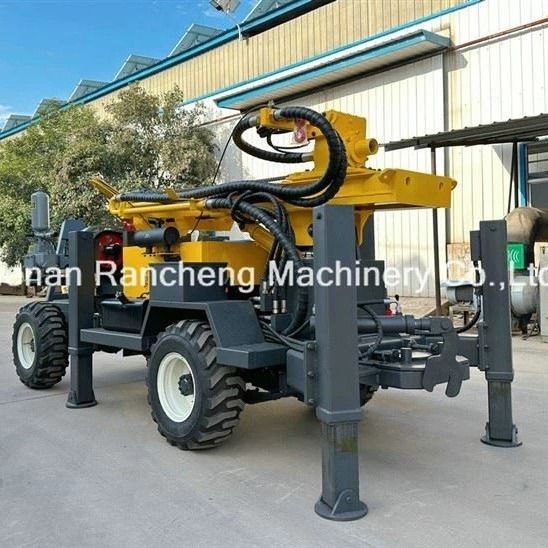

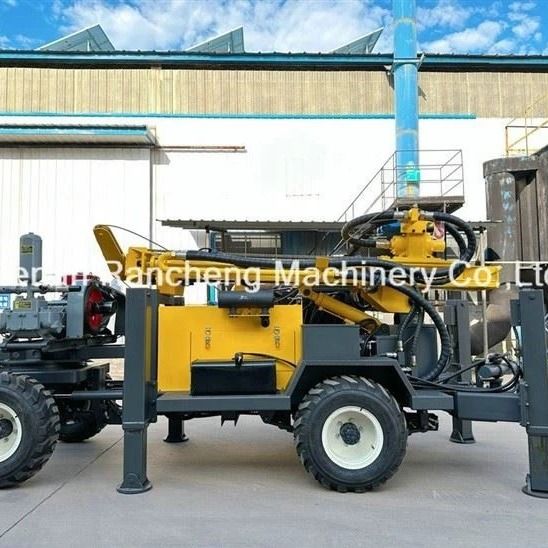

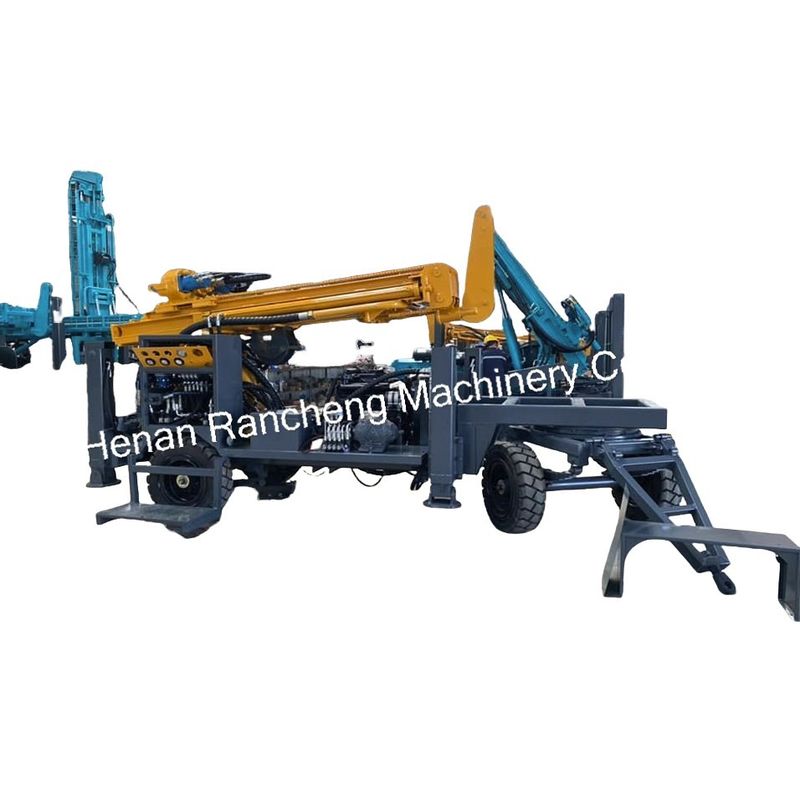

Machine Pictures

RCF220W Wheel Type Easy Towed By Vehible Portable Water Well Drilling Rig 0RCF220W Wheel Type Easy Towed By Vehible Portable Water Well Drilling Rig 1RCF220W Wheel Type Easy Towed By Vehible Portable Water Well Drilling Rig 2
