RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig

RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig

220 Meter Drilling Rig

Pneumatic Rotary Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Contact Us
Request A Quote
RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig
RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig
Product Details
Model:
RCF220W Deep Water Well Drilling Rigs
Engine Power:
65KW Quanchai Engine
Max Drilling Depth:
220m
Drilling Way:
Both Mud Pump DTH Air Drilling
Lifting Force:
13T
Bore Diameter:
90-300mm
Highlight:

220 Meter Drilling Rig

,

Pneumatic Rotary Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price RCF220W Borehole Drilling Machine for Hydrology Wells Supplies online Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells online Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price
Contact Us
Contact Now
Product Description

RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig



Machine Introduction

RCF220W water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Pneumatic well drill is especially suitable for water intake in mountainous and rocky strata.


Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages


1. Energy saving. Low tower design, can drill indoor and outdoor.


2. Patented product, unique design and simple drilling structure.


3. Easy to transport and can learn how to handle the machine in short time.

4. Assure easily operation and long life service life

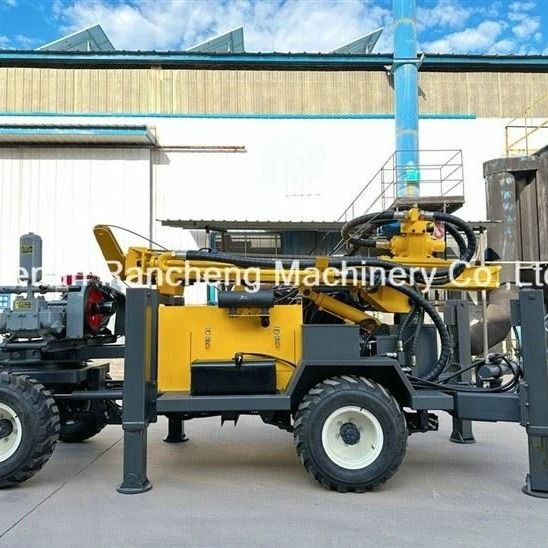

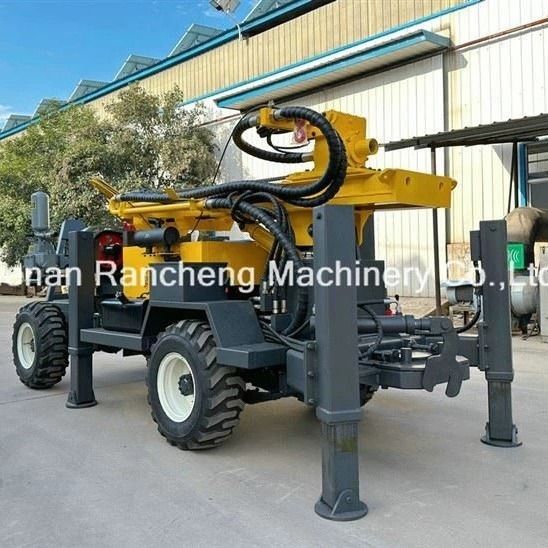

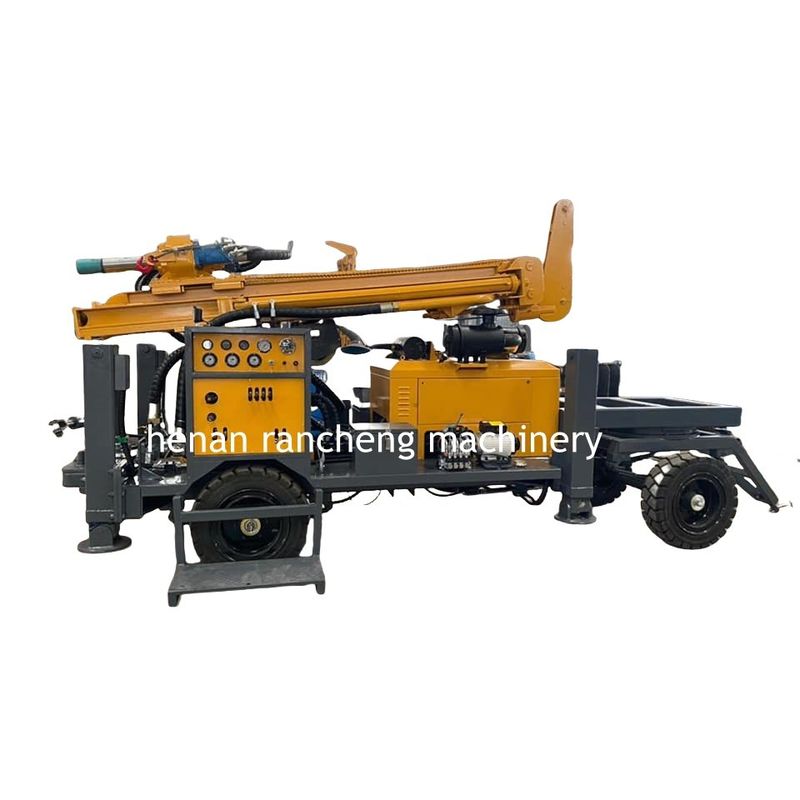

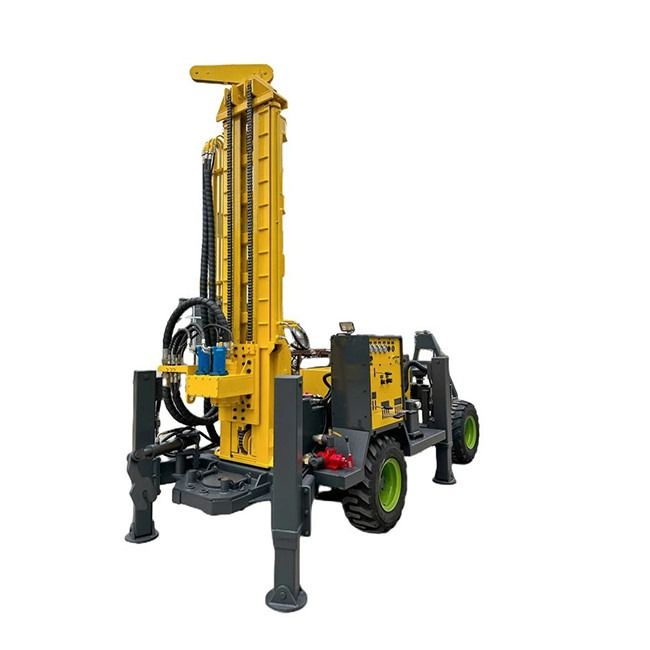

Machine Pictures

RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig 0RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig 1RCF220W Drilling Depth 100 To 220 Meter Wheel Pneumatic Rotary Water Well Drilling Rig 2
