Both Mud Pump DTH Air Drilling RCF220W Rotary Rig - 100 To 220 Meter Capability

Both Mud Pump DTH Air Drilling RCF220W Rotary Rig - 100 To 220 Meter Capability

220 Meter Rotary Drilling Rig

RCF220W Rotary Drilling Rig

Efficient Rotary Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Contact Us
Request A Quote
Product Details
Model:
RCF220W Deep Water Well Drilling Rigs
Engine Power:
65KW Quanchai Engine
Introducing The RCF220W Water Well Drilling Rig – The Ultimate Solution For All Your Drilling Needs!:
220m
Drilling Way:
Both Mud Pump DTH Air Drilling
Lifting Force:
13T
Bore Diameter:
90-300mm
Highlight:

220 Meter Rotary Drilling Rig

,

RCF220W Rotary Drilling Rig

,

Efficient Rotary Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Both Mud Pump DTH Air Drilling RCF220W Rotary Rig - 100 To 220 Meter Capability



Machine Introduction


Introducing the RCF220W Water Well Drill - the ultimate solution for all your needs. Drill! Designed with efficiency and versatility in mind, this lightweight, versatile drill is ideal for both industrial and residential applications. Whether you're drilling for water, geothermal or other resources, the RCF220W delivers exceptional performance in a variety of harsh environments.



One of the standout features of the RCF220W is its compact size, which allows for easy transport and remote installation. The platform is not only mobile but also flexible, making it ideal for use in a variety of terrains, including mountainous areas and rocky formations. Its pneumatic drilling capabilities guarantee efficient access to water even in the most difficult geological conditions.



With a maximum drilling depth of 220 meters, the RCF220W is capable of handling a wide range of drilling projects, from small residential wells to large industrial operations. The fast feed mechanism significantly reduces downtime, allowing you to complete your drilling tasks more effectively and efficiently.



The RCF220W Water Well Drill is designed for users who demand reliability and performance. Its rugged construction and advanced technology allow you to confidently tackle any drilling challenge. Whether you are a contractor, geologist or DIY enthusiast, this platform is the perfect addition to your kit. Instruments.



Discover the power and versatility of the RCF220W water well drill today. With its combination of lightweight design, efficient operation and wide range of applications, you can be confident that this drill will meet and exceed your expectations. Don't miss your opportunity to increase your drilling capabilities - invest in the RCF220W and unlock new possibilities for your projects!


Technical Parameters



Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages


1. Energy saving. Low tower design, can drill indoor and outdoor.


2. Patented product, unique design and simple drilling structure.


3. Easy to transport and can learn how to handle the machine in short time.

4. Assure easily operation and long life service life

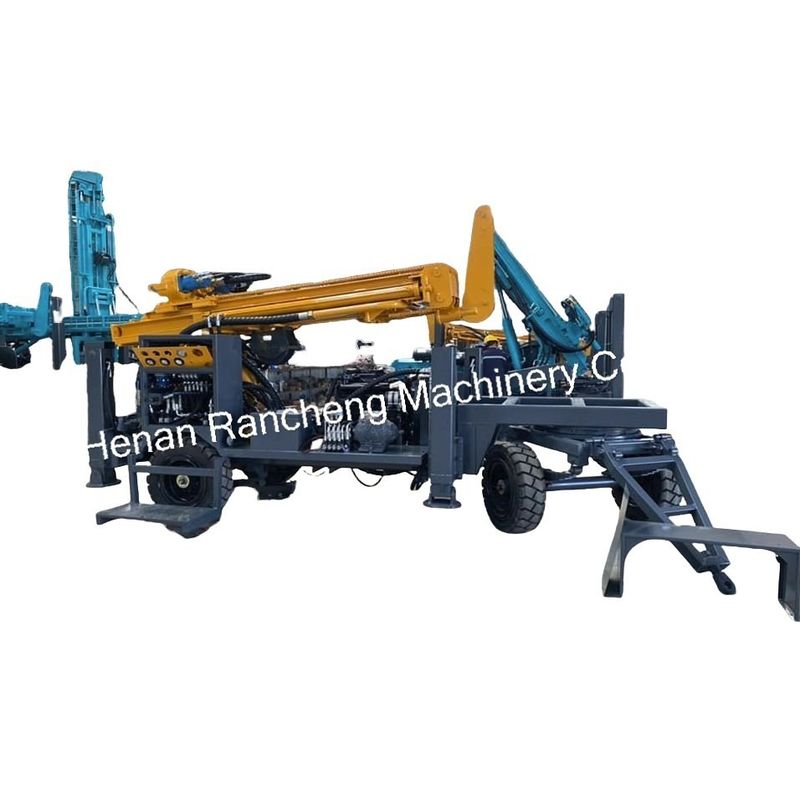

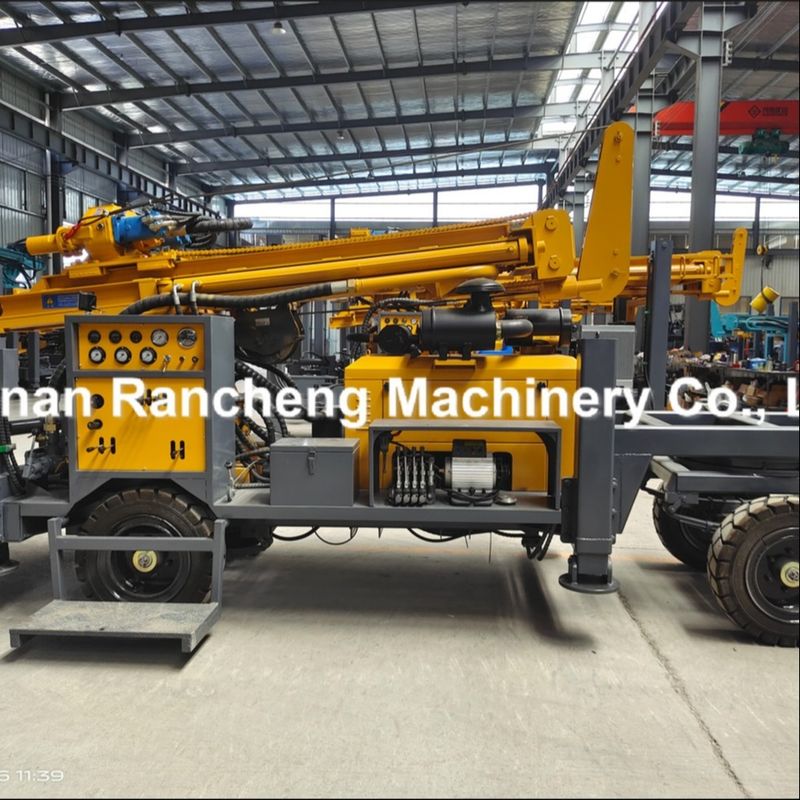

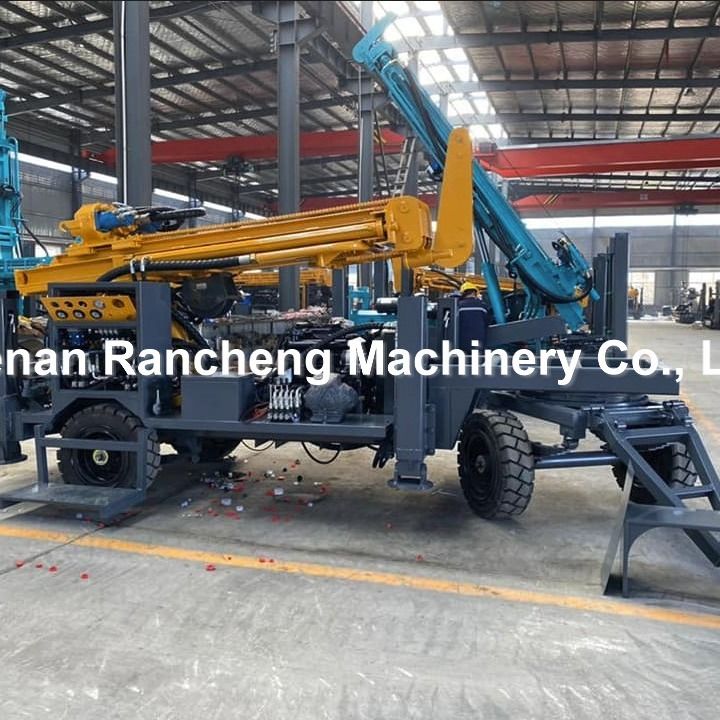

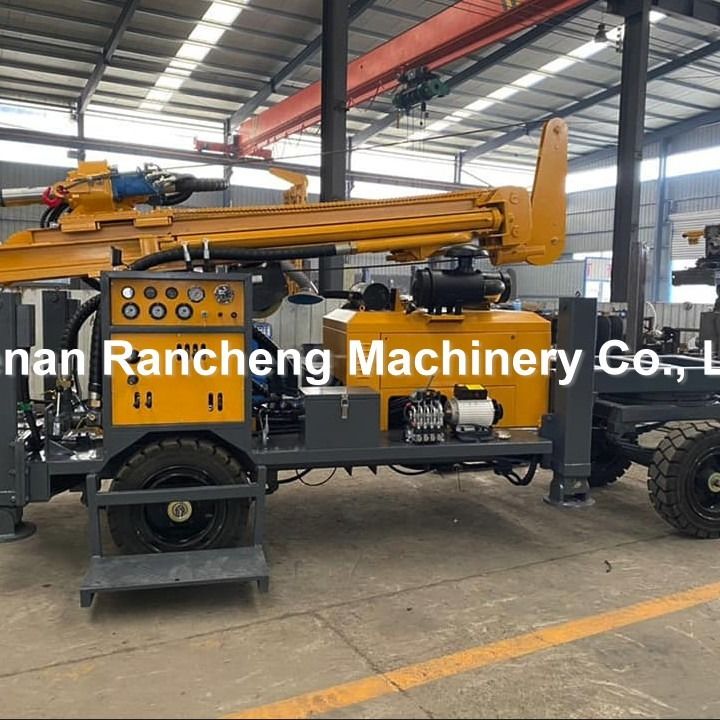

Machine Pictures

Both Mud Pump DTH Air Drilling RCF220W Rotary  Rig - 100 To 220 Meter Capability 0Both Mud Pump DTH Air Drilling RCF220W Rotary  Rig - 100 To 220 Meter Capability 1Both Mud Pump DTH Air Drilling RCF220W Rotary  Rig - 100 To 220 Meter Capability 2
