Name: 220m Wheel Vehicle Mounted Water Well Drilling Rig with 65kw Diesel Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF220W
Availability: InStock

Home > products > Borehole Drilling Machine >

220m Wheel Vehicle Mounted Water Well Drilling Rig with 65kw Diesel Engine

65kw Water Well Drilling Rig

220m Water Well Drilling Rig

Vehicle Mounted Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Request A Quote

Product Details

Model:

RCF220W Hydraulic Water Well Drilling Rig

Bore Diameter:

90-300mm

Bore Depth:

220m

Air Consumption:

17-31m³/min

Air Pressure:

1.7-2.5Mpa

Pipe Diameter:

76mm/89mm

Pipe Length:

1m,2m,3m

Highlight:

65kw Water Well Drilling Rig

220m Water Well Drilling Rig

Vehicle Mounted Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

200m Wheel Vehicle Mounted Water Well Drilling Rig with 65kw Diesel Engine

Machine Introduction

RCF220W wheeled water well drilling rig is a lightweight, efficient and versatile drilling equipment. This water well drilling rig is mainly suitable for industrial and civil drilling, geothermal drilling, and has the advantages of compact structure, fast propulsion speed, flexible mobility and wide application range. Pneumatic drilling rigs are particularly suitable for water extraction in mountainous areas and rock formations.

This water well drilling rig is versatile and can be used with air compressors, mud pumps, and even dry hydraulic drilling methods. This drilling rig is not only designed for water well drilling. They can be used for all conditions based on hole-forming purposes. Made of high-quality materials, stylish and compact design, our drilling rigs are more efficient, have a low failure rate, are more economical and durable, and have a high comprehensive cost-effectiveness. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	220m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Lifting force	13T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	3400-4700Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.4T
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.75×2.25M
Weight	5500Kg
Diesel engine	65KW Quanchai engine

Application

This Water drilling machine is widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

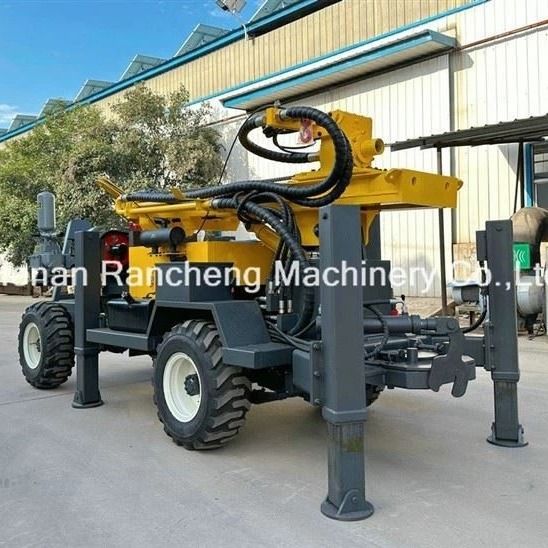

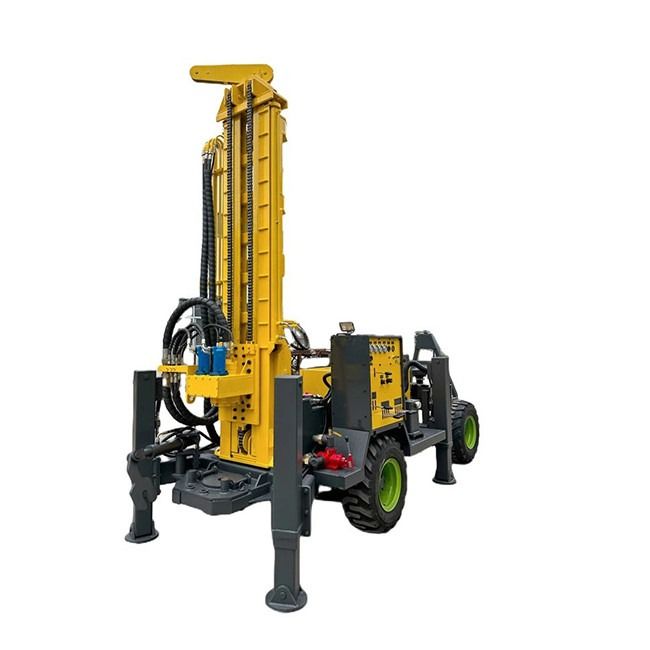

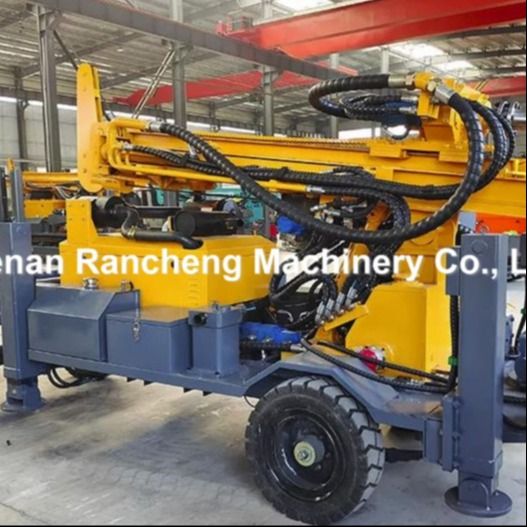

Machine Pictures
