Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation

Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation

Stable Operation Borehole Drilling Machine

1.4T Hoisting Force Borehole Drilling Machine

Winch Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Contact Us
Request A Quote
Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation
Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation
Product Details
Model:
RCF220W Deep Water Well Drilling Rigs
Engine Power:
65KW Quanchai Engine
Max Drilling Depth:
220m
Drilling Way:
Both Mud Pump DTH Air Drilling
Bore Diameter:
90-300mm
Travel Speed:
2.5Km/h
Highlight:

Stable Operation Borehole Drilling Machine

,

1.4T Hoisting Force Borehole Drilling Machine

,

Winch Borehole Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale online Video

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine for sale

Get Best Price
Good price RCF300WT Hydraulic Tractor Mounted Water Well Drilling Machine 100HP online Video

RCF300WT Hydraulic Tractor Mounted Water Well Drilling Machine 100HP

Get Best Price
Good price 260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment online Video

260m Depth Fully Automatic Wheel Hydraulic Water Well Drilling Machines for Drilling Equipment Water Well Equipment

Get Best Price
Good price High Efficiency Four Wheel Trailer Mounted Borehole Drilling Machine 220m Depth Powerful 65KW Engine online Video

High Efficiency Four Wheel Trailer Mounted Borehole Drilling Machine 220m Depth Powerful 65KW Engine

Get Best Price
Contact Us
Contact Now
Product Description

Borehole Drilling Machine with 1.5m High Hydraulic Leg and 1.4T Hoisting Force of Winch

Machine Introduction
 The RCF220W is a wheeled drilling rig, known for its high mobility. It is extensively used in industrial and agricultural water projects, well testing, and other exploration boreholes. In particular, it is well-suited for drilling geothermal heating wells. Additionally, it can support engineering applications such as foundation reinforcement and drilling through loose gravel or rock formations for various engineering purposes.
Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages


1. Energy saving. Low tower design, can drill indoor and outdoor.


2. Patented product, unique design and simple drilling structure.


3. Easy to transport and can learn how to handle the machine in short time.


4. Assure easily operation and long life service life

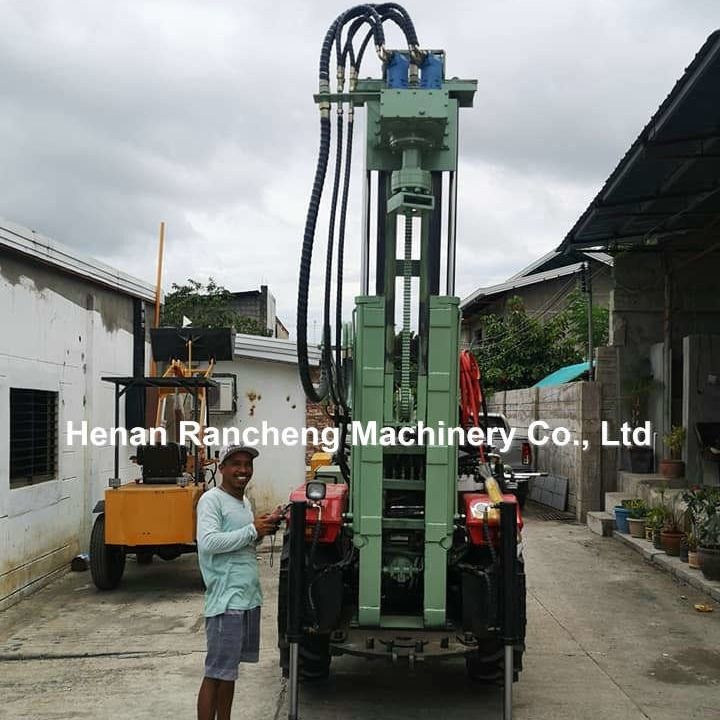

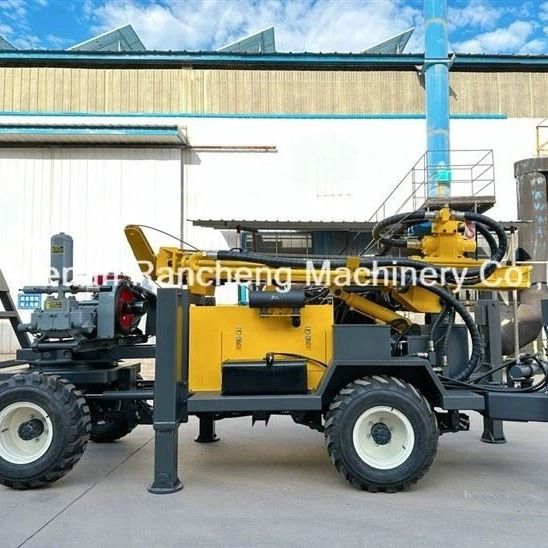

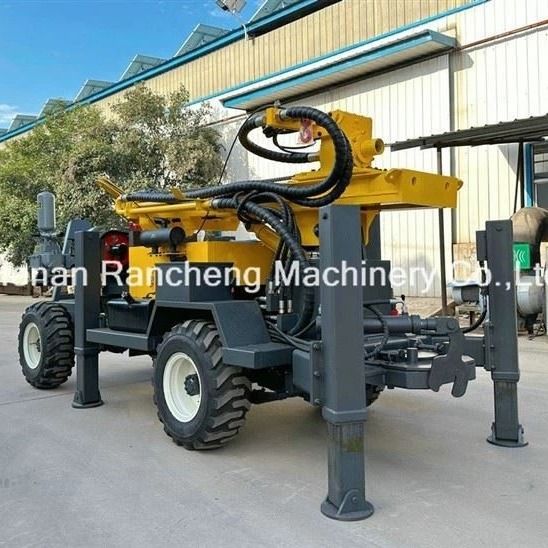

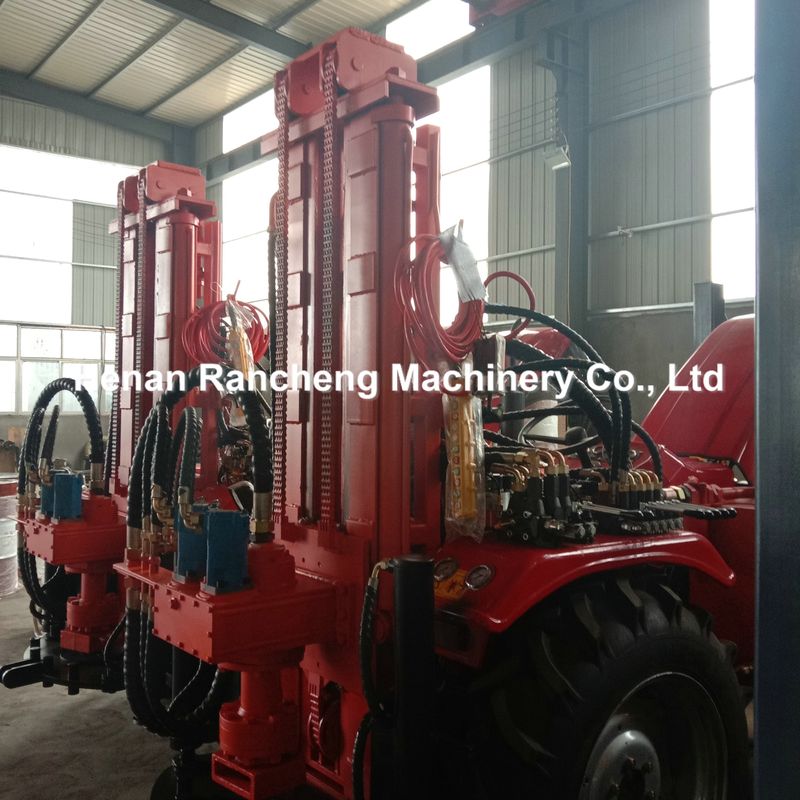

Machine Pictures

Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation 0Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation 1Borehole Drilling Machine With 1.4T Hoisting Force Of Winch For Stable Operation 2
