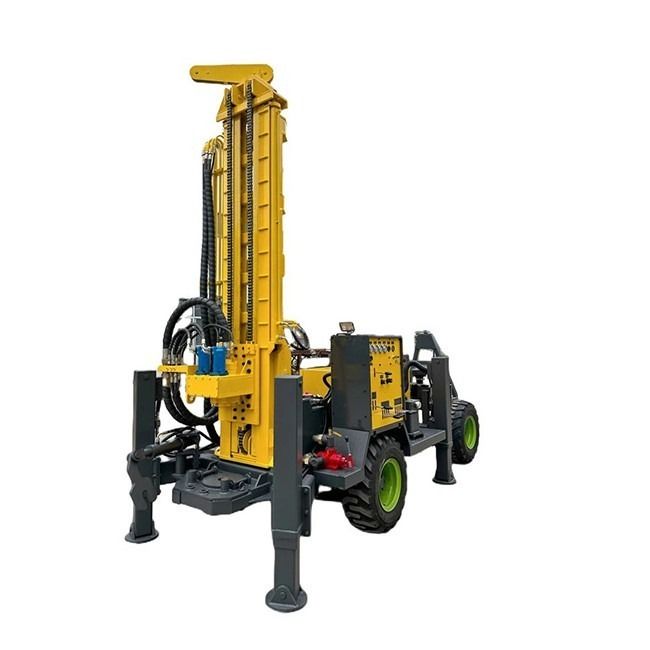

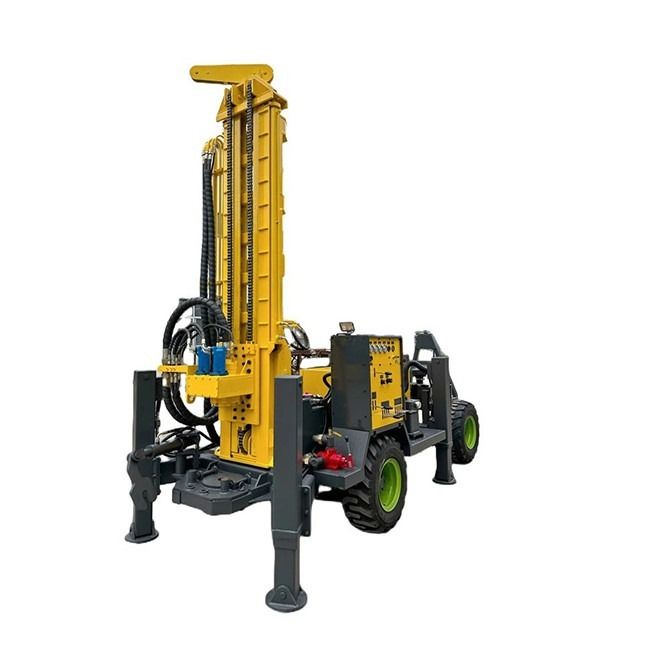

Name: 220m Wheel Vehicle Mounted Water Well Drilling Rig with 65kw Diesel Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF220W
Availability: InStock

Home > products > Borehole Drilling Machine >

220m Wheel Vehicle Mounted Water Well Drilling Rig with 65kw Diesel Engine

220m Water Well Drilling Rig

Vehicle Mounted Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Request A Quote

Product Details

Model:

RCF220W Hydraulic Water Well Drilling Rig

Bore Diameter:

90-300mm

Bore Depth:

220m

Pipe Diameter:

76mm/89mm

Pipe Length:

1m,2m,3m

Diesel Engine:

65KW Quanchai Engine

Max Torque Of Rotary:

4700Nm

Fast Feeding Speed:

35m/min

Highlight:

220m Water Well Drilling Rig

Vehicle Mounted Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

200m Wheel Vehicle Mounted Water Well Drilling Rig with 65kw Diesel Engine

Machine Introduction

RCF200W wheeled water well drilling rig is a convenient, efficient, suitable for a variety of terrains.

The water well drilling rig can be used with an air compressor and a mud pump. The water well drilling rig is suitable for civil drilling rigs and geothermal drilling. The compact structure is easy to transport, the propulsion speed is fast and the working efficiency is high. The machine has a low failure rate, is more economical and durable, and has a high comprehensive cost performance. It is a very popular water well drilling rig.
Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	220m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Lifting force	13T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	3400-4700Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.4T
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.75×2.25M
Weight	5500Kg
Diesel engine	65KW Quanchai engine

Application

This water drilling rig is commonly used in a variety of water projects for both industrial and agricultural purposes, as well as for test wells and other exploratory drilling tasks. It works particularly well for drilling holes for geothermal heating and can also help with reinforcing structures, drilling through loose gravel, and penetrating rock formations in different engineering projects.

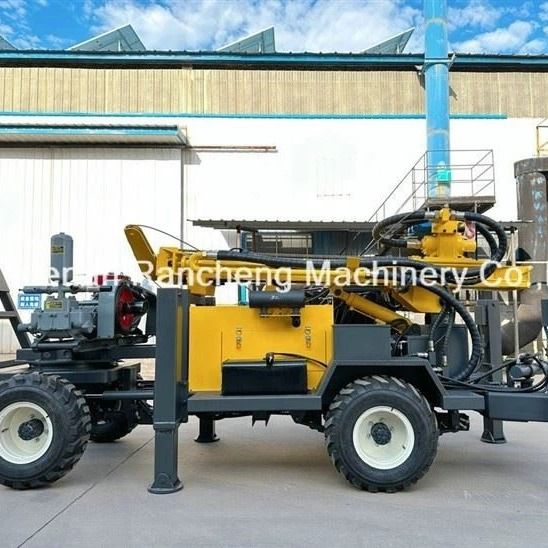

Machine Pictures
