150m Wheel Mounted Water Well Borehole Drilling Rig For 32HP Diesel Engine

150m Wheel Mounted Water Well Borehole Drilling Rig For 32HP Diesel Engine

Machine Introduction

The RCF150W small drilling rig is a lightweight, efficient and versatile equipment. It has a three-wheel trailer that can be transported quickly and easily. Its compact design makes it easy to carry, and the entire tower is driven by a full hydraulic system, so the failure rate is low. The tower is equipped with a hydraulic compensation mechanism to improve the stability and load-bearing capacity of the tower in contact with the ground during operation. In addition, the drilling rig can also adjust the speed, torque, propulsion shaft pressure, reverse shaft pressure, propulsion speed and lifting speed in real time to adapt to various drilling conditions and construction processes.

Technical Parameters

Machine Advantages

1. Three-wheel trailer for towing pickup trucks or tractors.

2. Each impactor achieves optimal efficiency at a specific axial pressure and speed. As the number of drill rods increases during drilling, the axial pressure on the impactor will also increase. Therefore, it is very important to adjust the positive and negative axial pressure valves during use to ensure that the impactor is subjected to ideal axial pressure to achieve maximum impact efficiency.

3. Patented parallel gearbox design, independent oil pump group, effective power distribution, unique hydraulic system, easy maintenance and low cost.

4. Adopting integral casting gearbox, dual motor power, high torque, strong and durable, low maintenance cost.

5. Adopting patented composite boom, compact structure, long stroke, double cylinder lifting, and larger support tonnage.

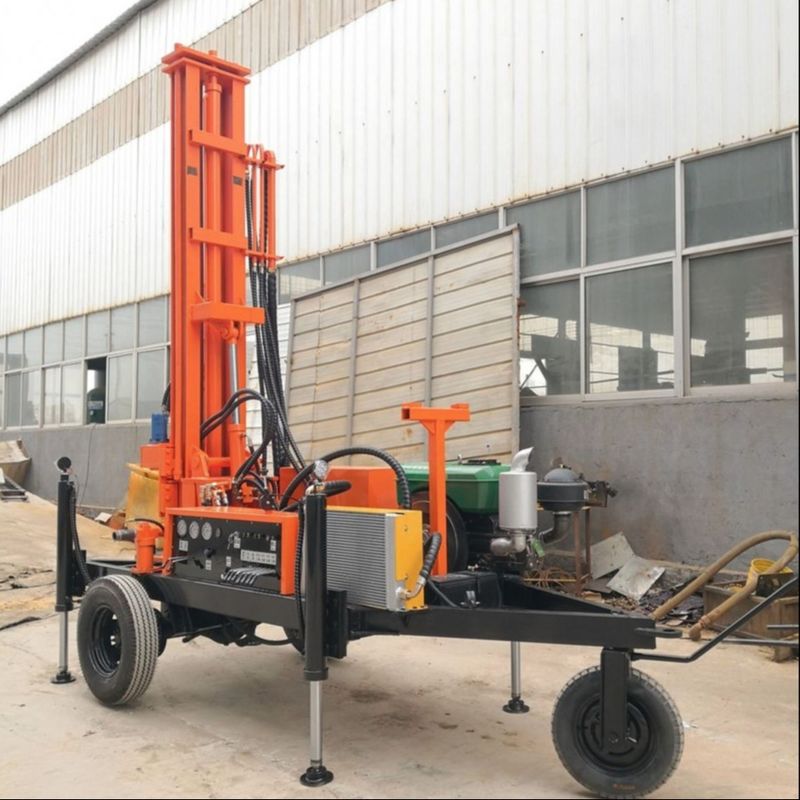

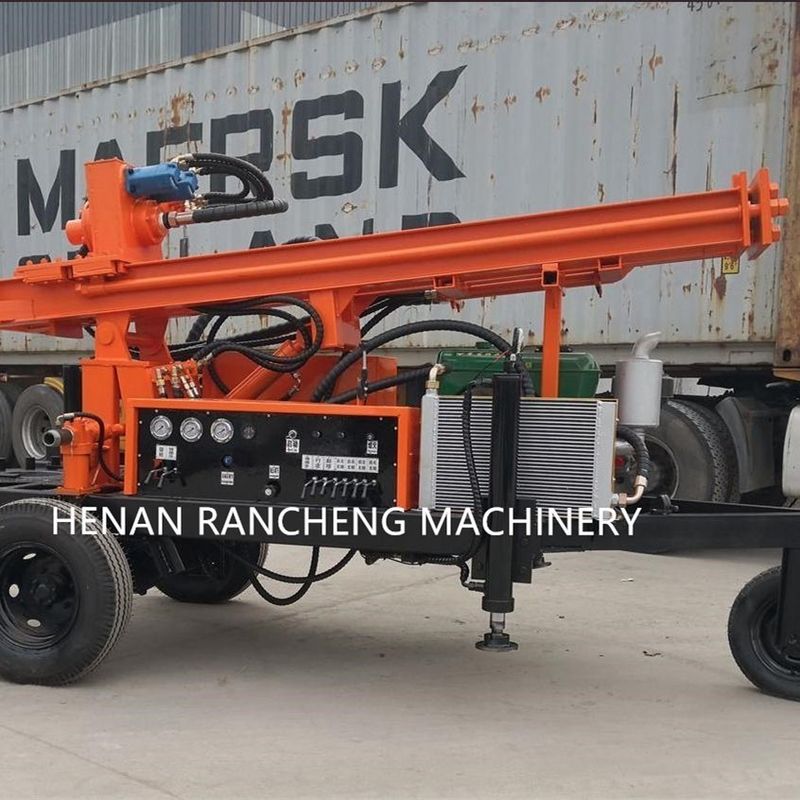

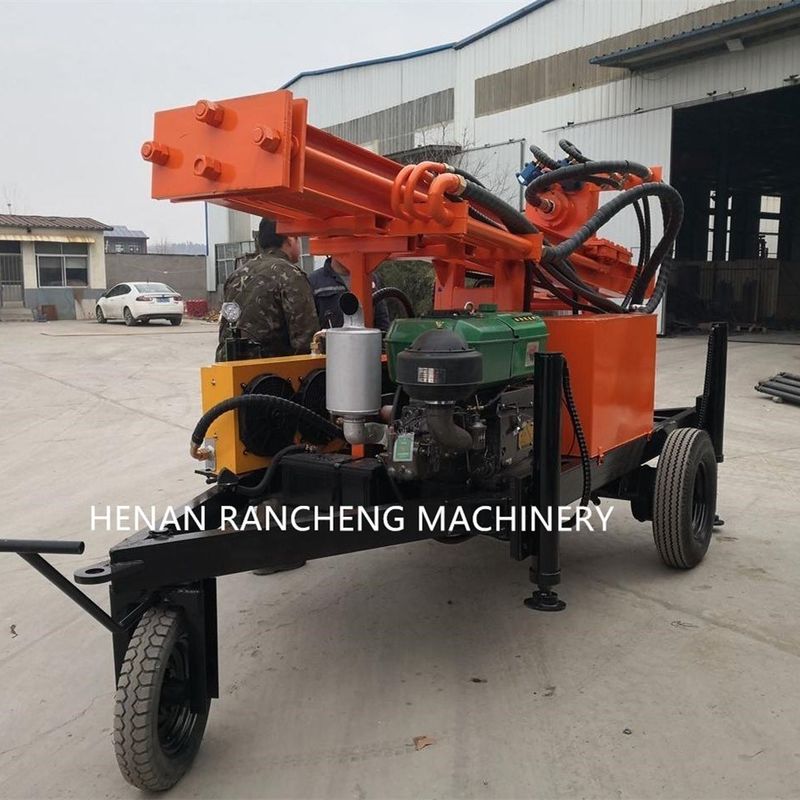

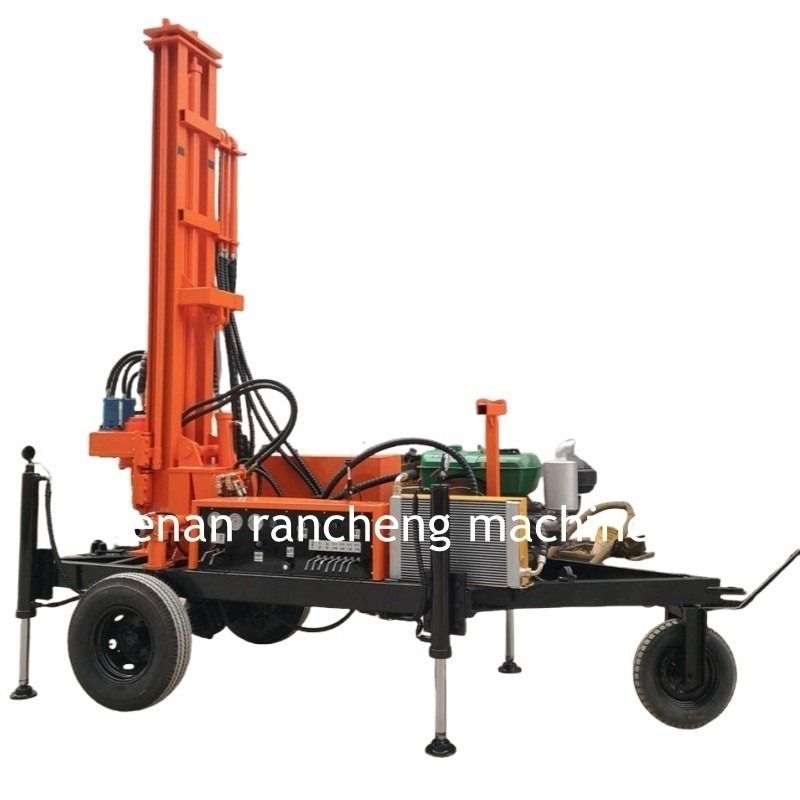

Machine Pictures
