Name: RCF220W 220m 4 Wheel Vehicle Mounted Water Well Drilling Rig For Sale Portable Wells Drilling
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF220W
Availability: InStock

Home > products > Borehole Drilling Machine >

RCF220W 220m 4 Wheel Vehicle Mounted Water Well Drilling Rig For Sale Portable Wells Drilling

Portable Wells Drilling Rig

220m Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Request A Quote

Product Details

Model:

RCF220W Wheel Type Water Well Drilling Rigs

Engine Power:

65KW Quanchai Engine

Introducing The RCF220W Water Well Drilling Rig – The Ultimate Solution For All Your Drilling Needs!:

220m

Bore Diameter（hammer）:

90-300mm

Air Consumption:

17-31m³/min

Air Pressure:

1.7-2.5Mpa

Pipe Diameter:

76mm/89mm

Highlight:

Portable Wells Drilling Rig

220m Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

RCF220W 220m 4 Wheel Vehicle Mounted Water Well Drilling Rig For Sale Portable Wells Drilling

Machine Introduction

RCF220W wheeled water well drilling rig is a lightweight, efficient and versatile drilling equipment. This water well drilling rig is mainly suitable for industrial and civil drilling, geothermal drilling, and has the advantages of compact structure, fast propulsion speed, flexible mobility and wide application range. Pneumatic drilling rigs are particularly suitable for water extraction in mountainous areas and rock formations.

This water well drilling rig is versatile and can be used with air compressors, mud pumps, and even dry hydraulic drilling methods. This drilling rig is not only designed for water well drilling. They can be used in all conditions based on hole-forming purposes.

Made of high-quality materials, stylish and compact design, our drilling rigs are more efficient, have a low failure rate, are more economical and durable, and have a high comprehensive cost-effectiveness. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	220m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Lifting force	13T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	3400-4700Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.4T
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.75×2.25M
Weight	5500Kg
Diesel engine	65KW Quanchai engine

Application

This water drilling rig is widely used in industrial and agricultural water conservancy projects, test wells and other exploration drillings. Especially for drilling geothermal heating holes, it can also meet the needs of engineering foundation reinforcement, loose gravel formation drilling and various engineering connections.

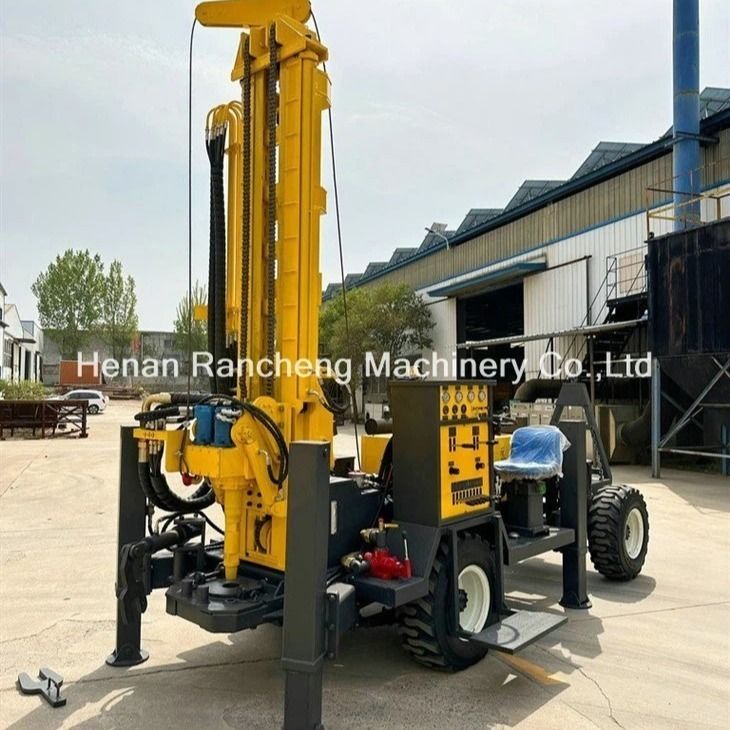

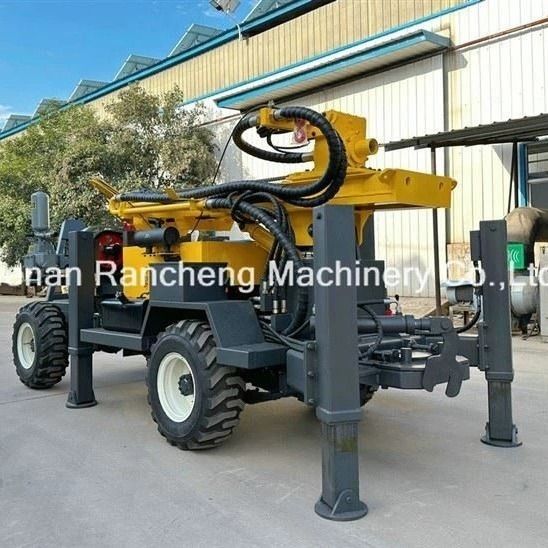

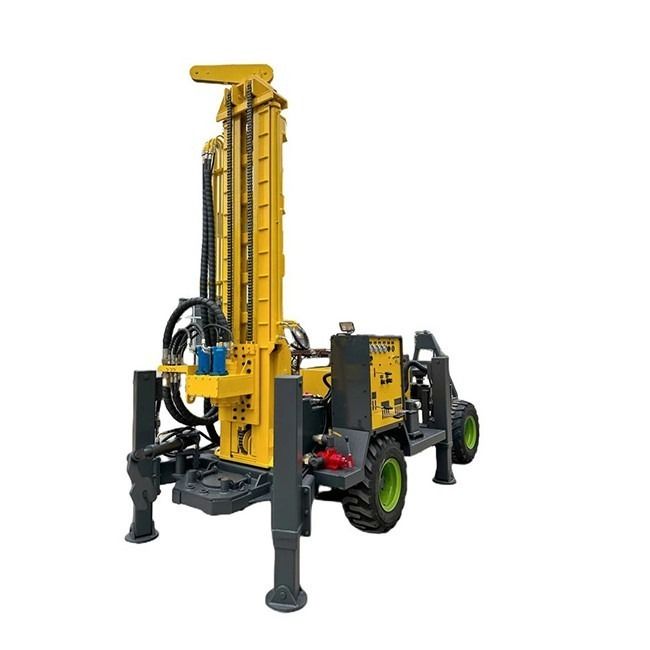

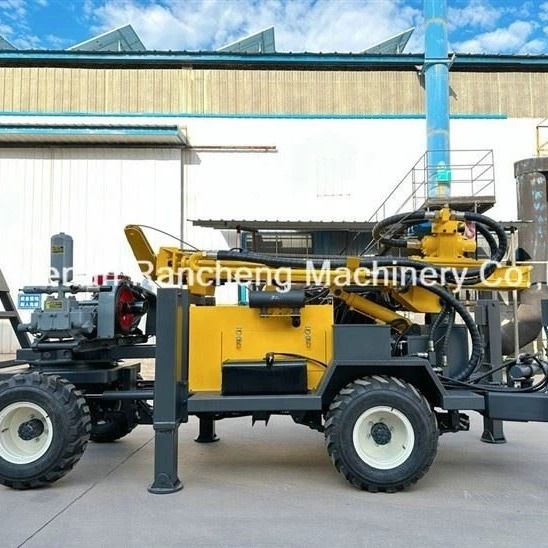

Machine Pictures
