Name: The RCF220W Wheel-type Trailer DTH Water Well Drilling Rig Powered By 65KW Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF220W
Availability: InStock

Home > products > Borehole Drilling Machine >

The RCF220W Wheel-type Trailer DTH Water Well Drilling Rig Powered By 65KW Engine

65KW DTH water well drilling rig

RCF220W DTH water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Request A Quote

Product Details

Model:

RCF220W Deep Water Well Drilling Rigs

Engine Power:

65KW Quanchai Engine

Max Drilling Depth:

220m

Drilling Way:

Both Mud Pump DTH Air Drilling

Lifting Force:

13T

Bore Diameter:

90-300mm

Highlight:

65KW DTH water well drilling rig

RCF220W DTH water well drilling rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

RCF220W 65KW Engine For Water Well Trailer Wheel Type DTH Water Well Drilling Rig

Machine Introduction

The RCF220W is a hydraulic, wheel-mounted water well drilling rig. It's a lightweight, efficient, and multifunctional machine, suitable for industrial and civil drilling, geothermal drilling, and more. It can operate with an air compressor, mud pump, or use a dry hydraulic drilling method. The rig is known for its compact structure, fast advancing, and mobile flexibility. It's made from high-quality materials, has a low failure rate, and offers high cost performance. Key features include easy and flexible full hydraulic control, top-drive slewing propulsion lift, and a high lifting force. It's powered by a 65KW Quanchai diesel engine and has a maximum drilling depth of 220 meters.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	220m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Lifting force	13T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	3400-4700Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.4T
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.75×2.25M
Weight	5500Kg
Diesel engine	65KW Quanchai engine

Machine Advantages

1.The RCF220W rig is capable of air DTH Hammer drilling and mud drilling, making it versatile for different geological conditions.

2.Its centralized control console allows for easy manipulation and control. The rapid pulling and lifting functions reduce auxiliary time and boost work efficiency.

3.The main drive system, transfer case, gearbox, double - winch unit, mud pump, turntable, drilling tower, and feed system are all mounted on the chassis, ensuring a compact and efficient design.

4.This is a hydraulic rotary drilling rig with directional circulation. It can be equipped with a BW250 mud pump, using slurry as the washing fluid. With the right drilling bit, it can drill in clay, sand, and rock formations.

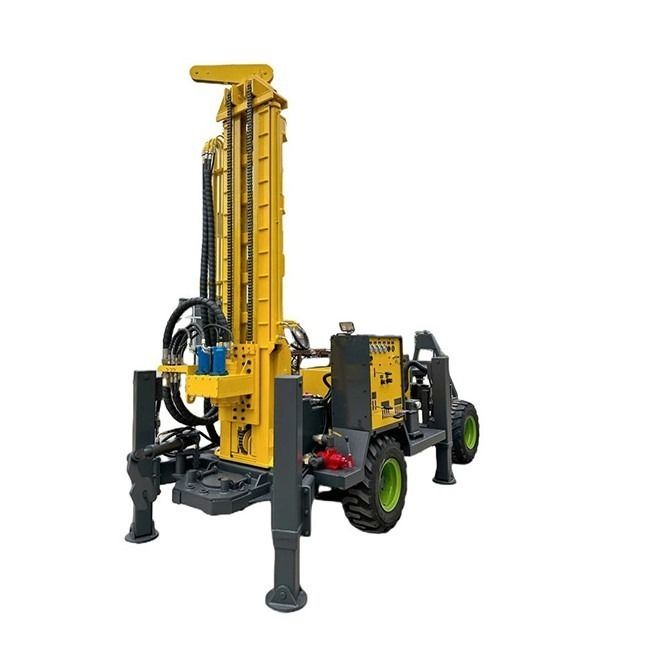

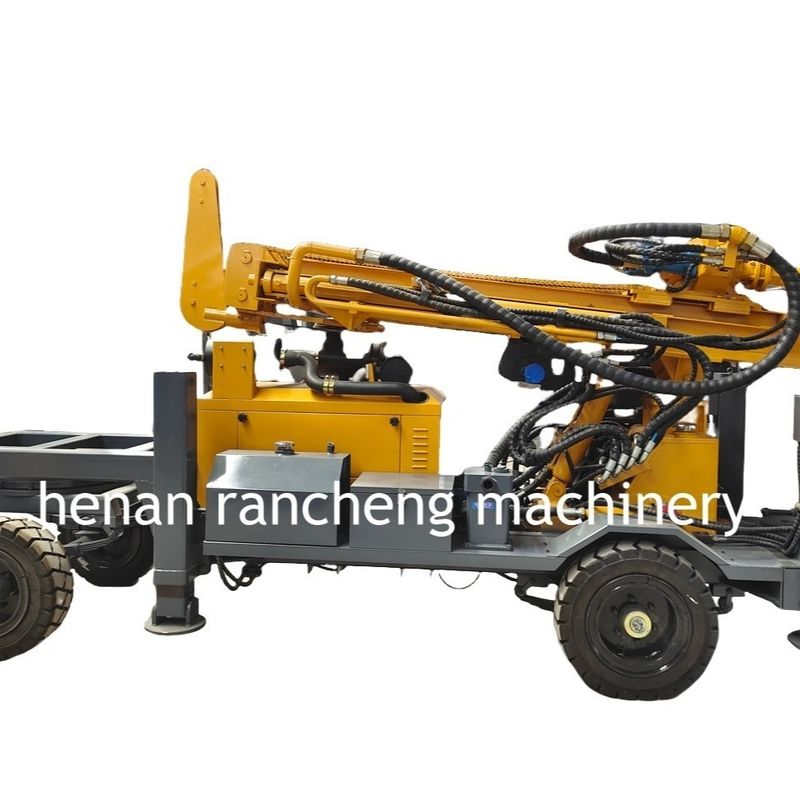

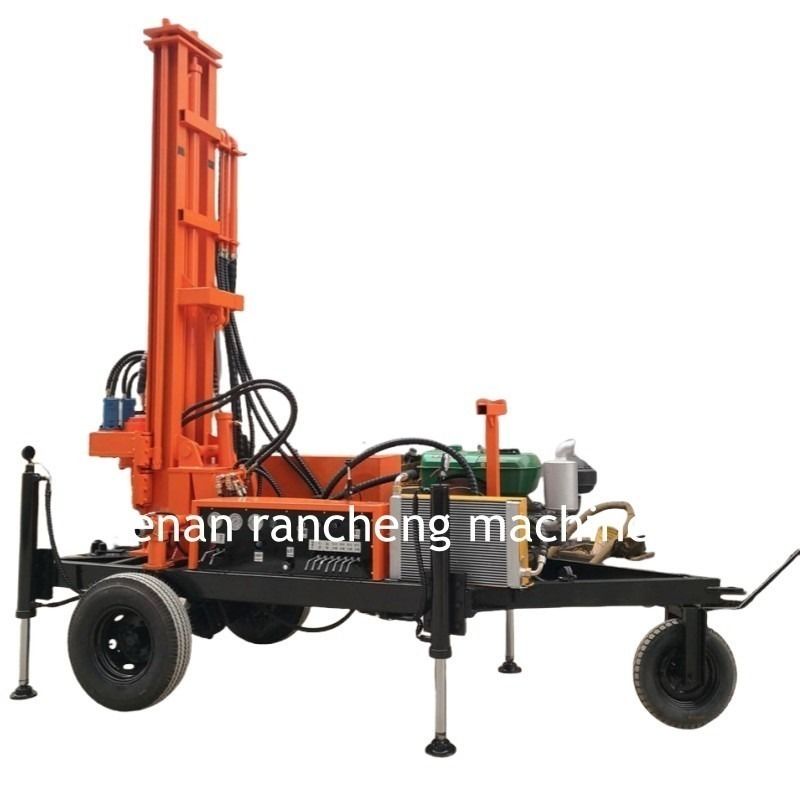

Machine Pictures
