200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power

200m Hydraulic Water Well Drilling Machine

40HP Hydraulic Water Well Drilling Machine

Tractor Hydraulic Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Contact Us
Request A Quote
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power 200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power 200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power 200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power
Product Details
Name:
Borehole Drilling Machine
Model:
RCF200WT
Hole Diameter:
140-254mm
Depth:
200m
Air Consumption (m^3/min):
17 - 30
Tractor Horse Power (hp):
40
Highlight:

200m Hydraulic Water Well Drilling Machine

,

40HP Hydraulic Water Well Drilling Machine

,

Tractor Hydraulic Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price RCF220W Borehole Drilling Machine for Hydrology Wells Supplies online Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells online Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price
Contact Us
Contact Now
Product Description

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power



Machine Introduction



RCF200WT tractor-mounted deepwater drilling rig is a product independently developed by our company. The new generation of DTH plays an important role in achieving faster drilling speed and higher aerodynamics.



The water well drilling rig produced by our company adopts the latest model and advanced hydropower technology, with the characteristics of low consumption, large rotary torque, good hole inclination, etc. It is mainly used in resource exploration projects and hydrological wells, civil water wells, agricultural irrigation, etc. for drilling.



The drilling rigs produced by our company adopt high-quality materials, modern and compact design, higher efficiency, lower failure rate, economical and durable, and high comprehensive cost performance. Due to the positive feedback from most customers, our water drilling rigs have gained real market recognition.



Technical Parameters



Model RCF200WT
Weight (t) 4
Hole Diameter (mm) 140 - 254
Depth (m) 200
Feed Stroke (mm) 2000
Travelling Speed (km/h) 30
Climbing Angle 25 Degree
Tractor Horse Power (hp) 40
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 30
Rod Diameter (mm) 76 & 89
Rod Length (mm) 2000
Lifting Force (t) 12
Rotation Speed (rpm) 45 -65
Output Torque (n.m) 4500 -5000
Dimension (mm) 3400*1500*2200



Machine Advantages



1,it drill max 200m depth and 90-245mm diameter



2,it is top head driving ,work with both mud pump and air compressor



3,it use 1.5m lenght drill rod ,76 or 89mm



4,full hydraulic system operation ,famous brand hydraulic system and hydraulic motor ,with stable performance and good quality ,easy to operate and maintainance

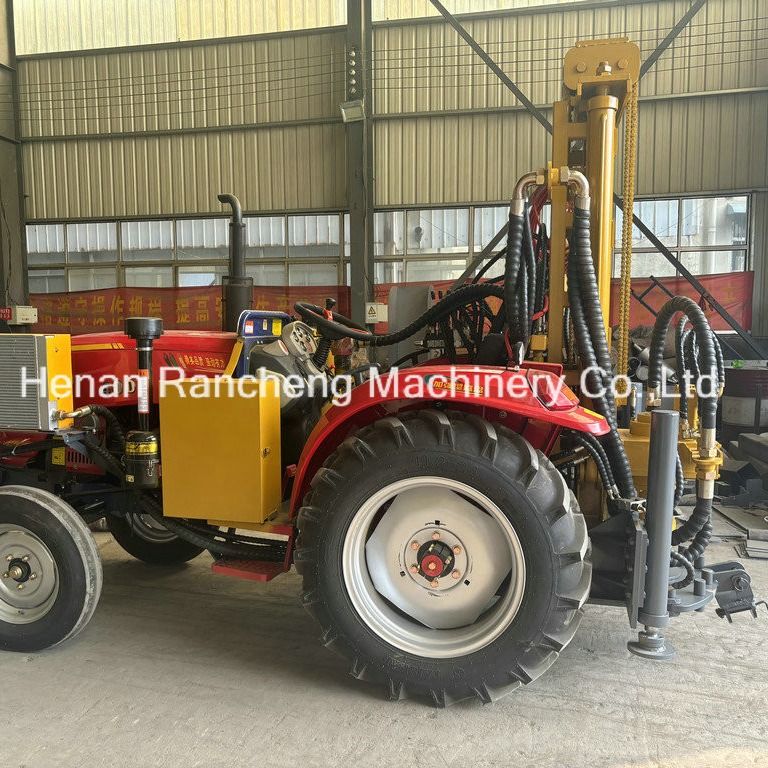

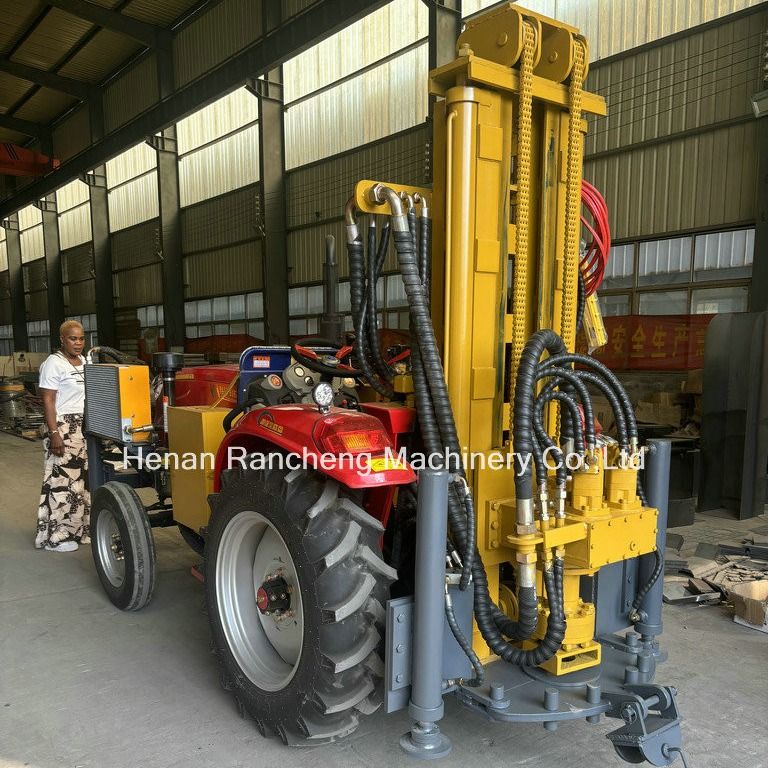

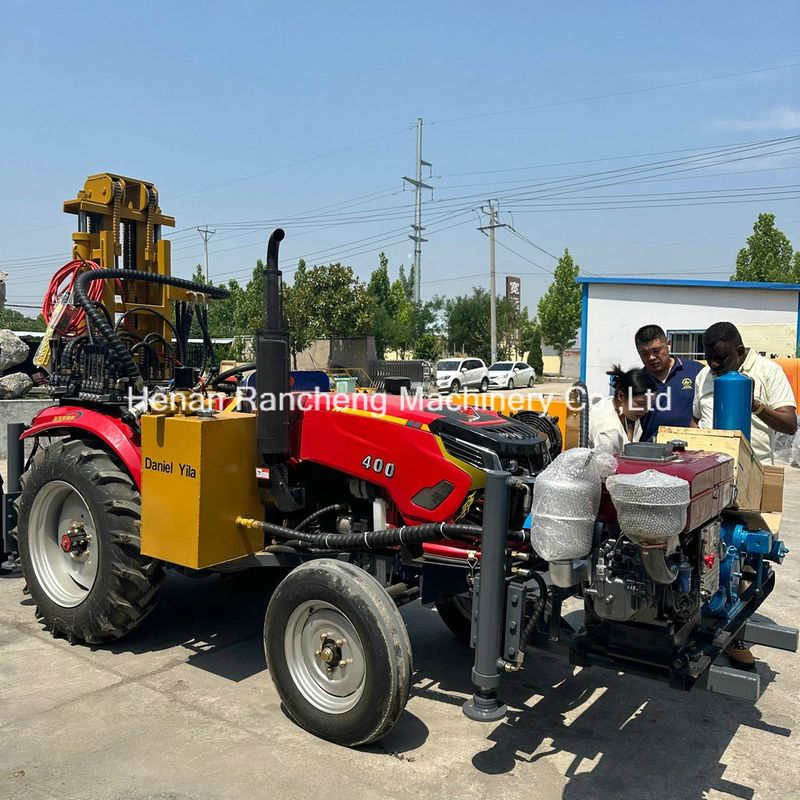

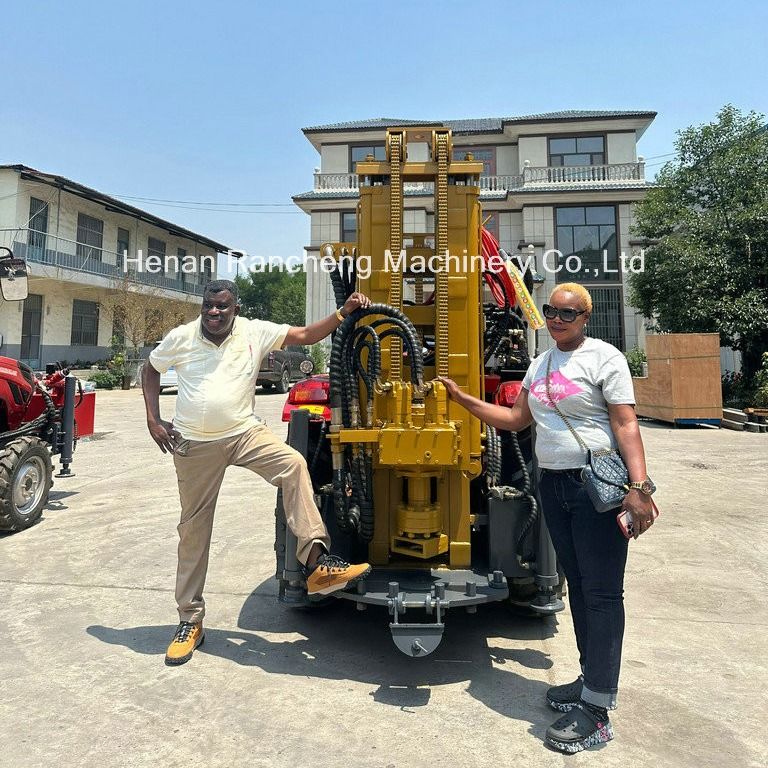

Machine Pictures



200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power 0

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power 1200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power 2

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power 3

200m Hydraulic Water Well Drilling Machine With 40HP Tractor Horse Power 4
