150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig

150m DTH Hydraulic Drilling Rig

Pneumatic Tractor Mounted Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC150WT

Contact Us
Request A Quote
150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig
150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig 150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig 150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig 150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig
Product Details
Name:
Trailer Type Borehole Drilling Machine
Model:
RC150WT
Drilling Depth:
40-150m
Drilling Caliber:
100-400mm
Weight:
1800kg
Electrical Motor of Rotary Head:
7.5KW
Highlight:

150m DTH Hydraulic Drilling Rig

,

Pneumatic Tractor Mounted Drilling Rig

Payment & Shipping Terms
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price RCF220W Borehole Drilling Machine for Hydrology Wells Supplies online Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells online Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price
Contact Us
Contact Now
Product Description

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig



Machine Introduction



The RC150WT tractor mounted drilling rig adopts advanced top drive technology, vibration technology, and full hydraulic control, which saves 50% energy compared with similar drilling rigs. The drilling rig has no complicated mechanical operating handles, compact structure, sturdy and durable, and does not need to be disassembled during transportation. It has fast drilling speed, strong stability, and high vertical drilling accuracy.



The power head adopts a vibration-combined gear reducer with large torque; when encountering hard rock, the vibration function can be used to increase the drilling speed. It is an ideal drilling equipment for domestic and foreign users.



Technical Parameters



Drilling Capability Drilling Caliber Drilling Depth
100-400mm 40-150m
Drilling Speed in Soft Stratum 40-50 m/h
Electrical Motor of Rotary Head 7.5kw
Diesel Engine of Tractor 36HP
Power of Generator 30Kw
Sewage Pump 5.5kw/7.5Kw
Speed of Lifting Drill Pipe 30 m/min
Max. Lifting Weight 1 ton
Dimension (L*W*H) 3400*1350*2200mm
Weight 1800KG





Machine application



This machine is suitable for the soil, sand, rock, gravel, weathering rock, construction precipitation, geothermal heat, industrial and agricultural water wells, family use well drilling projects and so on.

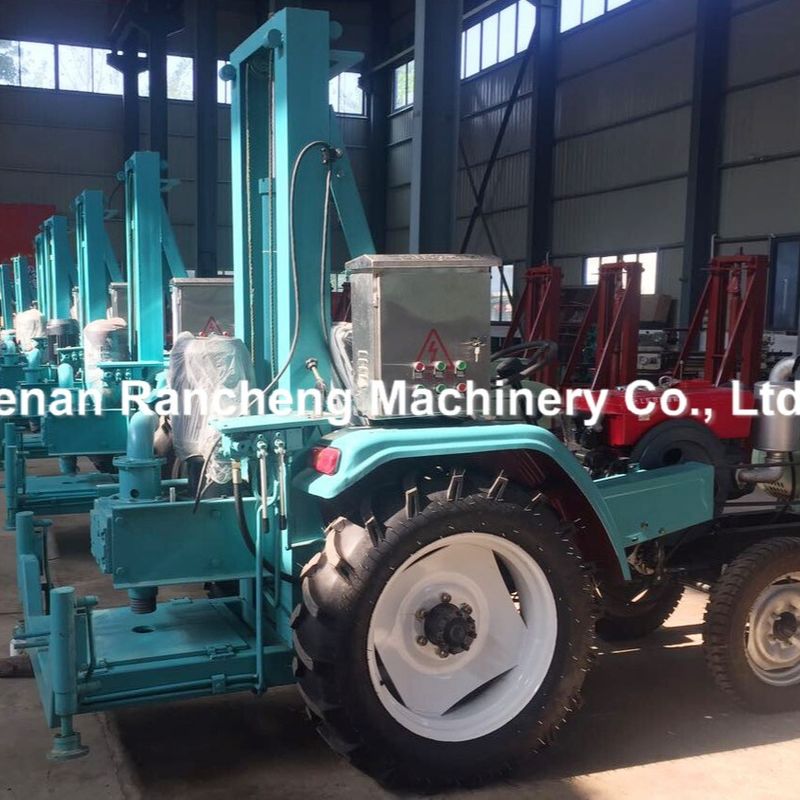

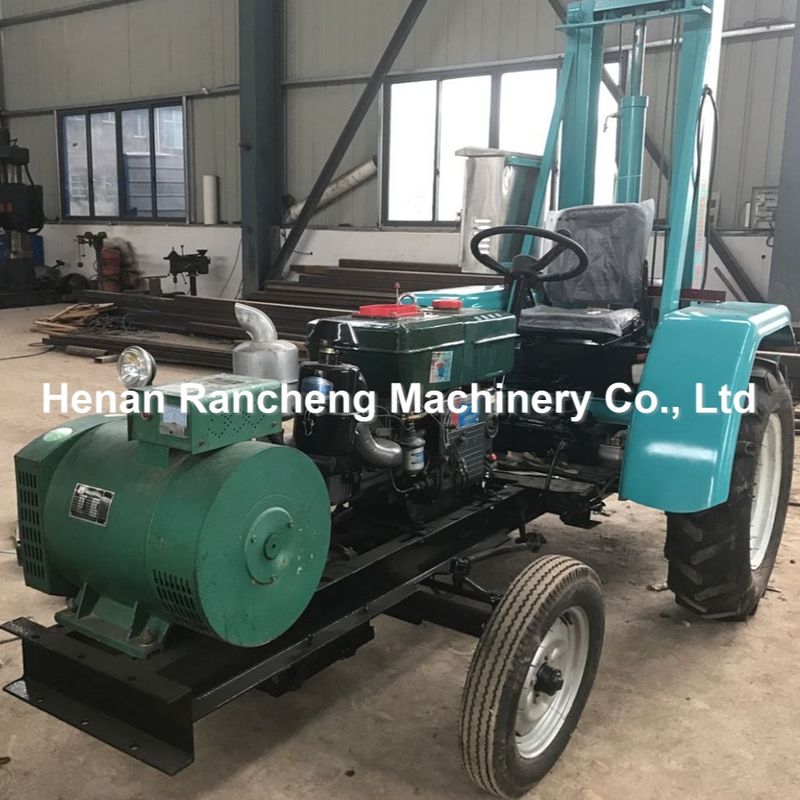

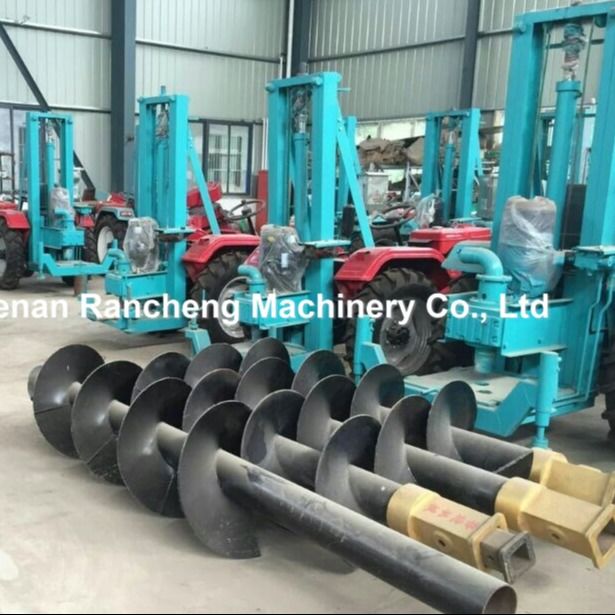

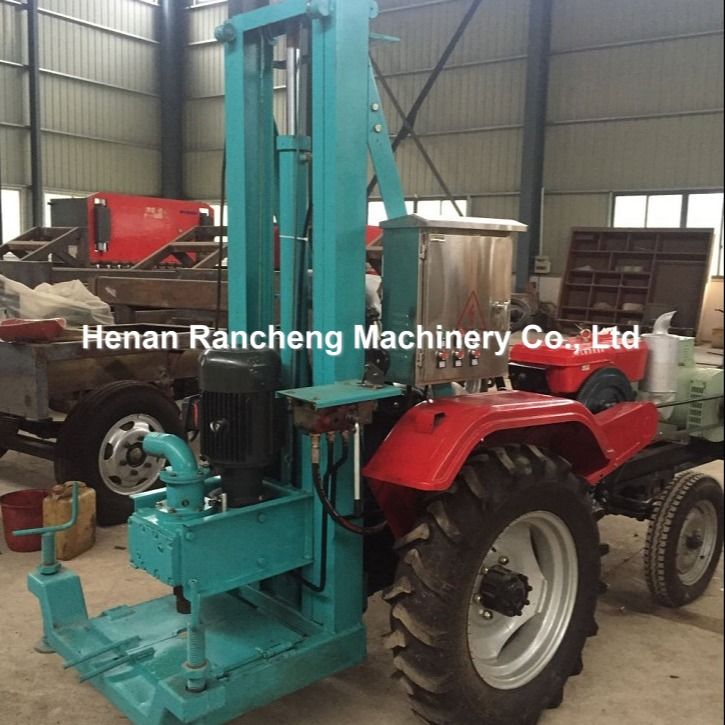

Machine Pictures



150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig 0150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig 1150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig 2150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig 3
