Tractor-mounted, four-wheel, high-power drilling rig for 200/260m, 254mm water well drilling.

Tractor-mounted, four-wheel, high-power drilling rig for 200/260m, 254mm water well drilling.

254mm water well drilling rig

200/260m drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Contact Us
Request A Quote
Product Details
Name:
Borehole Drilling Machine
Model:
RCF200WT
Hole Diameter:
140-254mm
Depth:
200m
Weight:
4T
Dimension:
3400*1500*2200mm
Highlight:

254mm water well drilling rig

,

200/260m drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200/260m 254mm Tractor Mounted Four Wheels Big Power Water Well Drilling Rig



Machine Introduction



The RCF200WT drilling rig is engineered to tackle challenging terrains with its reinforced four-wheel drive system and specialized off-road tires, delivering superior traction in muddy environments. Hydraulic support cylinders enhance operational stability, effectively preventing drill bit detachment during operation. Featuring a dual water-gas power configuration, this rig dynamically adapts to geological variations by switching between mud pumps and air compressors. Recent system upgrades now enable remote operation of core functions including drilling activation, hoisting control, feed adjustment, and gas supply management through integrated digital interfaces.


Technical Parameters


Model RCF200WT
Weight (t) 4
Hole Diameter (mm) 140 - 254
Depth (m) 200
Feed Stroke (mm) 2000
Travelling Speed (km/h) 30
Climbing Angle 25 Degree
Tractor Horse Power (hp) 40
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 30
Rod Diameter (mm) 76 & 89
Rod Length (mm) 2000
Lifting Force (t) 12
Rotation Speed (rpm) 45 -65
Output Torque (n.m) 4500 -5000
Dimension (mm) 3400*1500*2200


Machine Advantages



1.The drilling rig's high-torque, high-power setup, combined with its rational structural layout and advanced operational controls, ensures efficient operations.



2.Equipped with a low-emission diesel engine featuring professional noise reduction technology, the rig demonstrates full compliance with diverse worksite requirements.



3.The unit boasts an aesthetically streamlined profile, compact dimensions, dependable functionality, and versatile maneuverability; these characteristics establish it as the preferred solution for mid-scale projects within China's tractor-mounted drilling rig sector.


FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.


Q: How long does it take to produce?

A:Normally, our production takes about 15 days.


Machine Pictures

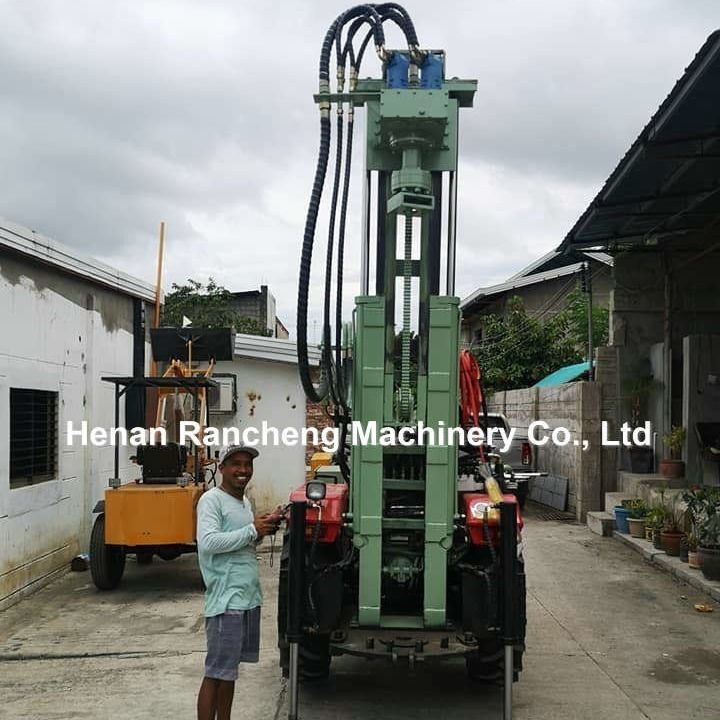

Tractor-mounted, four-wheel, high-power drilling rig for 200/260m, 254mm water well drilling. 0

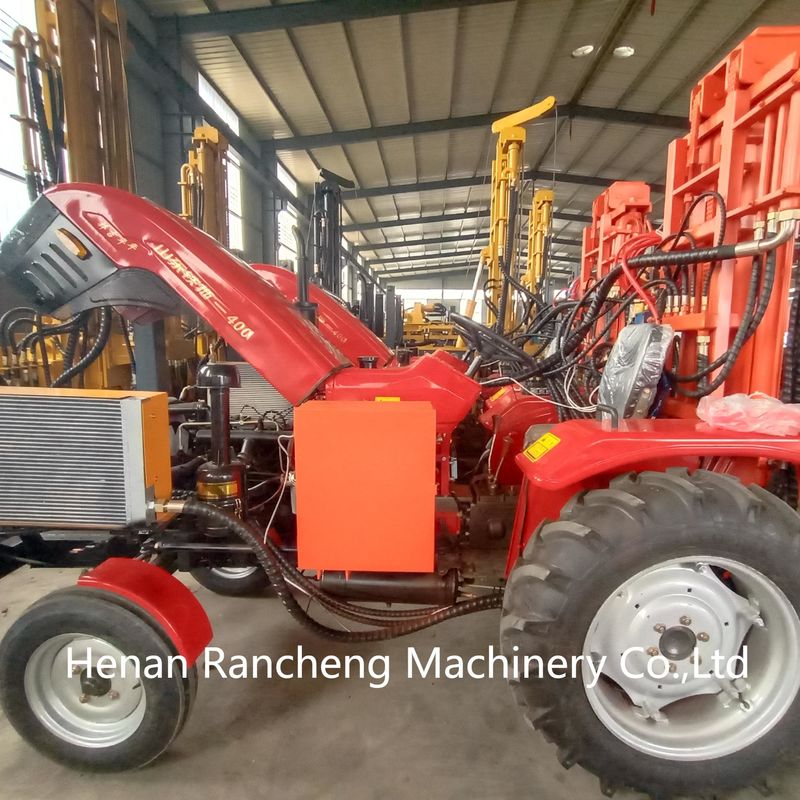

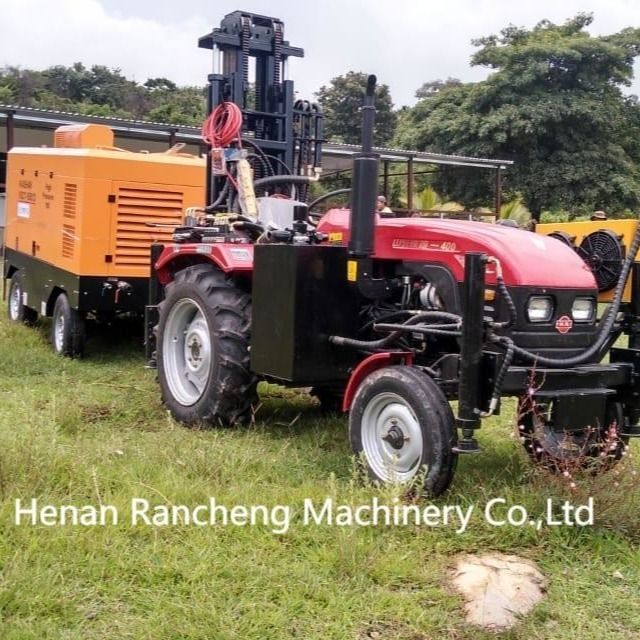

Tractor-mounted, four-wheel, high-power drilling rig for 200/260m, 254mm water well drilling. 1Tractor-mounted, four-wheel, high-power drilling rig for 200/260m, 254mm water well drilling. 2

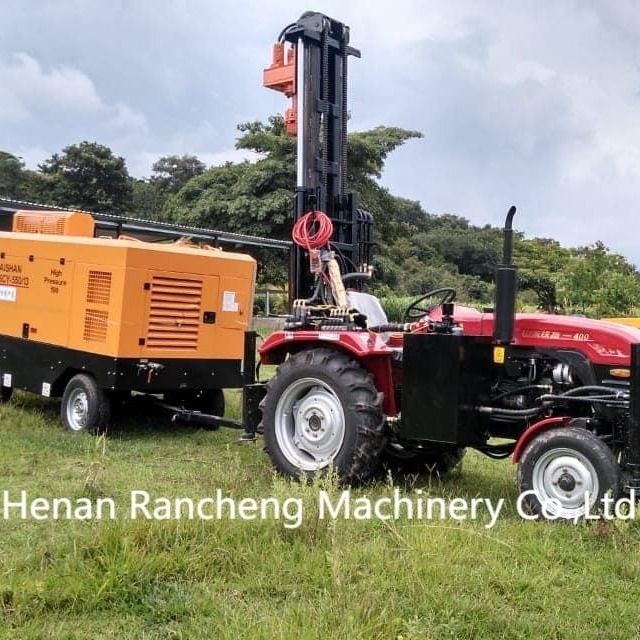

Tractor-mounted, four-wheel, high-power drilling rig for 200/260m, 254mm water well drilling. 3
