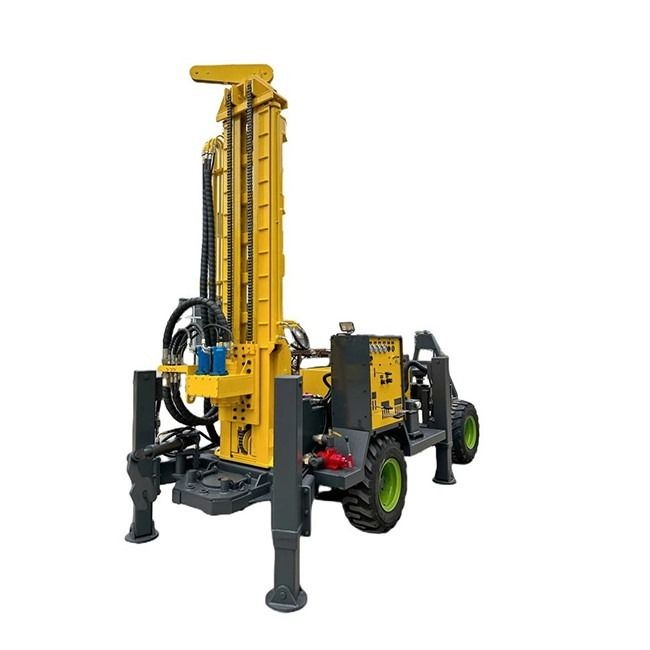

RCF220W Ultimate Borehole Drilling Machine for Industrial Civil Drilling

RCF220W Ultimate Borehole Drilling Machine for Industrial Civil Drilling

Ultimate Borehole Drilling Machine

Industrial Borehole Drilling Machine

Civil Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Contact Us
Request A Quote
Product Details
Model:
RCF220W Deep Water Well Drilling Rigs
Engine Power:
65KW Quanchai Engine
Max Drilling Depth:
220m
Lifting Force:
13T
Lifting Speed:
2.5m/min
Bore Diameter:
90-300mm
Highlight:

Ultimate Borehole Drilling Machine

,

Industrial Borehole Drilling Machine

,

Civil Borehole Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCF220W Ultimate Borehole Drilling Machine for Industrial Civil Drilling Needs



Machine Introduction





The RCF220W wheeled water well drilling rig is a modern drilling solution that integrates lightweight design, efficient operation and multifunctional application. As an ideal choice for industrial drilling, civil water extraction and geothermal development, the equipment has shown significant advantages in various complex working conditions with its sophisticated structural layout, excellent drilling speed and excellent site adaptability.

The use of high-strength alloy materials and ergonomic compact design not only improves the appearance of the equipment, but also achieves excellent performance with a 30% increase in operating efficiency and a 25% reduction in maintenance costs. After actual verification in thousands of engineering projects around the world, its reliable durability and excellent economy have won unanimous praise from industry users and become a widely trusted and cost-effective choice in the drilling field.




Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages



1. This rig adopts hydraulic system, large torque, high drilling efficiency.


2. The propulsion and lifting use hydraulic cylinders to drive the plate chain transmission, large power, strong torque, powerful drilling in soil, sand, hard rock and other complex geological conditions.


3. the tower assembly has a hydraulic compensation mechanism, the tower supported on the ground when drilling, with greater bearing capacity and higher stability.


4. The front outrigger adopts a telescopic structure, which has a large span during construction and high stability of the drilling rig.


5. this rig is hydraulic drive, mounted on four wheels, very convenient for moving and transportation.


Machine Pictures

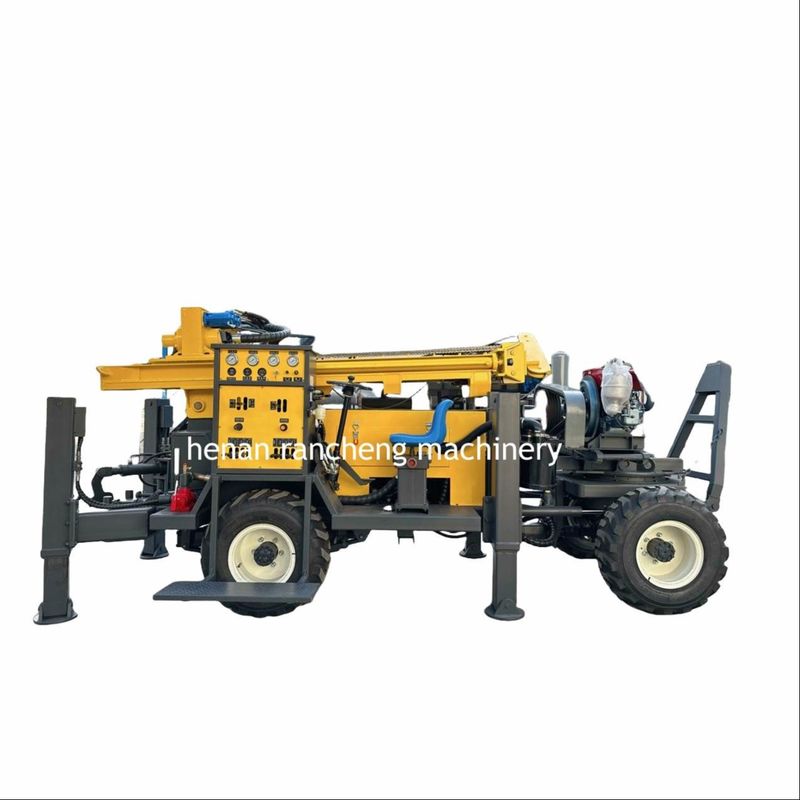

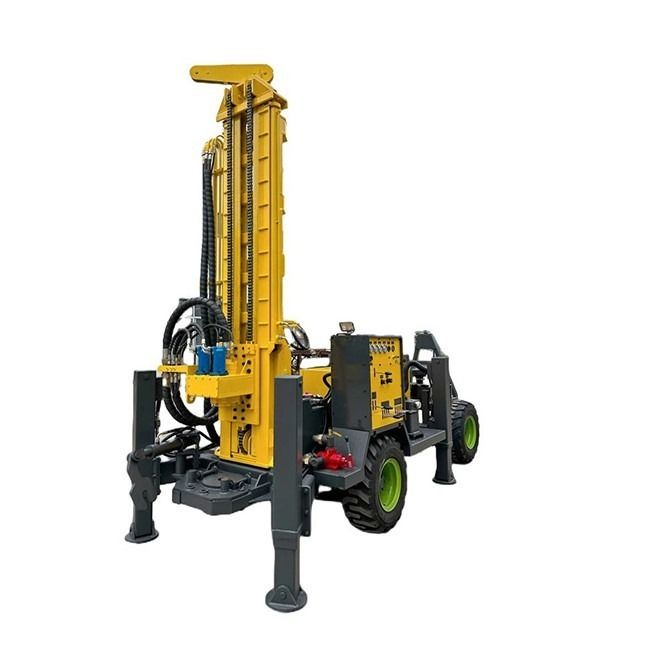

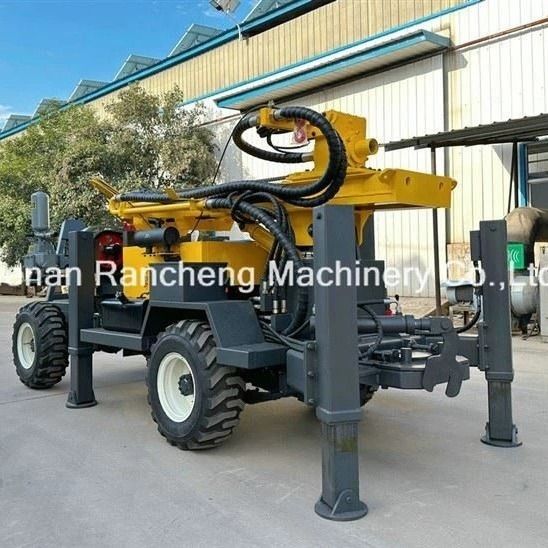

RCF220W Ultimate Borehole Drilling Machine for Industrial  Civil Drilling 0RCF220W Ultimate Borehole Drilling Machine for Industrial  Civil Drilling 1RCF220W Ultimate Borehole Drilling Machine for Industrial  Civil Drilling 2
