Name: 260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF260W
Availability: InStock

Home > products > Borehole Drilling Machine >

260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment

Trailer Mounted Water Well Drilling Rig

Mining Machinery Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF260W

Request A Quote

Product Details

Name:

Hydraulic Wheel Mounted Water Well Drilling Rig

Model:

RCF260W

Bore Diameter（hammer）:

90-350mm

Air Consumption:

17-35m³/min

Air Pressure:

1.7-3.0Mpa

Pipe Diameter:

76mm/89mm

Highlight:

Trailer Mounted Water Well Drilling Rig

Mining Machinery Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment

Machine Introduction

RCF260W wheel mounted water well drilling rig is a lightweight, efficient and multifunctional drilling equipment,

This water drilling drilling rig is multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

Technical Parameters

Bore diameter(hammer)	90-350mm
Bore depth	260m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Push force	4T
Lifting force	15T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	4000-5300Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.5T
Mud Pump flow	20L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.85×2.3M
Weight	6500Kg
Diesel engine	70KW engine

Application

The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

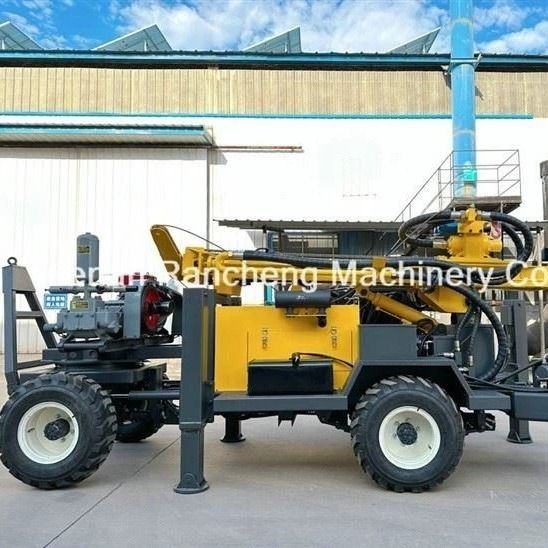

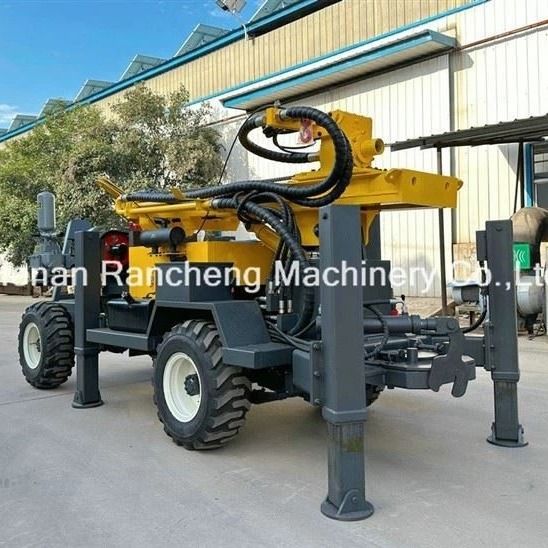

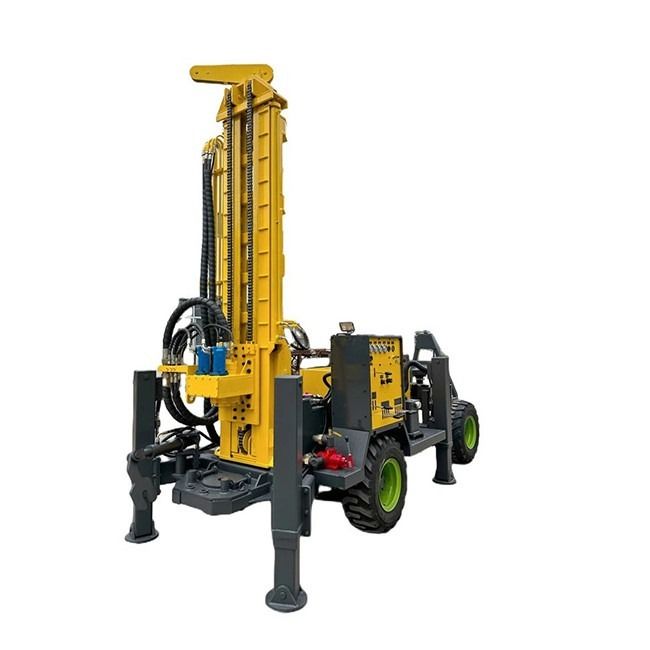

Machine Pictures

260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment 0
