RCF220W Wheel Type Drilling Rig with 13T Lifting Force

RCF220W Wheel Type Drilling Rig with 13T Lifting Force

Machine Introduction


The RCF220W wheeled water well drilling rig is a lightweight, highly maneuverable multifunctional drilling equipment designed for industrial water wells, civil water extraction and geothermal development projects. Its innovative wheeled chassis structure gives the equipment excellent transfer capabilities, making it particularly suitable for drilling operations in complex terrain conditions. This model performs outstandingly in rock drilling, and uses pneumatic impact drilling technology, which can efficiently penetrate hard rock formations, making it a good choice for drilling in mountainous areas. The integrated design of the equipment enables rapid deployment, and the optimization of the hydraulic system brings significant improvements in drilling efficiency, making it widely applicable to water resource development needs under different geological conditions.

Technical Parameters


Machine Advantages


1. This rig adopts hydraulic system, large torque, high drilling efficiency.

2. The propulsion and lifting use hydraulic cylinders to drive the plate chain transmission, large power, strong torque, powerful drilling in soil, sand, hard rock and other complex geological conditions.

3. the tower assembly has a hydraulic compensation mechanism, the tower supported on the ground when drilling, with greater bearing capacity and higher stability.

4. The front outrigger adopts a telescopic structure, which has a large span during construction and high stability of the drilling rig.

5. this rig is hydraulic drive, mounted on four wheels, very convenient for moving and transportation.

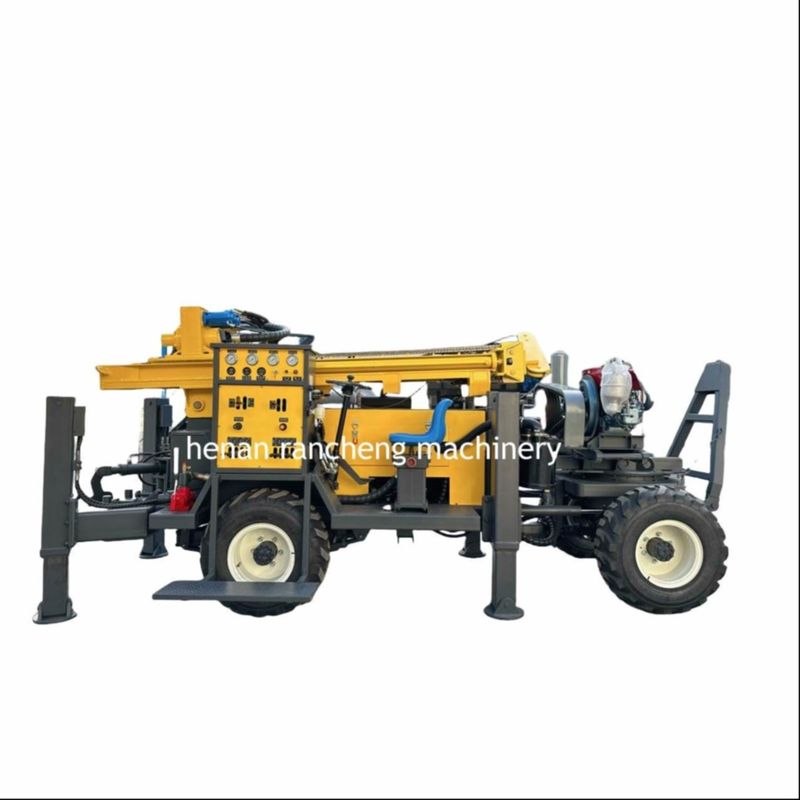

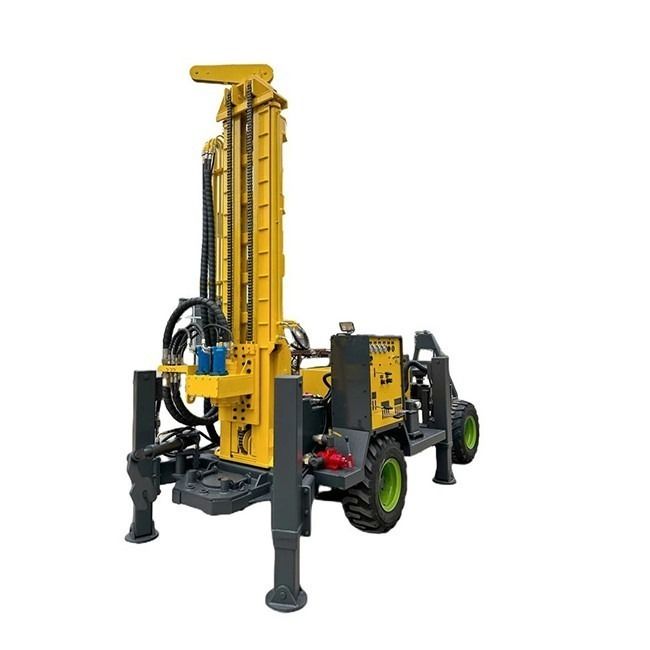

Machine Pictures
