RCZ-22J All Hydraulic Tunneling Jumbo Drilling Rig 3880mm Drilling Depth With 93KW / 125HP Diesel Engine Power

RCZ-22J All Hydraulic Tunneling Jumbo Drilling Rig 3880mm Drilling Depth With 93KW / 125HP Diesel Engine Power

93KW Tunneling Jumbo Drilling Rig

125HP Tunneling Jumbo Drilling Rig

3880mm Tunneling Jumbo Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCZ-22J

Contact Us
Request A Quote
Product Details
Model:
RCZ-22J
Hole Range:
38-100 Mm
Drilling Depth:
3880mm
Maximum Working Area:
70 M2
Drill Hole Speed:
0.8-2m/min
Highlight:

93KW Tunneling Jumbo Drilling Rig

,

125HP Tunneling Jumbo Drilling Rig

,

3880mm Tunneling Jumbo Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCZ-22J All Hydraulic Tunneling Jumbo Drilling Rig 3880mm Drilling Depth With 93KW/125HP Diesel Engine Power



Machine Introduction



RCZ-22J All-hydraulic Tunneling Jumbo Drilling rig equipped with environment friendly diesel engine to drive traveling and positioning, electrical motor to drive drilling operation, the dual power configuration allows the rig for fast maneuverability and zero emission with very low noise level of drilling operation. The rig is also equipped with high efficiency hydraulic drifter and heavy duty floating and steady combo boom drilling system, with high accurate automatic horizontal positioning and 360 rotating function, which allows the rig to finish 35 m2 face drilling coverage in one operation and also can be used for bolting and many other applications.

.



Technical Parameters



Hole range 38-100 mm Rod size 4305 mm
Drilling depth 3880mm Maximum working area 70 m2
Section size 11.5m X 7.5m Drill hole speed 0.8-2m/min
Electric motor power 2X75KW capacity of tank 250L
Dimension 12800X2140X2480/3180mm Machine weight 14.5T
Drifter
model YHD210 Rotary Pros and Cons 180°
swing arm Lift and right 40° Travel compensation 1500mm
Main arm travel 1500mm Sliding rail angle 90°
Compressor
Air compressor
Pressure 0.2-0.8Mpa Capacity F.A.D 0.32 m3/min
Electric motor power 2.2KW / /
Water supply
flow 100L/min pressure 0.2-0.8Mpa
Electric motor Power 3.5 kW Voltage 380 V
Electric appliance
storage battery 2X12V Road lighting 24V
Working lighting 24V / /
chassis
Diesel engine power 125HP/93KW veer ±40°
tire 12.0XR20 Gradeability ≤15°
Rear-axle swinging Angle ±7° Approach/departure angle 17° /14°
the radius of the turning circle 3.3m/6.95m Tramming Speed 10km/h
Ground Clearance 250mm Fuel tank 60L



Machine Advantages


1. Feed beam: The heavy-duty aluminum alloy feed beam has high bending, torsion and corrosion resistance, ensuring the long service life of the feed beam. The surface of the feed beam is wrapped with stainless steel plate, and PTFE anti-wear lining is used between the moving parts to further extend the service life of the feed system.
2. Rock drill: The 104M rock drill adopts a double shock absorption system to ensure the best service life of the rock drilling tools. The pressurized oil film protects and lubricates the surface of all moving parts, reducing the internal wear of the rock drill.
3. Safety cover: The FOPS safety cover design has a lifting function, which can effectively prevent falling objects.
4. Large-capacity cable reel: The large-capacity cable reel can achieve a travel of 70 meters without removing the cable.
5. Positioning legs: Four heavy-duty telescopic hydraulic legs ensure precise positioning and stability during drilling.
6. Console: The highly integrated system and centralized layout design make operation easier and simpler.
7. Braking system: The dual braking system is specially designed and developed for underground working environment. In addition to the wet brakes on the front and rear axle wheels, it also adds the front axle spindle wet brake and the rear axle closed hydraulic parking brake and emergency stop brake.



Machine Pictures

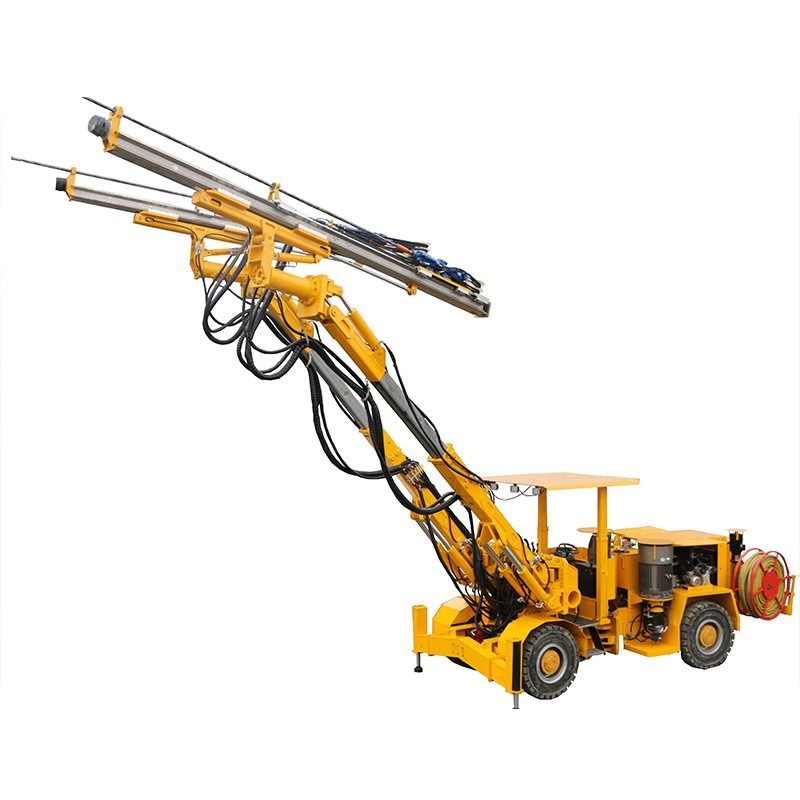

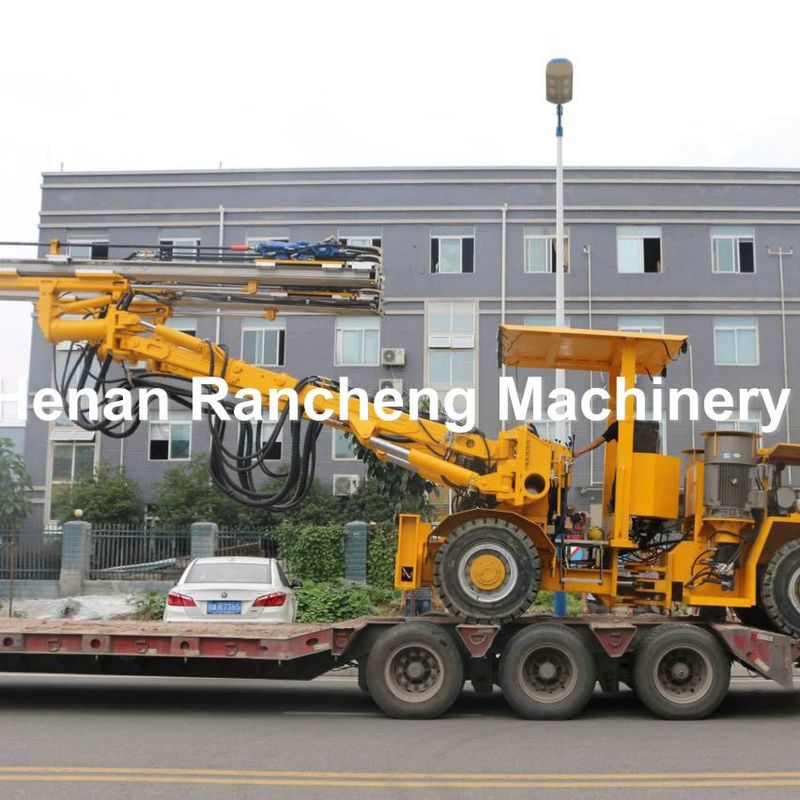

RCZ-22J All Hydraulic Tunneling Jumbo Drilling Rig 3880mm Drilling Depth With 93KW / 125HP Diesel Engine Power 0

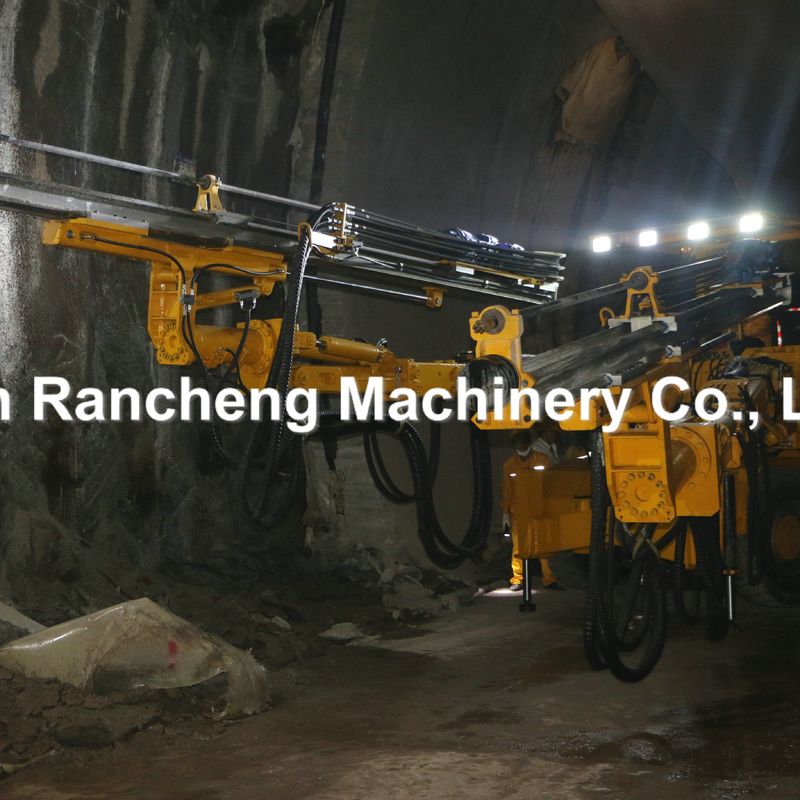

RCZ-22J All Hydraulic Tunneling Jumbo Drilling Rig 3880mm Drilling Depth With 93KW / 125HP Diesel Engine Power 1

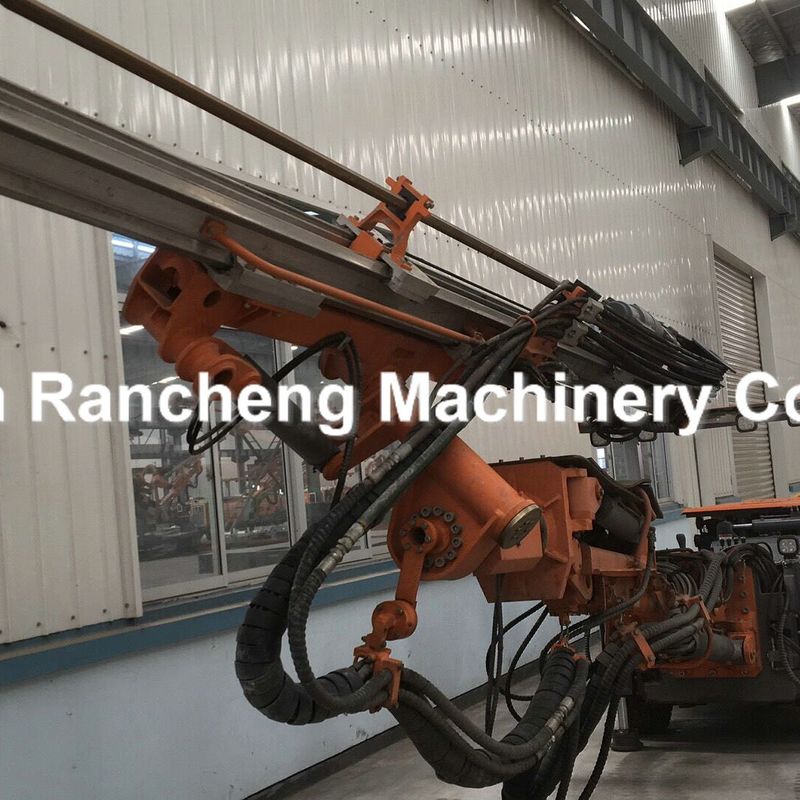

RCZ-22J All Hydraulic Tunneling Jumbo Drilling Rig 3880mm Drilling Depth With 93KW / 125HP Diesel Engine Power 2
