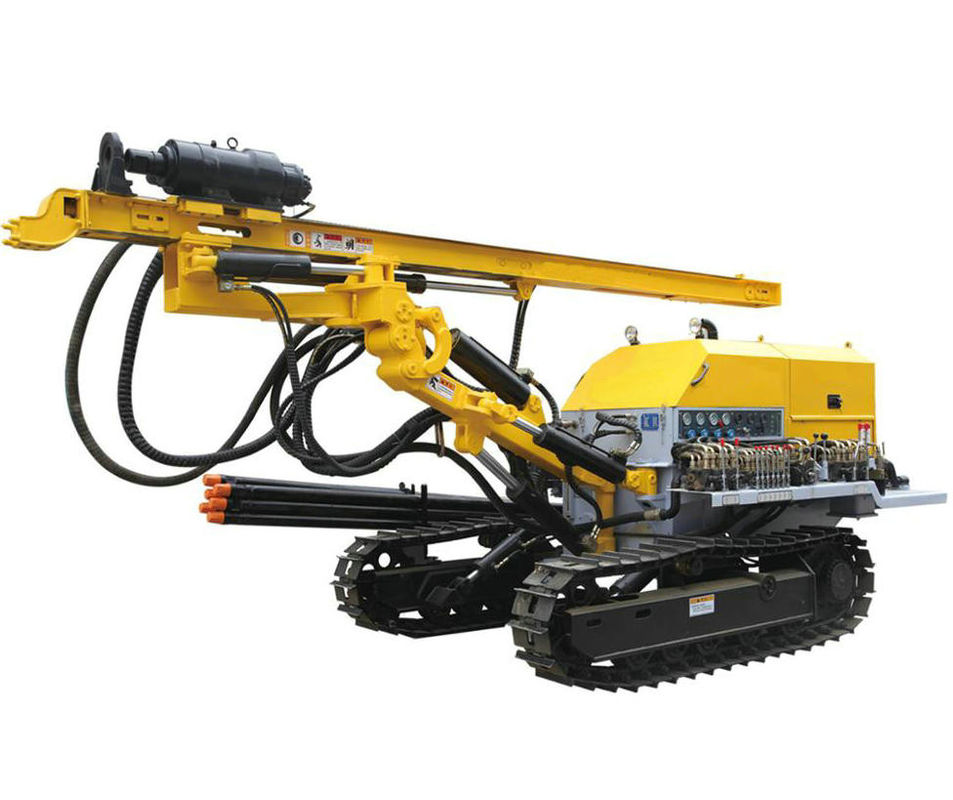

Hydraulic Crawler Engineering Anchor Drilling Rig 60m Depth 76HP Diesel Engine

Hydraulic Crawler Engineering Anchor Drilling Rig 60m Depth 76HP Diesel Engine

anchor drilling rig 60m

hydraulic anchor drilling rig

Hydraulic Crawler Drilling Rig 76HP

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC140Y

Contact Us
Request A Quote
Product Details
Name:
Engineering Drilling Rig
Model:
RC140Y
Drilling Diamete:
115---150mm
Drilling Depth:
Down 62m
Dimension (L * W * H):
5270*1950*2400mm
Total Weight:
4800kg
Highlight:

anchor drilling rig 60m

,

hydraulic anchor drilling rig

,

Hydraulic Crawler Drilling Rig 76HP

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

60m Depth Hydraulic Crawler Anchor Engineering Drilling Rig 76HP Diesel Engine



Product Description



The RC140Y Hydraulic underhole anchoring rig is an efficient, versatile rig designed for construction and infrastructure anchoring tasks in harsh geological conditions. It is capable of handling different types of rock and soil, with a maximum drilling depth of 56 meters and aperture ranging from 78 to 253 mm. Equipped with high - torque Cummins or Yuchai engines and advanced hydraulic systems, it automatically controls weight on bit, speed and depth, reducing operator intervention and ensuring stable drilling and anchoring operations.



The RC140Y rig has high drilling speeds of up to 35 m / h in sand and 12 m / h in hard rock. It is easy to operate, has a highly automated and intuitive control interface, and is easy to maintain. The new twin motor turret design provides a powerful rotary torque output for large outdoor hole blasting drilling projects. Its mobility, flexibility and climbing ability make it suitable for rugged sites and easy to drill and transfer. The RC140Y hydraulic drilling rig is suitable for a variety of drilling projects, including open pit mines, quarries, roads, water conservancy, power station construction, etc., because of its efficient, flexible and multi-functional characteristics, it is favored by construction contractors around the world.



Product Specifications



Wind pressure(Mpa) 1.2—2.46
Air consumption(m³/min) 10--20
Drilling diameter(mm) 115---150
Drilling depth(m) down 62m
Once promotion distance(mm) 3000
Drill diameter(mm) 76
Skid compensation(mm) 1200
Maximum lift force(N) 26000
Guide shell lutting(°) up and down total 100
Guide shell swing angle(°) Left and right total 100
Boom lift angle(°) up and down total 70
Boom swing angle(°) 70
Grade ability(°) 30
Chassis ground clearance(mm) 300
Travelling speed(Km/h) 0-2.5
Back to the transit speed(r/min) 0--90
Rotary torque(N.m) 3100
Host Power(kW) 56
For rock 6---20
Total Weight(kg) 4800
Dimension (L * W * H) 5270*1950*2400mm



Product Features



The RC140Y rig is a hydraulic drill designed for the anchoring of buildings and infrastructure in harsh geological conditions. It has the characteristics of low speed and high torque, which is suitable for various industrial applications. The use of cylinder propulsion technology ensures the stability and reliability of operation. At the same time, equipped with a two - stage air filter, effectively ensure the air quality, thus extending the service life of the diesel engine. The application of multi - way valve control system makes the operation more convenient. In addition, automatic monitoring of hydraulic and propulsion pressures further improves the safety of the operation. The use of track tension device ensures the reliability of the entire operation process. The spotlight is equipped to make night work and maintenance more convenient. The compact design not only makes the operation safer, but also improves the mobility and flexibility of the equipment, enabling it to adapt to rough sites and uphill operations. The drill has a diameter range of 105 - 165 mm, which not only has high drilling efficiency, but also simple maintenance and high reliability.



Product Image



Hydraulic Crawler Engineering Anchor Drilling Rig 60m Depth 76HP Diesel Engine 0Hydraulic Crawler Engineering Anchor Drilling Rig 60m Depth 76HP Diesel Engine 1Hydraulic Crawler Engineering Anchor Drilling Rig 60m Depth 76HP Diesel Engine 2Hydraulic Crawler Engineering Anchor Drilling Rig 60m Depth 76HP Diesel Engine 3Hydraulic Crawler Engineering Anchor Drilling Rig 60m Depth 76HP Diesel Engine 4
