50m Depth Engineering Drilling Rig Electric Motor Crawler Mounted Drilling Rig

Product Details

Name:

Engineering Drilling Rig

Model:

RCT35A

Powerhead Speed:

Powerhead Speed

Powerhead Stroke:

2500mm

Drilling Depth:

50m

Overall Weight:

1900kg

Highlight:

50m engineering drilling rig

Crawler Mounted engineering drilling rig

electric motor crawler mounted drilling rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

7.5KW Electric Hydraulic Drilling Rig For Anchoring Up To 60m Depth

Get Best Price

Video

Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig

Get Best Price

Video

40-60m Split Type Hydraulic Anchor Drilling Rig With 25 KN Maximum Pull Force

Get Best Price

Video

Split Type 60m Hydraulic Anchor Drilling Rig with 7.5KW Electric Motor Power

Get Best Price

Contact Now

Product Description

50m Depth Crawler Mounted Walking Way Engineering Drilling Rig Electric Motor

Product Description

RCT35A hydraulic high - pressure jet drilling rig is a mature drilling rig that integrates multi - function, advanced technology and high stability. It is widely used in projects such as soft soil foundation reinforcement, high - rise building basement anti - seepage treatment, river and dam repair, and railway and highway bridge pier reinforcement. The rig is highly flexible and can be adapted to various construction methods such as fixed jet, swing jet and rotary jet, as well as single, double and triple tube rotary jets by combining different modules, demonstrating its excellent versatility.

Product Specifications

Torque	2000N.m
Powerhead speed	0-180r/min
Powerhead stroke	2500mm
Powerhead rated lifting force	25KN
Powerhead allowable pressure	15KN
Drilling depth	50m
Drill rod diameter	Φ50 mm; Φ60 mm Φ73 mm
Drilling angle	left and right ± 10 °; front and back 0 ～ 100 °
Motor power	15KW+5.5KW
Dimensions	when working 2400X1500X4000mm When transport 3550X1500X1750mm
Overall weight	1900kg
System pressure	20Mpa
Climbing degree	25 °
Walking speed	1.5Km/h

Product Features

This jet drill has several significant advantages, including a rotating bracket design that can turn the holes to the track side when needed, improving work efficiency. The equipped drilling rig vertical display device ensures fast and accurate positioning of hole locations. Its large traction crawler chassis gives it strong climbing ability, making equipment displacement quick and easy. The power head has a wide speed range and can adapt to various formations and different rotary injection process requirements. In addition, the drilling rig is compact in size, flexible and convenient to operate. The crawler tracks are also equipped with hydraulic cylinder supports to enhance the stability of the machine body and ensure smooth operation during construction.

Product Image

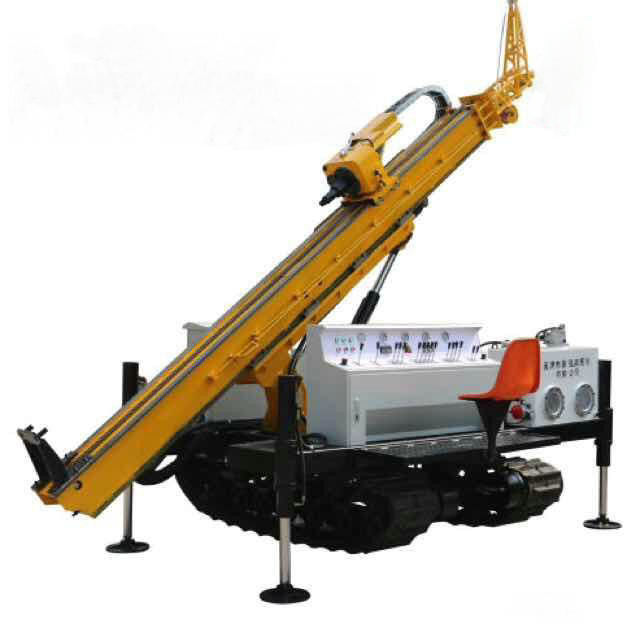

50m Depth Engineering Drilling Rig Electric Motor Crawler Mounted Drilling Rig 1
