Name: Wheel-Type Trailer DTH Water Well Drilling Rig Powered By 13T Lifting Force
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF220W
Availability: InStock

Home > products > Borehole Drilling Machine >

Wheel-Type Trailer DTH Water Well Drilling Rig Powered By 13T Lifting Force

Wheel Type Water Well Drilling Rig

DTH Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Request A Quote

Product Details

Model:

RCF220W Deep Water Well Drilling Rigs

Engine Power:

65KW Quanchai Engine

Max Drilling Depth:

220m

Drilling Way:

Both Mud Pump DTH Air Drilling

Lifting Force:

13T

Bore Diameter:

90-300mm

Highlight:

Wheel Type Water Well Drilling Rig

DTH Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

Wheel-Type Trailer DTH Water Well Drilling Rig Powered By 13T Lifting Force

Machine Introduction

RCF220W is a wheeled hydraulic water well drilling rig. A light, efficient and versatile machine, it is very suitable for industrial and civil drilling, geothermal drilling, etc. It can be operated with air compressor, mud pump or dry hydraulic drilling method. The drilling rig has the characteristics of compact design, fast feed speed and strong maneuverability. It is made of high-quality materials, has a low failure rate and is excellent value for money. The main features include simple and flexible full hydraulic control, excellent slewing drive system and high lifting force. The drilling rig uses a 65 kW full diesel engine as power, and the maximum drilling depth is 220 meters.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	220m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Lifting force	13T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	3400-4700Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.4T
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.75×2.25M
Weight	5500Kg
Diesel engine	65KW Quanchai engine

Machine Advantages

1. The RCF220W drilling rig can perform down-the-hole drilling and mud drilling, and is suitable for various geological conditions.

2. Centralized control console, easy operation and control. Quick traction and lifting functions reduce auxiliary operation time and improve work efficiency.

3. The main transmission system, transfer case, gearbox, double winch unit, mud pump, turntable, drilling rig, power system, etc. are all installed on the chassis to ensure a compact and efficient design.

4. This machine is a hydraulic rotary directional circulation drilling rig. It can be equipped with a BW250 mud pump that can use mud as a flushing fluid. With the right drill bit, you can drill into clay, sand and rock formations.

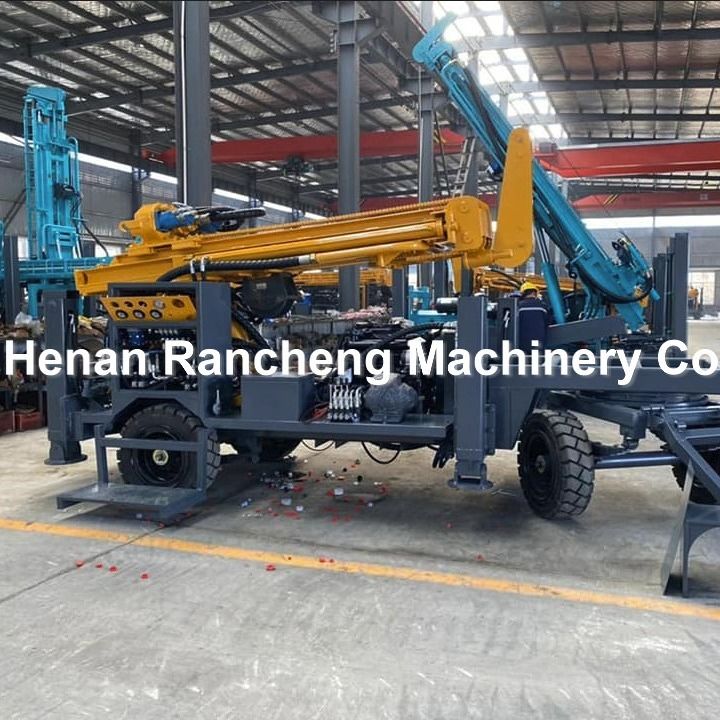

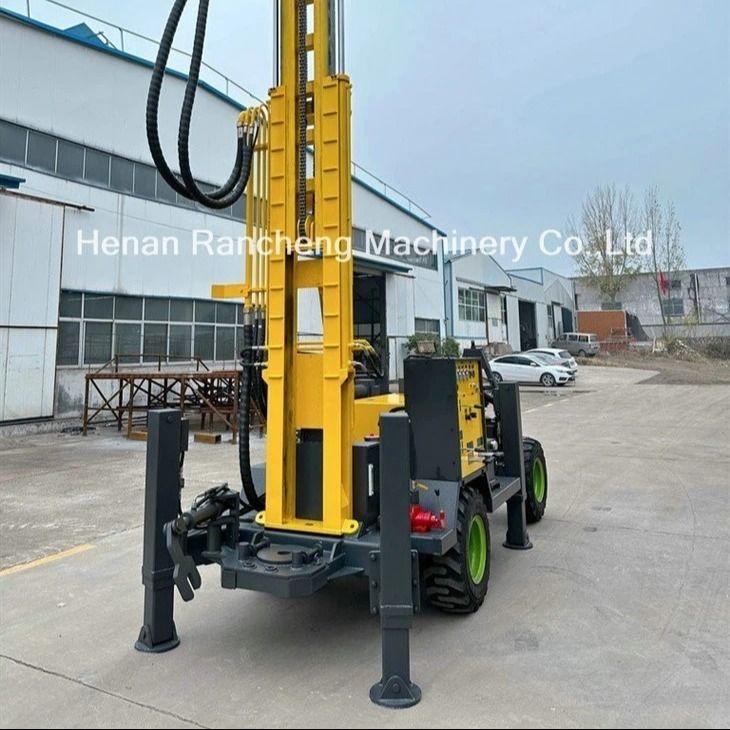

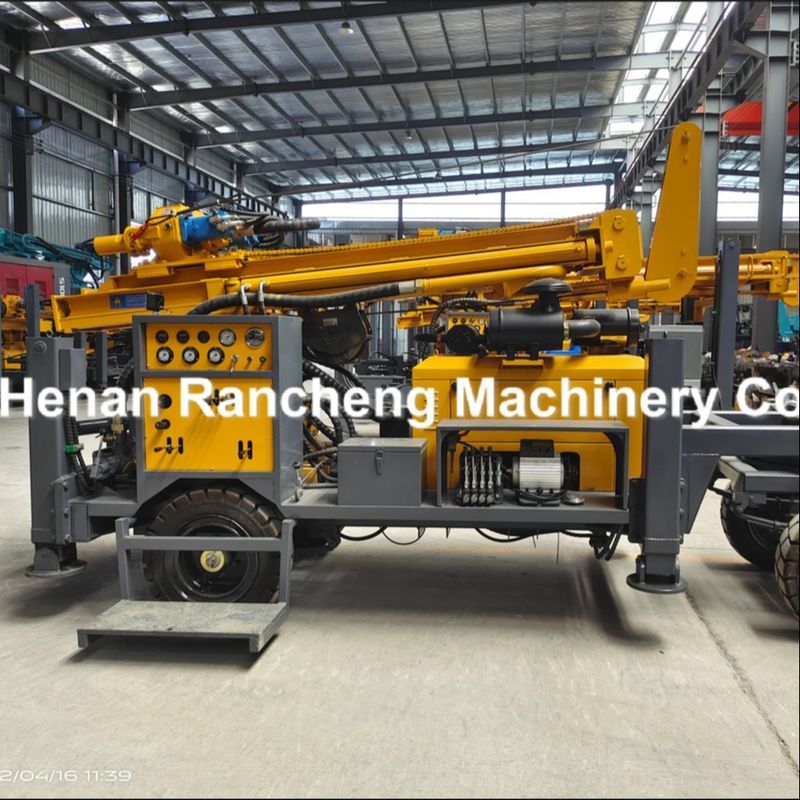

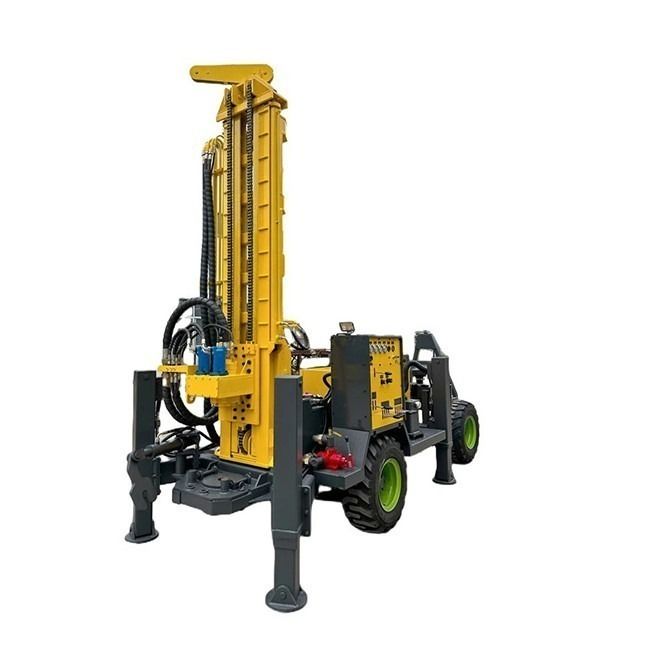

Machine Pictures
