200m Tractor Mounted Deep Water Well Drilling Rig 45HP Diesel Engine Hydraulic Water Well Drilling Machine

200m Tractor Mounted Deep Water Well Drilling Rig 45HP Diesel Engine Hydraulic Water Well Drilling Machine

Hydraulic Deep Water Well Drilling Rig

Tractor Mounted Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Contact Us
Request A Quote
Product Details
Name:
Hydraulic Trailer Mounted Water Well Drilling Rig
Model:
RCF200WT
Hole Diameter (mm):
140-254
Feed Stroke (mm):
2000
Travelling Speed (km/h):
30
Climbing Angle:
25 Degree
Highlight:

Hydraulic Deep Water Well Drilling Rig

,

Tractor Mounted Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200m Tractor Mounted Deep Water Well Drilling Rig 45HP Diesel Engine Hydraulic Water Well Drilling Machine



Machine Introduction



RCF200WT tractor mounted deep water well drilling rig is a product independently developed by our company. This new generation of down-the-hole hammer combined with higher pneumatic power plays an important role in increasing drilling speed. It adopts the latest model and advanced hydraulic technology, with low energy consumption, large rotary torque and convenient drilling deviation.



This water well drilling rig is mainly used for geothermal drilling, farmland irrigation, home yard, garden and water well drilling, with a drilling diameter of 70-350 mm and a drilling depth of 100-200 meters. It can also be used for small building piling, such as farmhouses or factories, with a drilling diameter of up to 500 mm and a depth of more than 60 meters.



Technical Parameters



Model RCF200WT
Weight (t) 4
Hole Diameter (mm) 140 - 254
Depth (m) 200
Feed Stroke (mm) 2000
Travelling Speed (km/h) 30
Climbing Angle 25 Degree
Tractor Horse Power (hp) 40
Air Pressure (Mpa) 1.7 - 2.5
Air Consumption (m^3/min) 17 - 30
Rod Diameter (mm) 76 & 89
Rod Length (mm) 2000
Lifting Force (t) 12
Rotation Speed (rpm) 45 -65
Output Torque (n.m) 4500 -5000
Dimension (mm) 3400*1500*2200



Machine Advantages



Integration of tractor & rig

The drilling rig is integrated with the tractor, and the tractor is both a transport machine and a rig. When going to the work site, the air compressor can be towed behind the rig. It is only necessary to equip a three-wheeled vehicle to load the drill pipe. This saves the investment of the transportation vehicle and makes it easier to go out. Since the the tractor is small and the design is flexible, the tractor is more suitable for driving and operating in the wild, outside the village, etc.,



Fuel Efficient

The 200 model drilling rig uses the tractor as the carrier and uses hydraulic pressure as the working power of the rig. It can easily realize the drilling of 200 meters with the power of the tractor's own diesel engine 40HP. At the same time, it is not necessary to open the air compressor when lifting the rod, Just opening the hydraulic power is enough to lift the rod. Therefore, the drilling cost is lower and the economic benefit is higher.



Keyboard Operation & Wireless Control

The machine uses mechatronics technology to operate the rig with a push-button keyboard. The operation mode is simpler and more flexible, and the operator can freely select the workstation position according to his or her own will, without being limited by the rig, and can realize the instantaneous jog operation. The improved version of the machine realizes wireless remote control operation, which makes the operation more convenient.



Machine Pictures

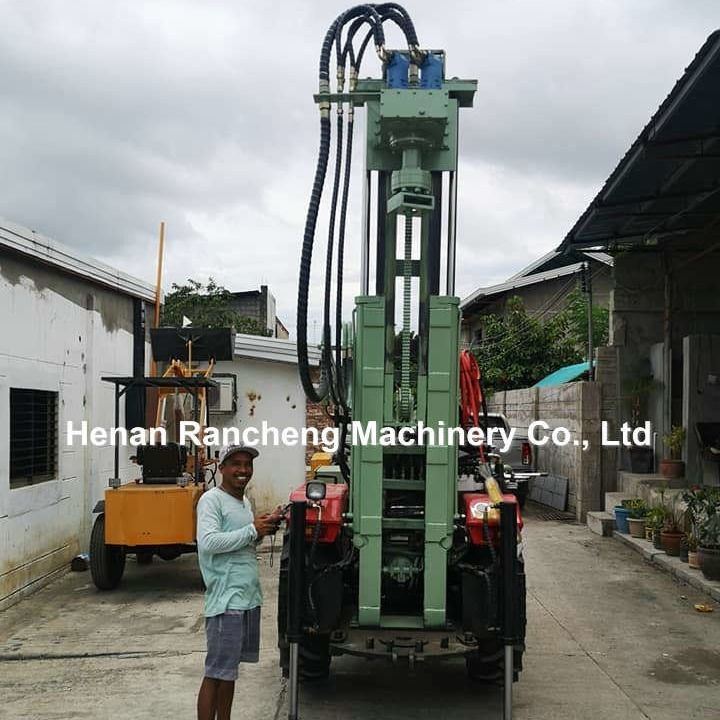

200m Tractor Mounted Deep Water Well Drilling Rig  45HP Diesel Engine Hydraulic Water Well Drilling Machine 0

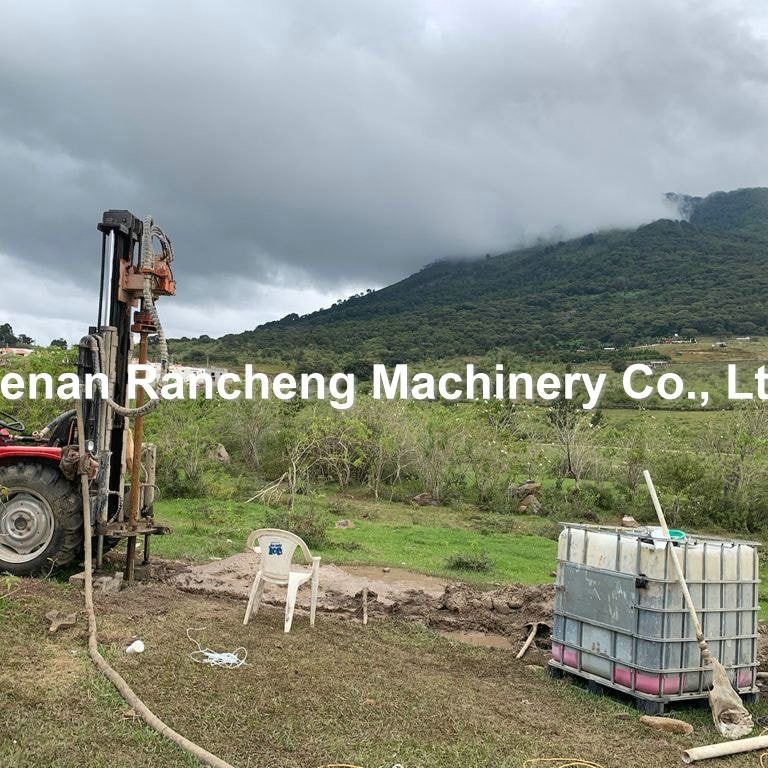

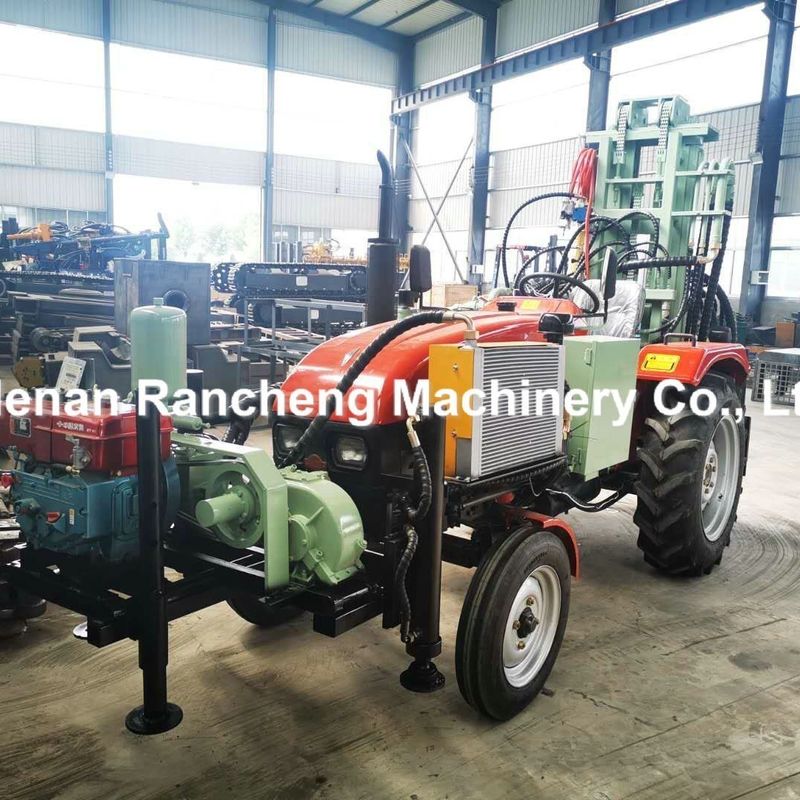

200m Tractor Mounted Deep Water Well Drilling Rig  45HP Diesel Engine Hydraulic Water Well Drilling Machine 1200m Tractor Mounted Deep Water Well Drilling Rig  45HP Diesel Engine Hydraulic Water Well Drilling Machine 2

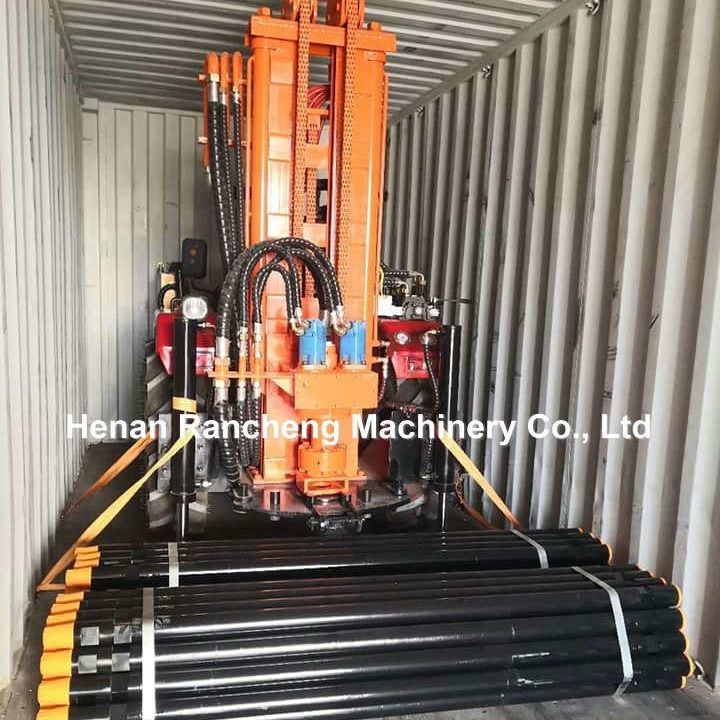

200m Tractor Mounted Deep Water Well Drilling Rig  45HP Diesel Engine Hydraulic Water Well Drilling Machine 3
