Name: Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200WT
Availability: InStock

Home > products > Borehole Drilling Machine >

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Water Wells Borehole Drilling Machine

Tractor Diesel Engine Borehole Drilling Machine

200m Deep Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Request A Quote

Product Details

Name:

Borehole Drilling Machine

Model:

RCF200WT

Hole Diameter:

140-254mm

Depth:

200m

Weight:

Dimension:

3400*1500*2200mm

Highlight:

Water Wells Borehole Drilling Machine

Tractor Diesel Engine Borehole Drilling Machine

200m Deep Borehole Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine for Water Wells
Machine Introduction

This tractor-integrated drilling rig uses a diesel engine as a power source. It has a compact structure and is flexible and maneuverable, making it suitable for narrow rural roads and courtyard operations. The drilling rig and tractor are designed to be integrated, without the need for an additional power unit, reducing costs, and an optional air compressor can be used to improve efficiency. A tricycle is used to transport the drill rod, further improving the convenience of construction. The whole machine has strong adaptability and can be used in scenarios such as well drilling and photovoltaic bracket installation. It is economical and practical, and is an ideal choice for small rural engineering operations.

Technical Parameters

Model	RCF200WT
Weight (t)	4
Hole Diameter (mm)	140 - 254
Depth (m)	200
Feed Stroke (mm)	2000
Travelling Speed (km/h)	30
Climbing Angle	25 Degree
Tractor Horse Power (hp)	40
Air Pressure (Mpa)	1.7 - 2.5
Air Consumption (m^3/min)	17 - 30
Rod Diameter (mm)	76 & 89
Rod Length (mm)	2000
Lifting Force (t)	12
Rotation Speed (rpm)	45 -65
Output Torque (n.m)	4500 -5000
Dimension (mm)	340015002200

Machine Advantages

1. It can drill through hard rock layers and operates efficiently under various geological conditions.

2. It is the most popular machine that meets the diverse requirements for a combination drilling device, capable of completing rural water supply wells in both sediments and hard rock.

3. Weighing about 4,000 kg, it can be easily towed by a pickup truck and has numerous features.

FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.

Q: How long does it take to produce?

A:Normally, our production takes about 15 days.

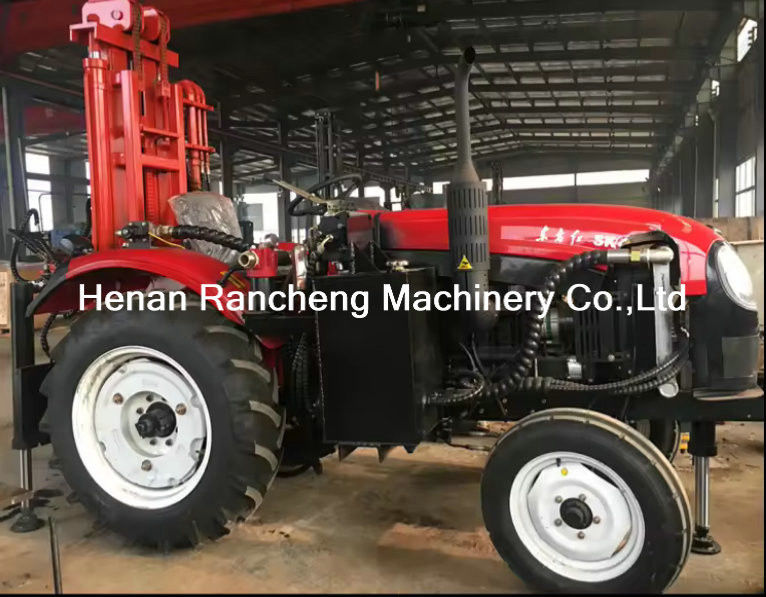

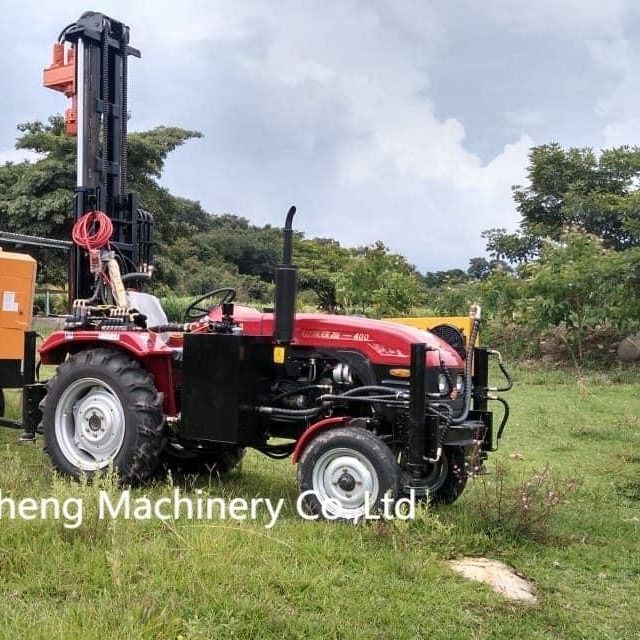

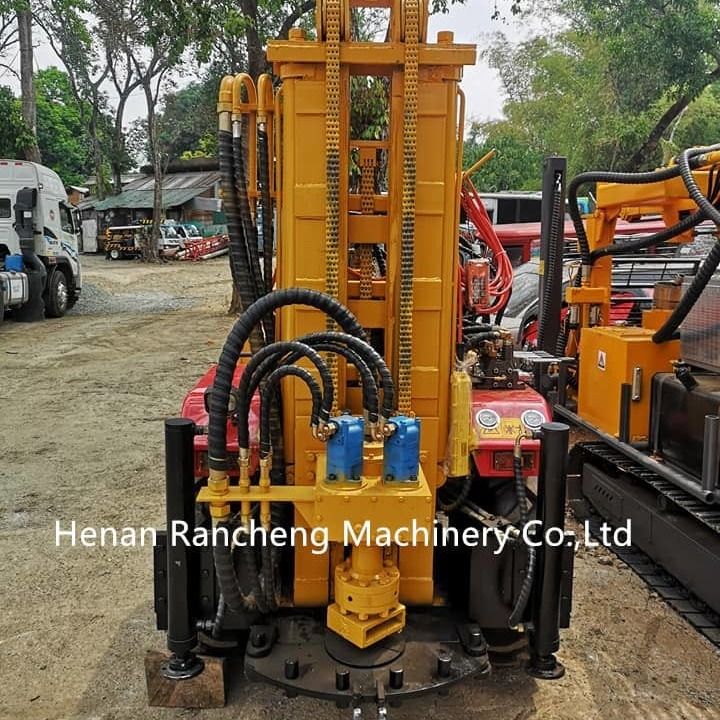

Machine Pictures
