200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

20HP Diesel Engine Borehole Drilling Machine

Mutil Functional Borehole Drilling Machine

200m Depth Borehole Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ130W / RCJ150W / RCJ200W

Contact Us
Request A Quote
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
Product Details
Name:
Mutil Functional Drilling Machine
Model:
RCJ200W
Drilling Depth:
200m
Drilling Angle:
90°～75°
Drilling Weight（no Include Power）:
910kg
Unity Machine Dimesions:
2.1×0.9×1.3m
Reel Lifting Speed:
17、35、75、151r/min
Highlight:

20HP Diesel Engine Borehole Drilling Machine

,

Mutil Functional Borehole Drilling Machine

,

200m Depth Borehole Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price RCF220W Borehole Drilling Machine for Hydrology Wells Supplies online Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells online Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price
Contact Us
Contact Now
Product Description

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine



Machine Introduction



RCJ130W, RCJ150W, RCJ200W small water well hydraulic drilling rigs are multifunctional drilling equipment. This type of drilling rig is mainly used for water well drilling operations, and is equipped with corresponding drill bit types for different geological conditions: diamond drill bits are usually used when operating in hard rock formations, while alloy drill bits are used in clay formations. As economical and practical drilling equipment, they can not only meet basic water well drilling needs, but also adapt to diverse geological environments by flexibly replacing drill bits. They are ideal choices for small and medium-sized drilling projects.



Machine Parameters



Tech parameter Model RCJ130W RCJ150W RCJ200W
Drilling depth(m) 130 200 200
Open hole dia(mm) 220 220 325
End hole dia(mm) 75 75 75
Drill rod dia(mm) 42-60 42-60 42-60
Drill angle 90-75 90-75 90-75
Matching power(KW) 13.2 13.2 14.7
Dimension(m) 2.4*0.8*1.4 2.4*0.8*1.3 2.7*0.9*1.5
Spindle Speed(r/min) 142/285/570

130/300/48/730/830/1045

 64/128/287/557
Stroke(mm) 450 450 450
Winch Max pull force(kg) 2000 2100 2500
Pull speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope dia(mm) 9.3 9.3 /
Roll capacity(m) 27 27 35
Drill Mast Rated load(Ton) 18 18 18
Height(m) 6.5 6.5 6.5
Mud Pump Flow(L/min) 95 95 145
Max Pressure(MPa) 1.2 1.2 2
Times/min 93 93 93
Inlet hose Dia(mm) 51 51 51
Outlet hose Dia(mm) 32 32 38



Application:



This drilling machine is mainly used in the field of geological survey and exploration, such as foundation exploration of highways and high-rise buildings. It can also be used for the construction of test holes for various concrete structures, such as river embankment projects, roadbed grouting hole excavation and direct grouting operations. In addition, this equipment can also play an important role in drilling scenes related to civil well drilling and geothermal central air conditioning. With its multifunctional characteristics, it has become a highly adaptable tool in engineering construction and geological exploration.





Machine Pictures

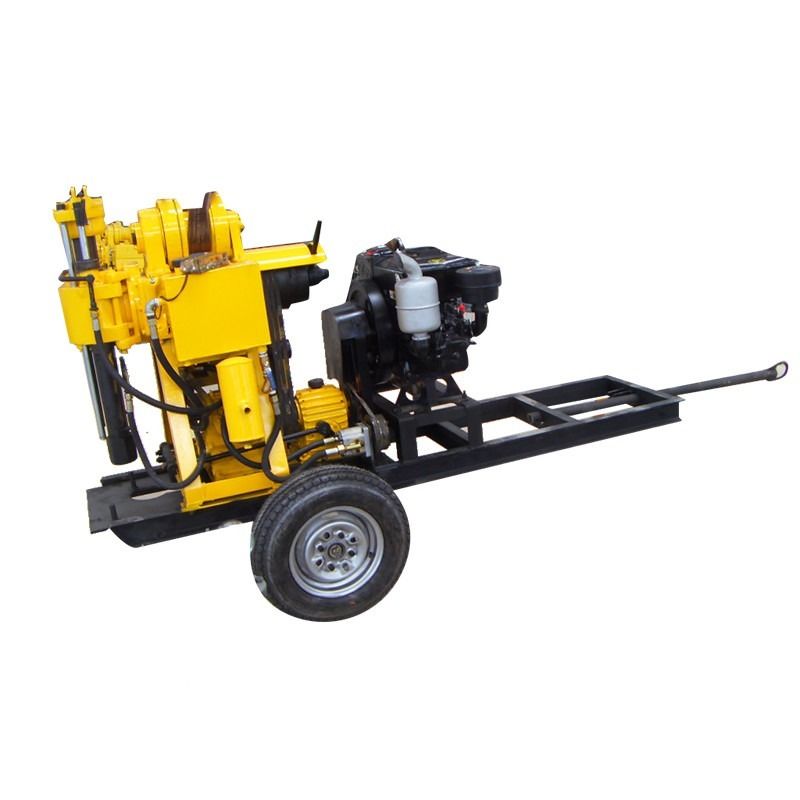

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 0

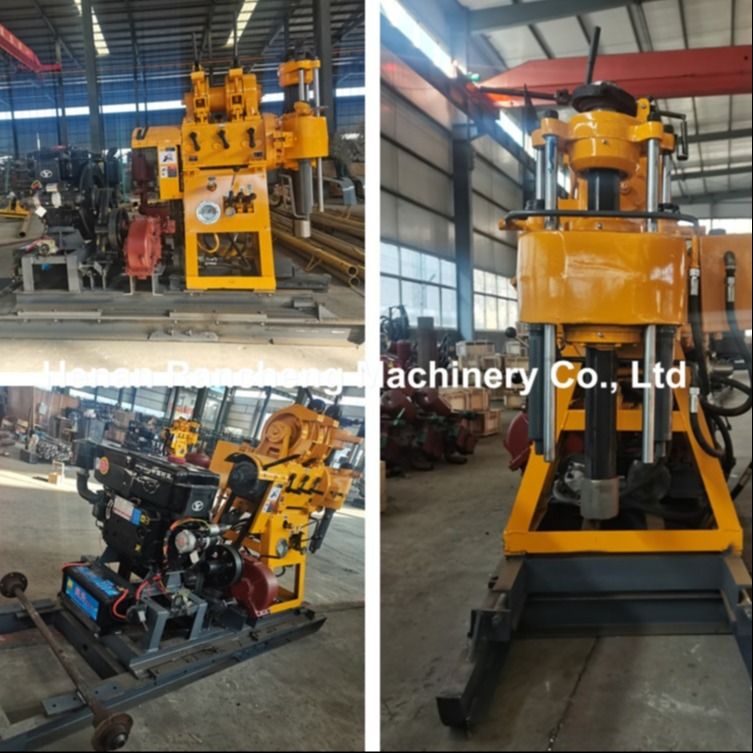

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 1

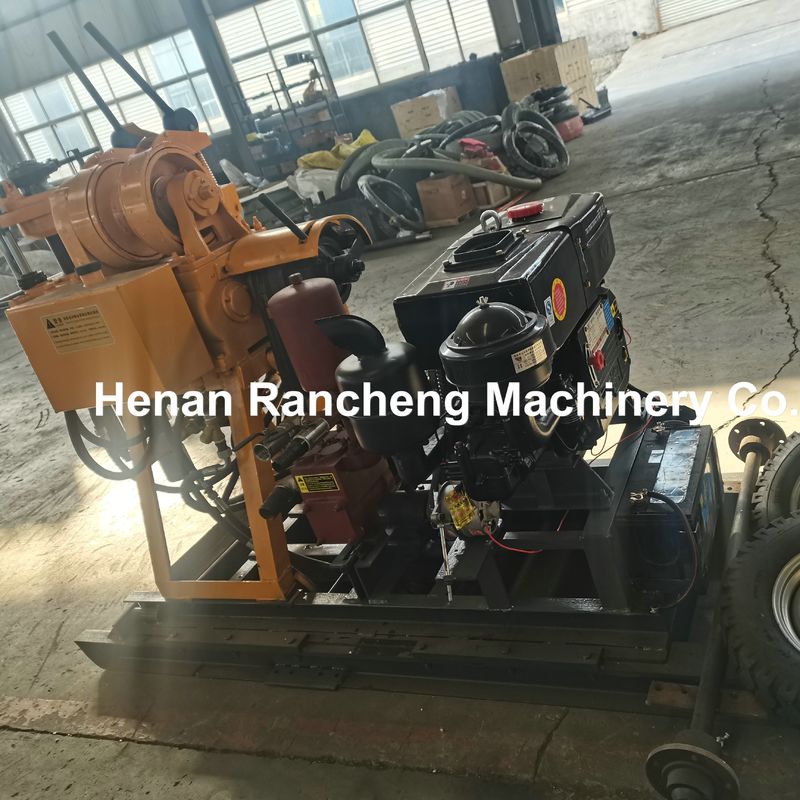

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 2

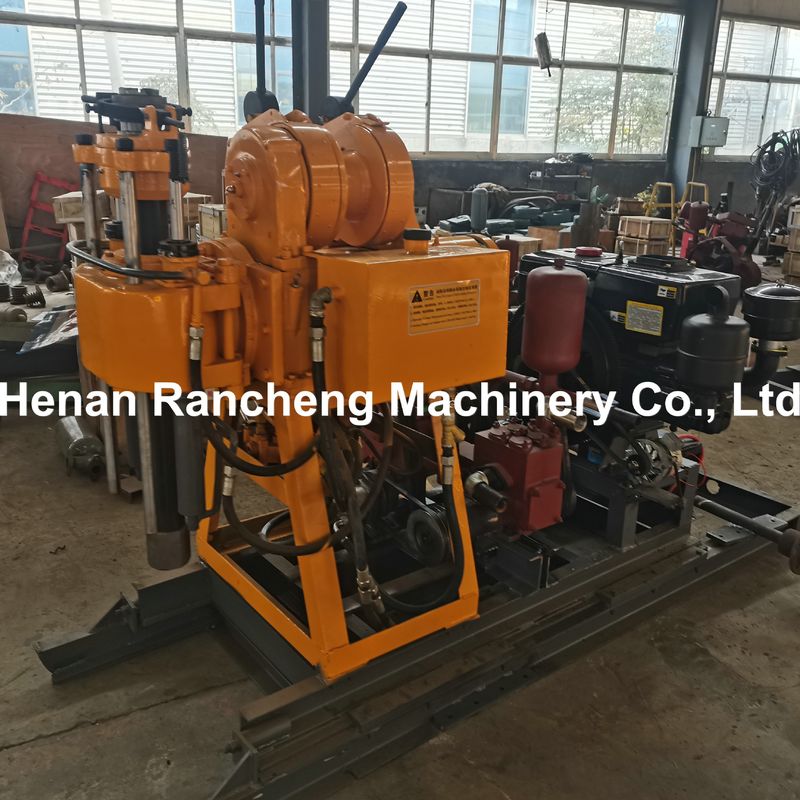

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine 3
