Name: RCF 200WT Tractor Mounted Water Well Drilling Machine High Effcient
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF200WT
Availability: InStock

Home > products > Borehole Drilling Machine >

RCF 200WT Tractor Mounted Water Well Drilling Machine High Effcient

254mm Hole Water Well Drilling Machine

Water Well Drilling Machine Tractor Mounted

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200WT

Request A Quote

Product Details

Name:

Borehole Drilling Machine

Model:

RCF200WT

Hole Diameter:

140-254mm

Depth:

200m

Weight:

Dimension:

3400*1500*2200mm

Highlight:

254mm Hole Water Well Drilling Machine

Water Well Drilling Machine Tractor Mounted

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

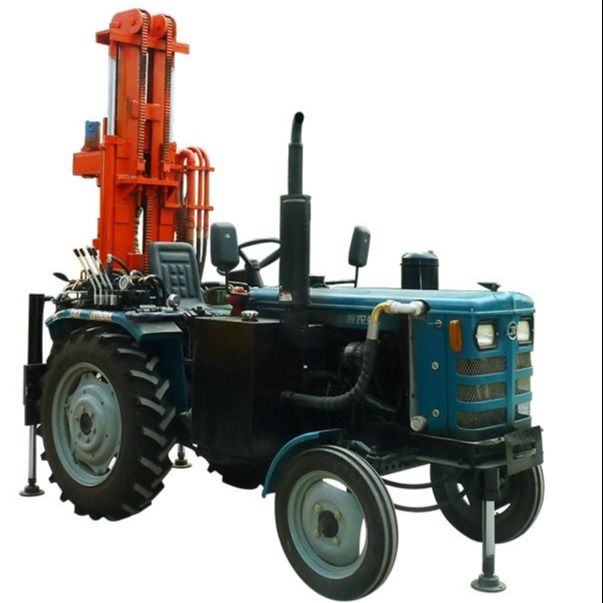

RCF 200WT Tractor mounted water well drilling machine with High effcient
Machine Introduction

The RCF200WT wheeled diesel drill is efficient and powerful, with a maximum drilling depth of 200 meters and a diameter of 350 mm, and is widely used in various drilling projects. It adopts a tractor-integrated design with its power system to save costs, and is particularly suitable for narrow rural roads and courtyard operations. An optional air compressor can significantly improve operating efficiency, and it is equipped with a three-wheeled drill rod transporter for easier operation. Whether it is water well drilling, photovoltaic pile foundation construction, or other small projects, this machine can easily handle the task, with a very high cost-effectiveness, and is a powerful assistant for engineering operations in rural areas.

Technical Parameters

Model	RCF200WT
Weight (t)	4
Hole Diameter (mm)	140 - 254
Depth (m)	200
Feed Stroke (mm)	2000
Travelling Speed (km/h)	30
Climbing Angle	25 Degree
Tractor Horse Power (hp)	40
Air Pressure (Mpa)	1.7 - 2.5
Air Consumption (m^3/min)	17 - 30
Rod Diameter (mm)	76 & 89
Rod Length (mm)	2000
Lifting Force (t)	12
Rotation Speed (rpm)	45 -65
Output Torque (n.m)	4500 -5000
Dimension (mm)	340015002200

Machine Advantages

1. It can drill through hard rock layers and operates efficiently under various geological conditions.

2. It is the most popular machine that meets the diverse requirements for a combination drilling device, capable of completing rural water supply wells in both sediments and hard rock.

3. Weighing about 4,000 kg, it can be easily towed by a pickup truck and has numerous features.

FAQ

Q: What are the advantages of your company?

A: Rancheng Machinery is a professional drilling rig supplier with more than ten years of industry experience. Our product line includes water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors and various drilling tools. All products have passed ISO9001 and CE certification and are exported to more than 200 countries and regions, ensuring that you get high-quality and reliable equipment.

Q: Can I find similar machines. Are they the same?

A: Not the same. There will be some drilling rigs with similar appearance on the market, which may be produced by different factories, so the brand abbreviations are different. The performance and quality will also vary depending on the supplier. We (rancheng machinery) as a professional drilling rig manufacturer, have more than ten years of experience, reliable quality, and are trustworthy.

Q: How long does it take to produce?

A:Normally, our production takes about 15 days.

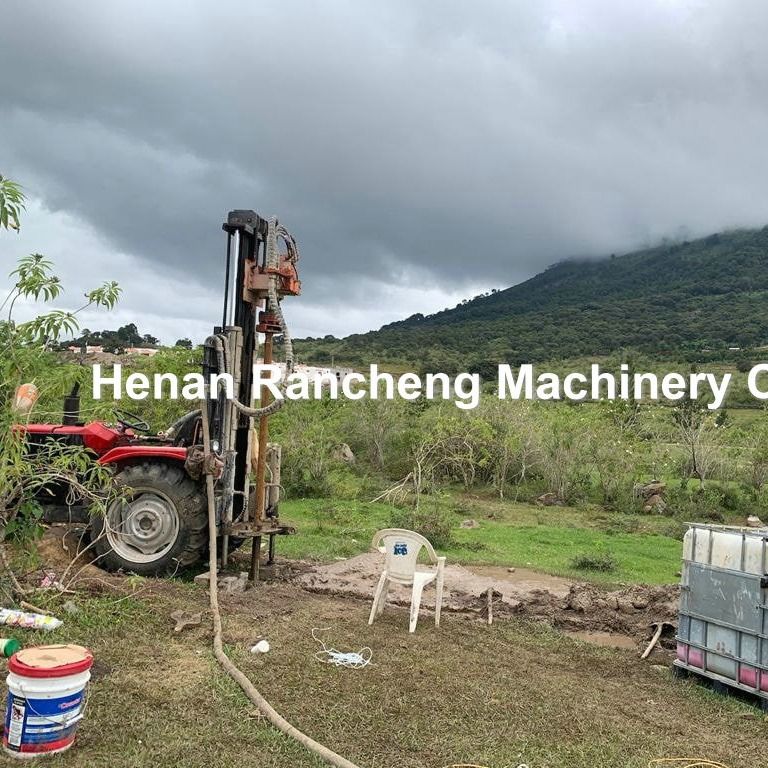

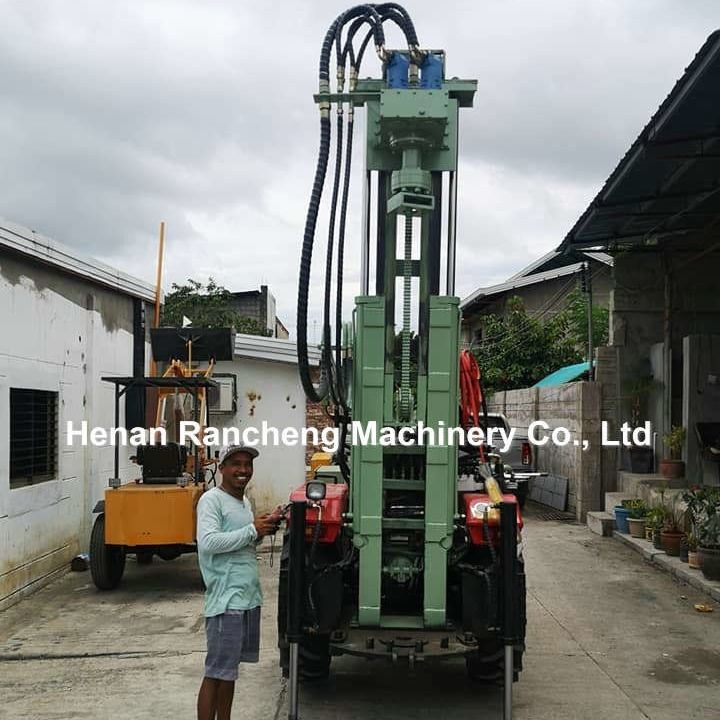

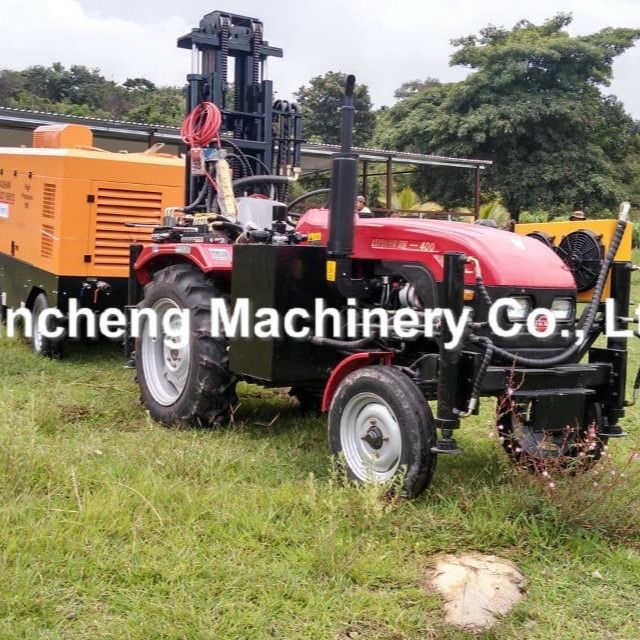

Machine Pictures
