200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed

Trailer Mounted Water Well Drilling Rig

Water Well Drilling Rig 200rpm

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200W

Request A Quote

Product Details

Drilling Depth:

200m

Drilling Diameter:

90-300mm

Rotation Torque:

4000-5000N.m

Rotation Speed:

80-200rpm

Lifting Capacity:

14000KGS

Diesel Engine:

45KW Weifang Hengtong

Highlight:

Trailer Mounted Water Well Drilling Rig

Water Well Drilling Rig 200rpm

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price

Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price

Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price

Contact Now

Product Description

200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed

Name: 200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200W
Availability: InStock

Product Description

RCS200W is a compact trailer-mounted drilling rig designed for well construction in a variety of geological conditions. The top uses advanced hydraulic drive technology, which works with mud pumps and air compressors for rotary or DTH (deep hole) drilling. The rig is optimized for drilling depths up to 200 meters and is suitable for applications such as agricultural irrigation, domestic water supply, geothermal facilities and exploration wells.

Technical data

Model	RCS200W
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2300KGS
Diesel engine
Power	45KW Weifang Hengtong

Key Features

Hydraulic Efficiency
The fully hydraulic drive system ensures smooth operation with minimal mechanical failures.

The rotary drive of the top head is compatible with DTH hammers and conventional rotary drilling methods.

Adaptable Drilling Fluids
Compatible with air circulation, foam or mud to suit a wide range of soil conditions, including hard rock and loose sediments.

Mobility and Portability
The two-wheel trailer design makes it easy to transport with a standard pickup truck.

The platform has a total weight of 2300 kg, ensuring fast installation in remote or hard-to-reach locations.

Power Flexibility
Diesel engine operation eliminates dependence on grid electricity, making it ideal for off-grid areas.

Compact and Durable
Its modular design simplifies maintenance and reduces downtime.

The rugged frame is able to withstand tough off-road conditions while maintaining a compact size.

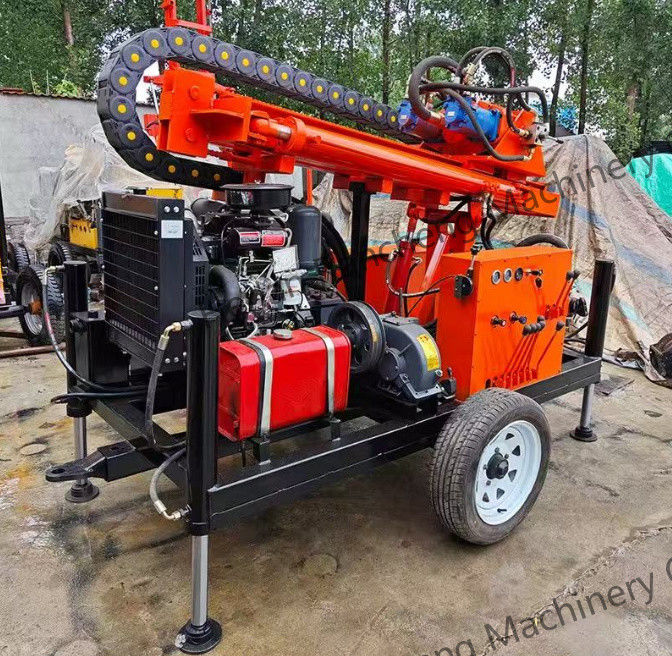

200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed 0

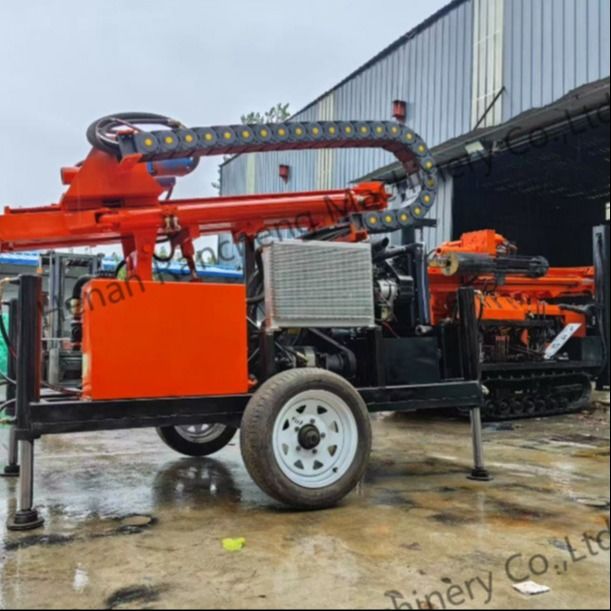

200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed 1

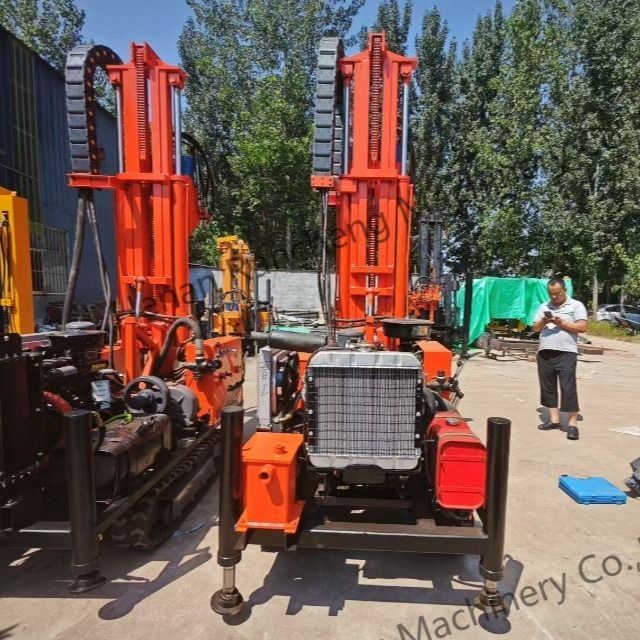

200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed 2

200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed 3

200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed 4

200m Mud Drilling Trailer Mounted Water Well Drilling Rig 80-200rpm Rotation Speed 5
