Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale

Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale

Full Hydraulic Wheels Drilling Rig Machine

Small Drilling Rig Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200W

Contact Us
Request A Quote
Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale
Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale
Product Details
Geology Drilled:
All Kinds
Drill System And Operation:
Full Hydraulic
Rotation Torque:
4500-5500N.m
Drill Pipe Length :
2/3m
Drill Pipe Diameter :
76/89mm
Diesel Engine:
78KW Weichai Huadong
Highlight:

Full Hydraulic Wheels Drilling Rig Machine

,

Small Drilling Rig Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price RCF220W Borehole Drilling Machine for Hydrology Wells Supplies online Video

RCF220W Borehole Drilling Machine for Hydrology Wells Supplies

Get Best Price
Good price 200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine online Video

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Get Best Price
Good price Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells online Video

Tractor Diesel Engine Powered 200m Deep Borehole Drilling Machine For Water Wells

Get Best Price
Contact Us
Contact Now
Product Description

Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale

Product Description

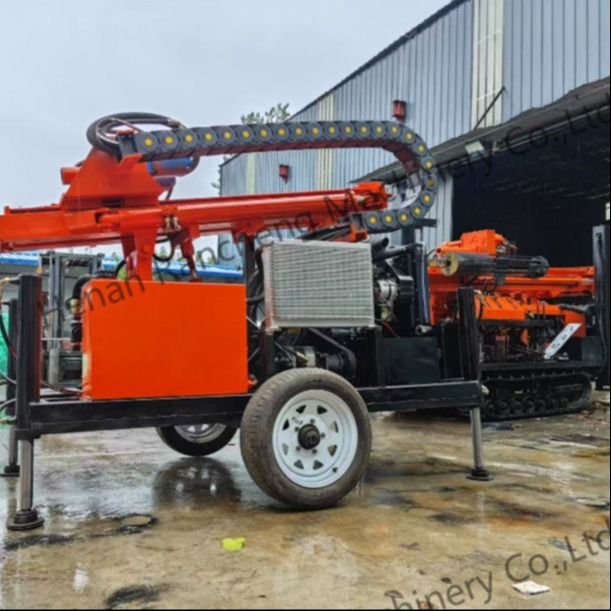

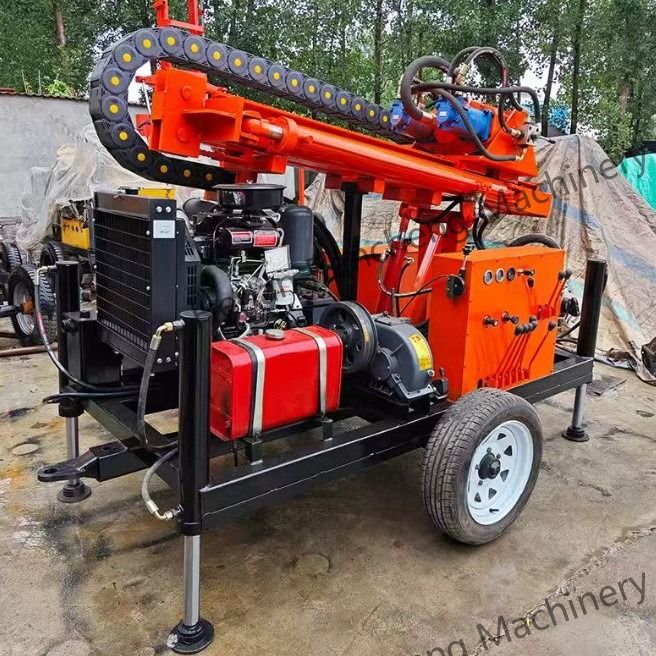

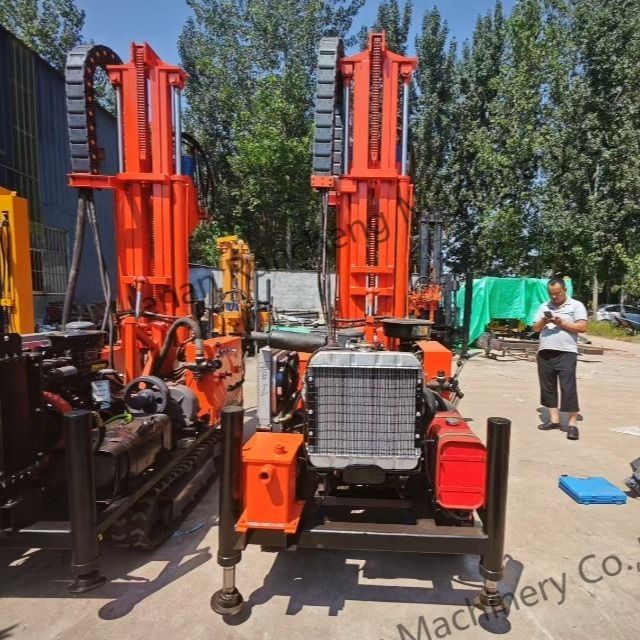

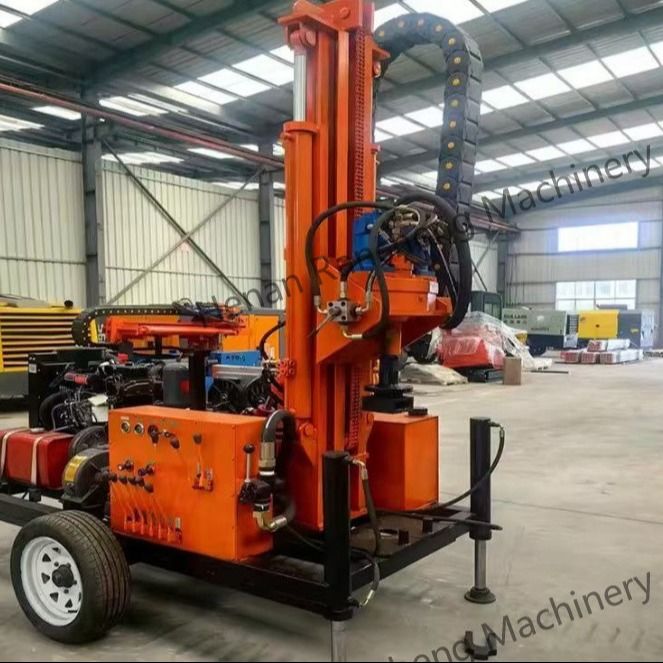

The RCS200W water well drilling rig is a trailer mounted water well drilling rig. It uses advanced hydraulic technology, is head driven, and is operated with a mud pump and air compressor.



This compact fully hydraulic drilling rig is designed for down-the-hole drilling and rotary drilling up to 200 meters deep. It is lightweight, powerful, and versatile, and can be used for rotary and drilling using air, foam, or mud depending on the conditions.

Technical data



Model RCS200W
Geology drilled All kinds
Drill depth 200 m
Drilling Diameter 90 -300mm
Drill system and operation Hydraulic
For rock 6-20F
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Rotary head
Rotation Torque 4000-5000N.m
Rotation speed 80-200rpm
Lifting capacity 14000KGS
Pull down capacity 4000KGS
DRILL PIPE
Drill pipe length 2 meter
Drill pipe diameter 60/76/89 mm
MUD PUMP
Flow capacity 160 liter/min
working pressure 1.3MPA
DIMENSIONS
Transport size 2300*1200*1700mm
Weight 2300KGS
Diesel engine
Power 45KW Weifang Hengtong



Application



This hydraulic water well drilling rig is widely used in industrial and agricultural water conservancy projects, agricultural irrigation well drilling, domestic water well drilling, geothermal well drilling, well inspection and other exploration drilling.




Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale 0



Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale 1



Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale 2



Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale 3



Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale 4



Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale 5
