Name: RCF220W The Perfect Solution for Borehole Drilling Machine in Industrial
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF220W
Price: 18,000.00 USD
Availability: InStock

Home > products > Borehole Drilling Machine >

RCF220W The Perfect Solution for Borehole Drilling Machine in Industrial

industrial borehole drilling machine

borehole drilling machine with warranty

RCF220W borehole drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF220W

Request A Quote

Product Details

Model:

RCF220W Deep Water Well Drilling Rigs

Engine Power:

65KW Quanchai Engine

Max Drilling Depth:

220m

Lifting Force:

13T

Lifting Speed:

2.5m/min

Bore Diameter:

90-300mm

Highlight:

industrial borehole drilling machine

borehole drilling machine with warranty

RCF220W borehole drilling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

US$ 16000-20000 / Set

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Trailer Water Well Driling Rig With 132KW Cummins Diesel Engine For 600m Water Drilling

Get Best Price

Video

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor

Get Best Price

Video

Hydraulic Tractor Mounted Water Well Drilling Machine 3400mm Feed Stroke

Get Best Price

Video

RCF220W The Perfect Solution for Borehole Drilling Machine in Industrial

Get Best Price

Contact Now

Product Description

RCF220W The Perfect Solution for Borehole Drilling Machine in Industrial

Machine Introduction

The RCF220W wheeled water well drill rig is a lightweight, efficient, and versatile drilling device. It is primarily suitable for industrial and civil drilling, as well as geothermal drilling. It boasts a compact structure, high propulsion speed, strong maneuverability, and a wide range of applications. Constructed of high-quality materials and featuring a stylish and compact design, this rig not only offers enhanced efficiency and a low failure rate, but also offers economical durability and a high overall cost-effectiveness. Our water well drill rig has been proven in the market and has received widespread praise from customers.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	220m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	1m,2m,3m
Lifting force	13T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	24m/min
Fast feeding speed	35m/min
Max torque of rotary	3400-4700Nm
Rotary speed	45-70r/min
Hoisting force of winch	1.4T
Mud Pump flow	250L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4×1.75×2.25M
Weight	5500Kg
Diesel engine	65KW Quanchai engine

Machine Advantages

1. This drill rig is equipped with a hydraulic system, delivering high torque and high drilling efficiency.

2. Both propulsion and lifting are driven by a hydraulic cylinder, which drives a chain drive. This powerful drive and ample torque enable easy drilling even in complex geologies such as soil, gravel, and hard rock.

3. The mast is equipped with a hydraulic compensation mechanism, which directly supports the ground during drilling, providing greater load-bearing capacity and excellent stability.

4. The front outriggers feature a telescopic design, allowing for a wide span during operation, ensuring high stability.

5. The entire machine is hydraulically driven and mounted on a four-wheel chassis, making it extremely easy to move and transport.

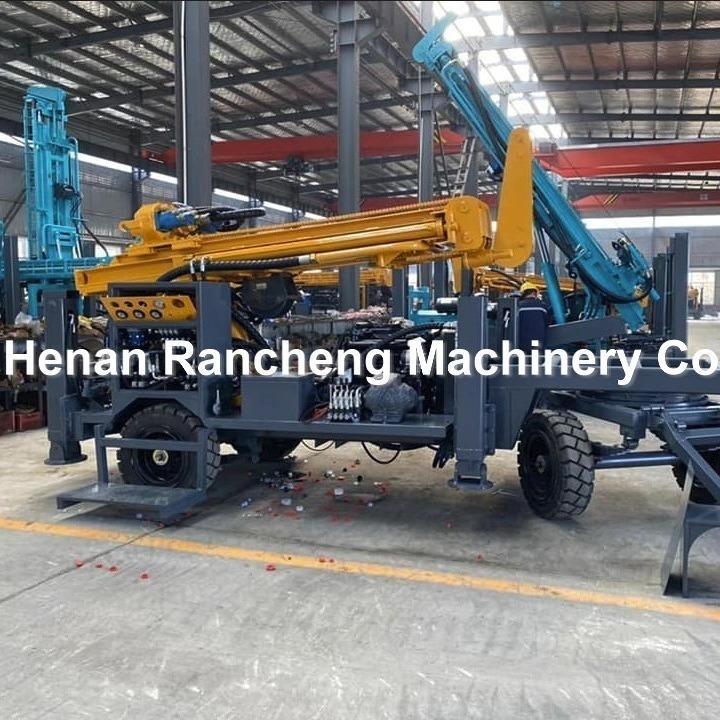

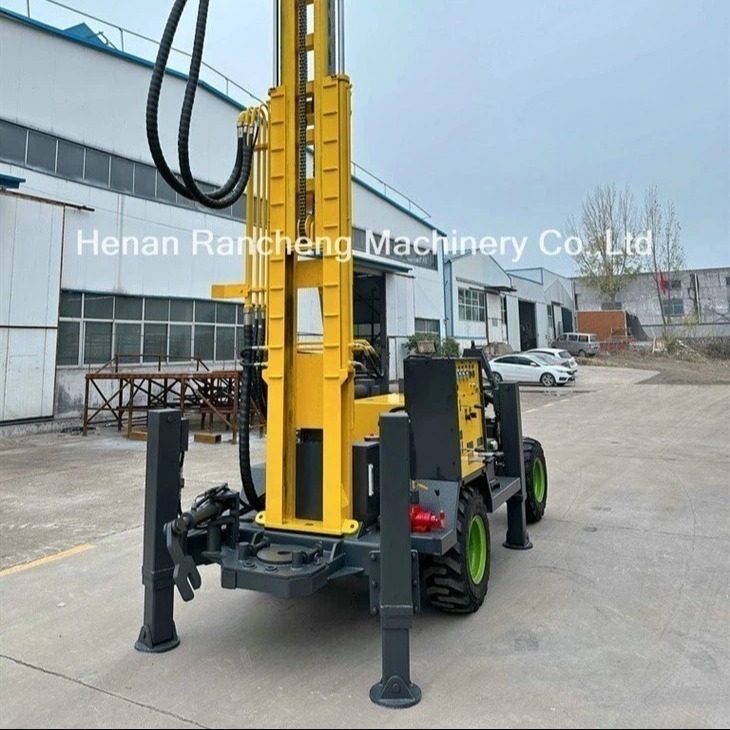

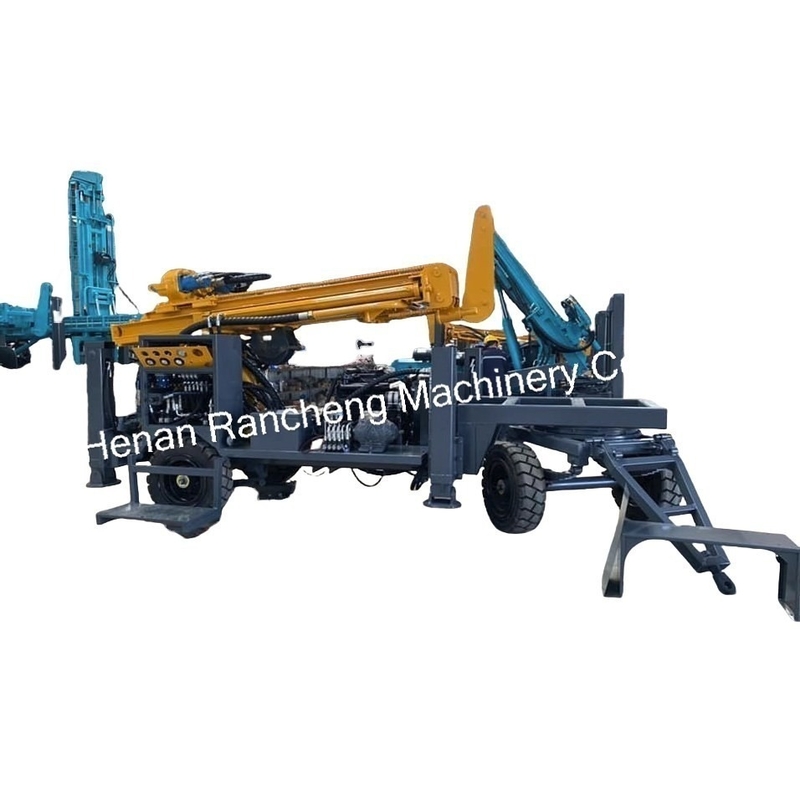

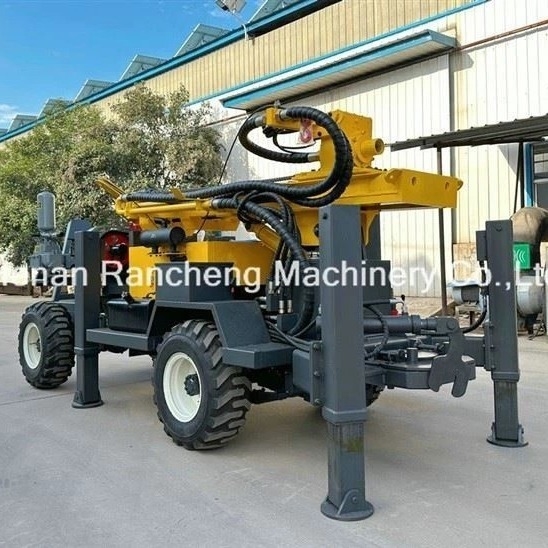

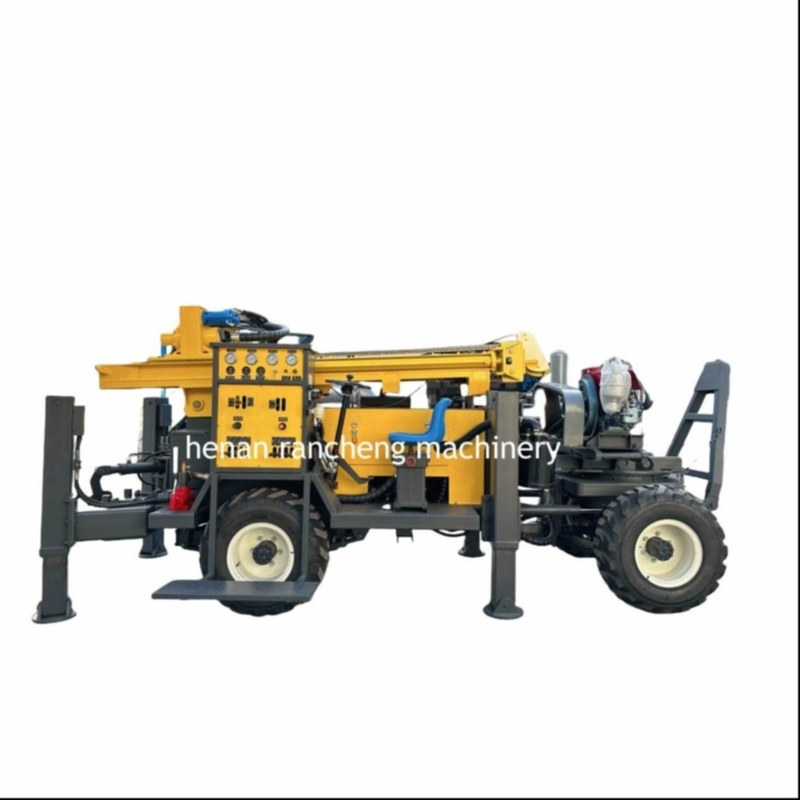

Machine Pictures
