Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump

Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump

trailer mounted water well drilling rig

150 meter deep borehole drilling machine

mud pump well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150W

Contact Us
Request A Quote
Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump
Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump
Product Details
Machine Model:
RCF150W
Max Drilling Depth:
150m
Drilling Diameter:
100-250mm
Single-pass Advancement Length:
2300mm
Marching Speed:
3km/h
Diesel Engine Power:
Changchai 32HP
Highlight:

trailer mounted water well drilling rig

,

150 meter deep borehole drilling machine

,

mud pump well drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD10000
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig online Video

Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig

Get Best Price
Good price Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine online

Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine

Get Best Price
Good price 200-Meter RCF200WT 40 Horsepower Tractor-Mounted Water Well Drilling Rig online Video

200-Meter RCF200WT 40 Horsepower Tractor-Mounted Water Well Drilling Rig

Get Best Price
Good price Direct Sale Of Popular RCF150W Trailer Mounted Water Well Drilling Rig online Video

Direct Sale Of Popular RCF150W Trailer Mounted Water Well Drilling Rig

Get Best Price
CONTACT US
Contact Now
Product Description
Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump
Machine Introduction

The RCF150W trailer-mounted water well drilling rig utilizes advanced reverse circulation technology, offering fast drilling speed, simple structure, and convenient operation. Transportation and disassembly are also easy. Compared to similar drilling rigs, it significantly reduces operator labor intensity and improves work efficiency.

This machine can be used for drilling in clay, loam, sand, and weathered rock, and performs particularly well in areas with small amounts of gravel. It is suitable for water well drilling, geothermal well drilling, and boasts advantages such as large bore diameter, deep drilling depth, high speed, flexibility, and high efficiency.

Technical Specifications
Bore diameter (Hammer) 100-220mm
Bore depth 150m
Air consumption 15-29m³/min
Air pressure 1.45-2.5Mpa
Pipe diameter 76mm
Pipe length 1m, 2m
Lifting force 12T
Max torque of rotary 4000Nm
Rotary speed 40-65r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Travel speed 3Km/h
Climb ability 30°
Dimension (L*W*H) 4000*1450*2050mm
Weight 3000Kg
Diesel engine 32HP Diesel engine
Key Features
  • The hydraulic system uses well-known brands of hydraulic pumps and valves, providing a very comfortable user experience
  • The three-wheeled design facilitates transportation and adjustment of the drilling rig angle
  • A pressure gauge displays the conditions at the bottom of the borehole
  • The diesel engine is equipped with an electric starter, making operation convenient and reducing labor intensity
  • Four large hydraulic outriggers allow for easy leveling and provide excellent stability during drilling
Product Gallery

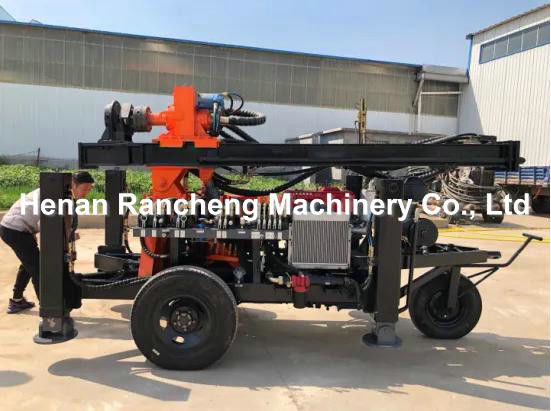

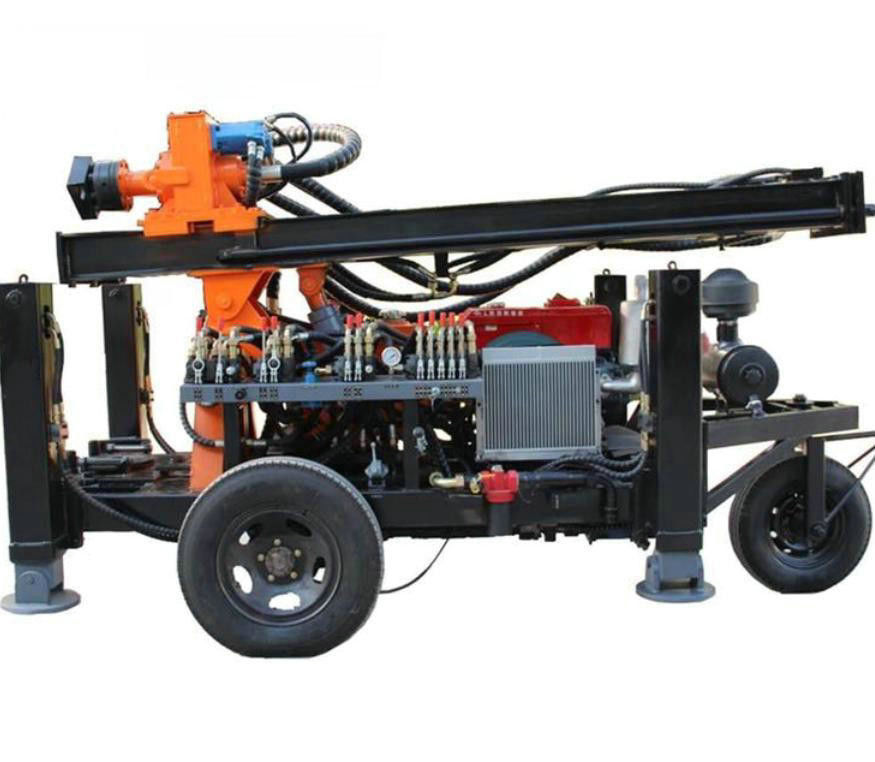

Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump 0 Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump 1 Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump 2 Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump 3
