Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig

Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig

hydraulic water well drilling rig

economical borehole drilling machine

practical RCJ200W drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ200W

Contact Us
Request A Quote
Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig
Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig
Product Details
Name:
Borehole Drilling Machine
Model:
RCJ200W
Drilling Depth:
200m
End Hole Dia:
75mm
Drill Rod Dia:
42-60mm
Stroke:
450mm
Rated Load:
18T
Height:
6.5m
Highlight:

hydraulic water well drilling rig

,

economical borehole drilling machine

,

practical RCJ200W drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine online

Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine

Get Best Price
Good price 200-Meter RCF200WT 40 Horsepower Tractor-Mounted Water Well Drilling Rig online Video

200-Meter RCF200WT 40 Horsepower Tractor-Mounted Water Well Drilling Rig

Get Best Price
Good price Direct Sale Of Popular RCF150W Trailer Mounted Water Well Drilling Rig online Video

Direct Sale Of Popular RCF150W Trailer Mounted Water Well Drilling Rig

Get Best Price
Good price Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump online Video

Trailer Mounted 150 Meter Deep Water Well Drilling Rig With Mud Pump

Get Best Price
CONTACT US
Contact Now
Product Description
Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig
The RCJ200W hydraulic small drilling rig is versatile equipment primarily used in water well drilling and exploration. It adapts flexibly to geological formations using diamond bits for hard rock and alloy bits for clay drilling, offering an economical and practical solution.
Applications include geological surveys and exploration, foundation exploration for roads and high-rise buildings, construction of inspection holes for concrete structures, grouting hole operations for river embankments and roadbeds, direct grouting projects, and drilling for civil wells and geothermal central air conditioning systems.
Technical Specifications
Tech parameter RCJ130W RCJ150W RCJ200W
Drilling depth (m)130200200
Open hole dia (mm)220220325
End hole dia (mm)757575
Drill rod dia (mm)42-6042-6042-60
Drill angle90-7590-7590-75
Matching power (KW)13.213.214.7
Dimension (m)2.4*0.8*1.42.4*0.8*1.32.7*0.9*1.5
Spindle speed (r/min)142/285/570130/300/48/730/830/104564/128/287/557
Stroke (mm)450450450
Winch max pull force (kg)200021002500
Pull speed (m/s)0.41-1.640.35-2.230.12-0.95
Rope dia (mm)9.39.3/
Roll capacity (m)272735
Drill mast rated load (Ton)181818
Height (m)6.56.56.5
Mud pump flow (L/min)9595145
Max pressure (MPa)1.21.22
Times/min939393
Inlet hose dia (mm)515151
Outlet hose dia (mm)323238
Key Features
Convenient Operation and Strong Power Adaptability
The entire machine uses a hydraulic control system for easy operation. Equipped with a diesel engine, it operates stably in areas without electricity and remote locations. The dual-wheel structure allows towing by pickup trucks or tractors for easy relocation and flexible movement.
Wide Geological Adaptability and Reliable Construction Performance
Drills holes in various complex geological formations including soil, sand and gravel, hard rock, and marble. The dual-wheel support structure provides strong impact resistance, and the vertical gearbox bearing arrangement offers sufficient rigidity to handle complex geological conditions such as gravel layers.
Excellent Technical Configuration and Economical Practicality
Equipped with a national patented conical clutch offering high transmission torque and maintenance-free operation. Uses high-rigidity drive rods for stable torque transmission, making it widely applicable to irrigation well drilling, geotechnical exploration, soil testing, and other scenarios with outstanding cost-effectiveness.
Product Images

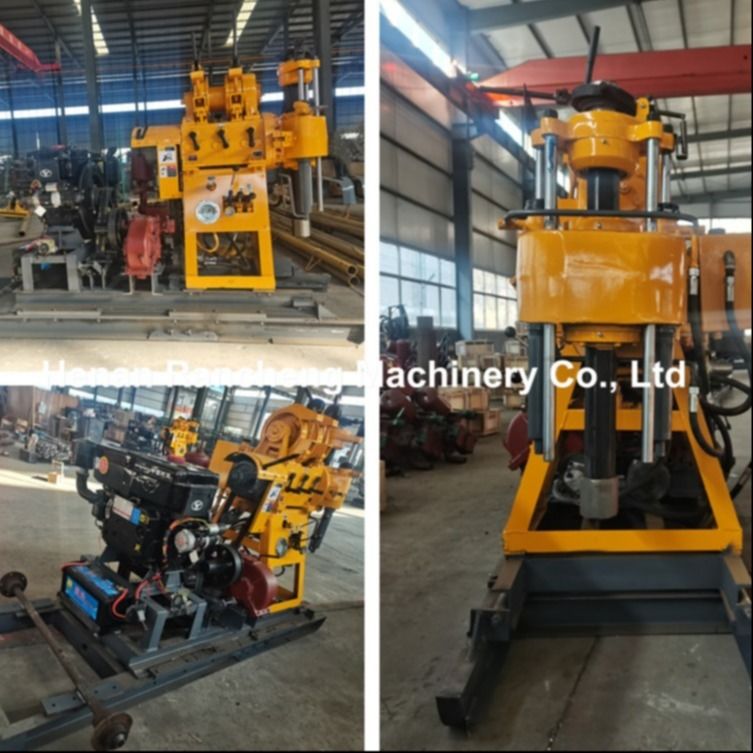

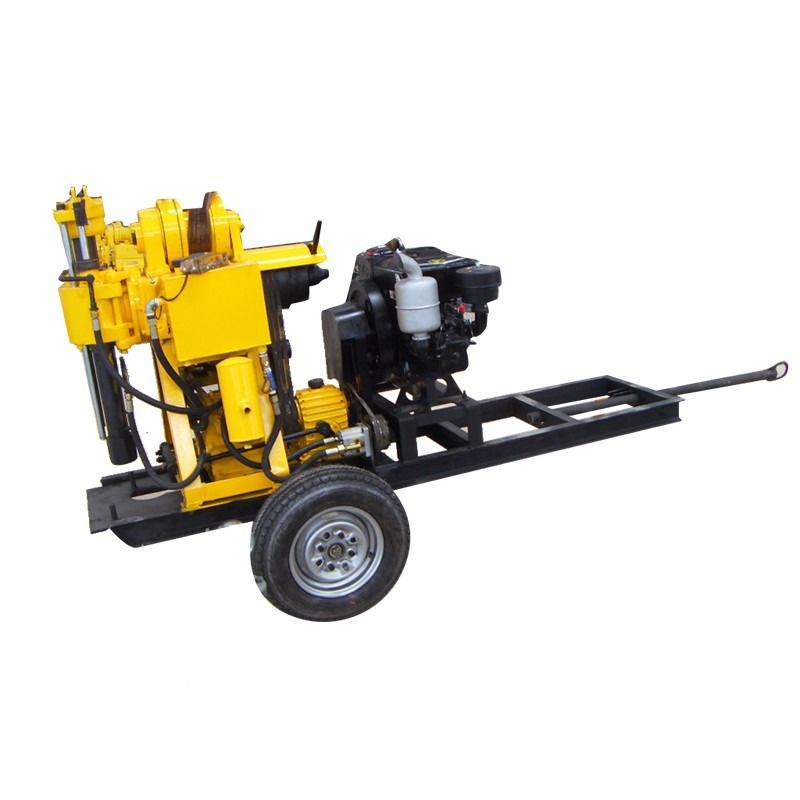

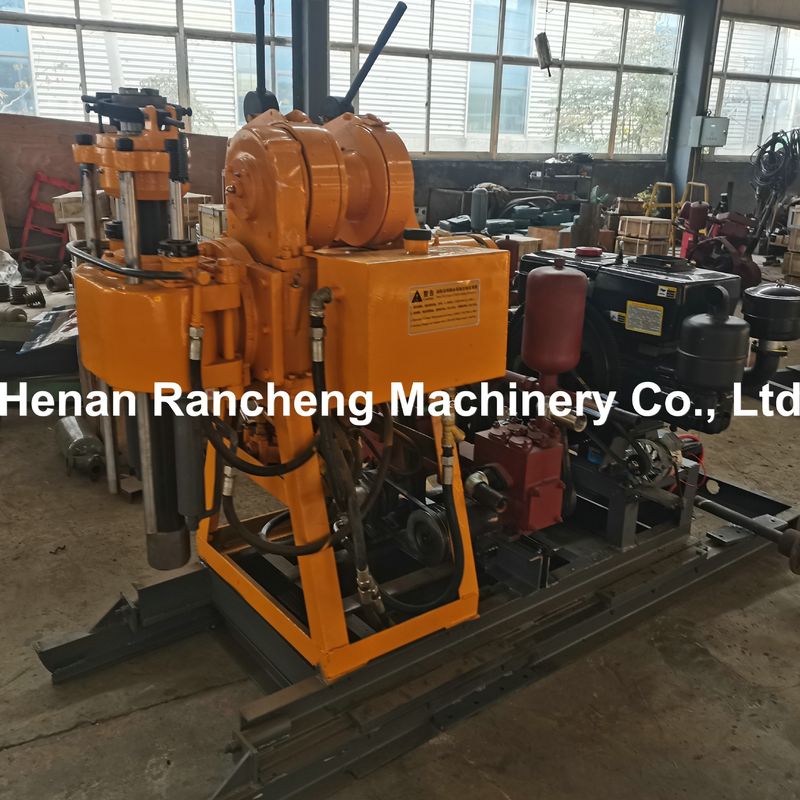

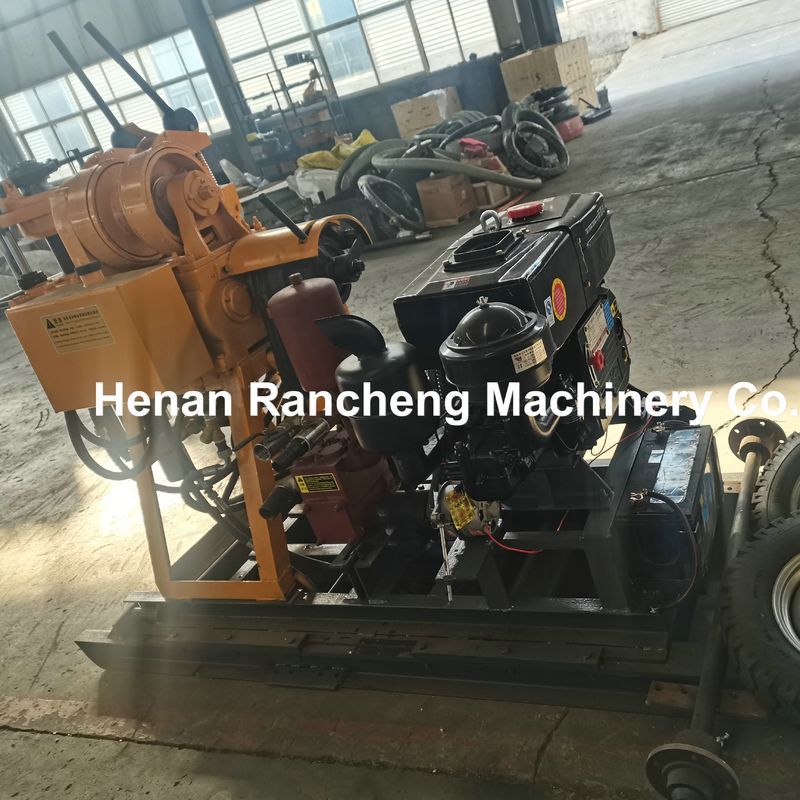

Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig 0 Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig 1 Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig 2 Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig 3
Ratings& Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
0%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

1
1*r
Tanzania Jul 14.2025
trustpilot.com
Helpful (500)
Compact and powerful. I love it.
