Name: RCS200W Small Portable Fully Hydraulic Drilling Rig Trailer-Mounted Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200W
Availability: InStock

Home > Products > Borehole Drilling Machine >

RCS200W Small Portable Fully Hydraulic Drilling Rig Trailer-Mounted Water Well Drilling Rig

small portable hydraulic drilling rig

trailer-mounted water well drill

fully hydraulic borehole drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200W

Request A Quote

Product Details

Drilling Depth:

200m

Drill Pipe Length:

2/3m

Drill Pipe Diameter:

76/89mm

Drill System And Operation:

Full Hydraulic

Rotation Torque:

4500-5500N.m

Diesel Engine:

78KW Weichai Huadong

Highlight:

small portable hydraulic drilling rig

trailer-mounted water well drill

fully hydraulic borehole drilling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCS200WT Mini Hydraulic Tricycle-Style Water Well Drilling Rig - Hot Selling Model

Get Best Price

Video

Economical And Practical RCJ200W Hydraulic Water Well Drilling Rig

Get Best Price

Diesel Engine-Powered Wheeled Drilling Rig RCJ-3W Drilling Machine

Get Best Price

Video

200-Meter RCF200WT 40 Horsepower Tractor-Mounted Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

RCS200W Small Portable Fully Hydraulic Drilling Rig

Trailer-Mounted Water Well Drilling Rig

Product Overview

The RCS200W is a compact, fully hydraulic trailer-mounted water well drilling rig featuring an advanced hydraulic system and top drive design. This versatile rig can be operated with a mud pump or air compressor, delivering high efficiency, stability, and strong adaptability. With a maximum drilling depth of 200 meters, it supports air, foam, and mud media, enabling both rotary drilling and down-the-hole hammer drilling operations.

Ideal for agricultural irrigation, domestic water supply, geothermal drilling, and geological exploration projects, the RCS200W reliably operates in various geological conditions including soil and rock formations, even in remote mountainous areas.

Technical Specifications

Model	RCS200W
Geology Drilled	All kinds
Drill Depth	200 m
Drilling Diameter	90-300mm
Drill System and Operation	Hydraulic
For Rock	6-20F
Air Consumption	17-35m³/min
Air Pressure	1.7-3.0Mpa

Rotary Head

Rotation Torque	4000-5000N.m
Rotation Speed	80-200rpm
Lifting Capacity	14000KGS
Pull Down Capacity	4000KGS

Drill Pipe

Drill Pipe Length	2 meter
Drill Pipe Diameter	60/76/89 mm

Mud Pump

Flow Capacity	160 liter/min
Working Pressure	1.3MPA

Dimensions

Transport Size	2300×1200×1700mm
Weight	2300KGS

Diesel Engine

Power

45KW Weifang Hengtong

Key Advantages

Compact and Portable, Efficient Relocation: Weighing only 2300kg, the machine features a two-wheel trailer structure that can be easily towed by a pickup truck, ensuring flexible and quick movement between job sites.
Versatile and Adaptable to Various Geological Conditions: Supports both mud drilling and air drilling modes, capable of handling various geological formations including soil and rock, with a wide operating range for diverse project requirements.
Reliable Power and Easy Maintenance: Equipped with a 45kW diesel engine for stable off-grid operation; fully hydraulic drive system ensures simple operation, low failure rate, and straightforward maintenance procedures.

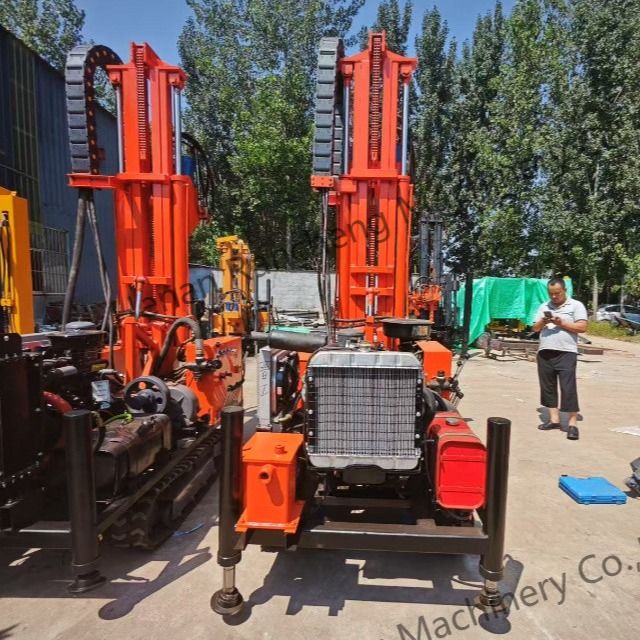

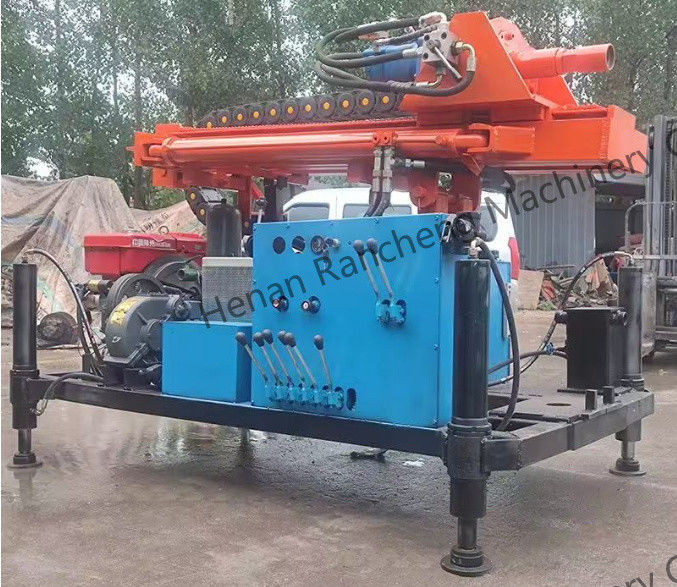

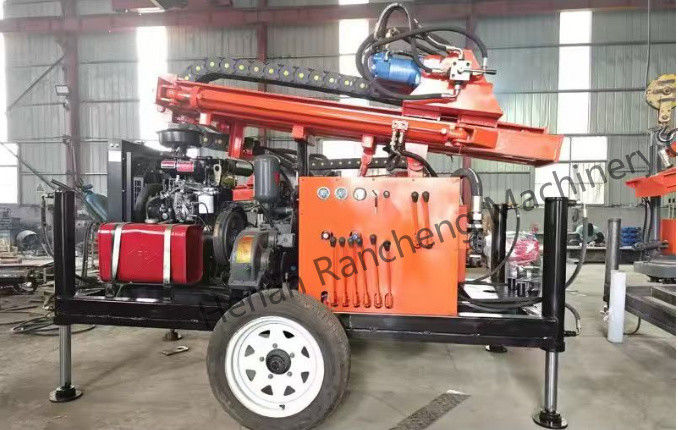

Product Images
