3440mm Underground Drilling Rig Equipment With Electric Motor Diesel Engine

3440mm Underground Drilling Rig Equipment With Electric Motor Diesel Engine

3440mm drilling rig equipment

Underground drilling rig equipment

3440mm Underground Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCZ-18J

Contact Us
Request A Quote
Product Details
Name:
Engineering Drilling Rig
Model:
RCZ-18J
Hole Range:
41 - 89mm
Hole Depth:
3440mm
Machine Weight:
≤ 11,000kg
Dimension ( L XW XH ):
11,890 X 1,450 X 1,400 / 2,100
Highlight:

3440mm drilling rig equipment

,

Underground drilling rig equipment

,

3440mm Underground Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

3440mm Underground Engineering Drilling Rig Electric Motor and Diesel Engine



Machine Introduction

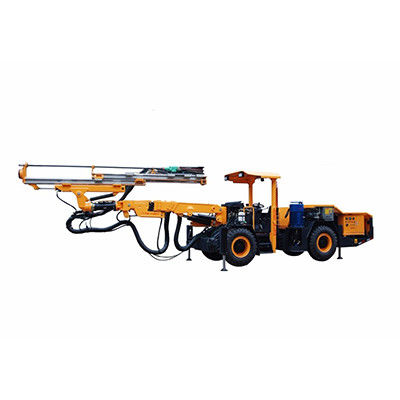

The RCZ - 18J drilling rig is a fully hydraulic underground drilling giant tailored for complex operating environments. It is especially suitable for narrow and low hole mining and tunnel engineering with limited space. The rig uses an advanced direct - control hydraulic system, coupled with four - wheel drive and articulated steering capabilities, ensuring its excellent maneuverability and adaptability in harsh terrain, and the ability to quickly enter and exit the operating area. The high - efficiency impactor it is equipped with not only significantly reduces operating time, but also significantly reduces energy consumption, making it an efficient choice for narrow vein and tunnel operations. The RCZ - 18J has a maximum working coverage area of ​​30 square meters, which makes it a productivity guarantee in large - scale tunnel projects. The rig ’ s versatility has led to its wide range of applications in a variety of fields including coal mining, tunnel drilling, railway and road construction, etc., proving its superior operating capabilities and reliability.



Technical Parameters



Model Specifications RCZ-18J
Hole range ( mm ) 41 - 89
Hole depth ( mm ) 3,440
Rod Size ( mm ) ( R32, R38, T38 ) 3,700
Drifter Model 104M
Impacting power ( kW ) 20
Max. torque ( N.m ) 752
Impacting frequency ( Hz ) 60
Hydraulic system pressure ( bar ) 200
Rotation speed ( rpm ) 0 - 388
Weight ( Kg ) 170
Air compressor Type Reciprocate piston compressor
Pressure ( bar ) 8
F.A.D ( m3 / min ) 0.36
Diesel engine Model Yuchai YC4DK100-T301 Stage IIIA
Power ( kW ) 73.6
RPM ( r / min ) 2,400 rpm
Electric motor Maker Jiangtian
Power ( kW ) 55
RPM ( r / min ) 1,475
Frequency ( Hz ) 50
Voltage ( V ) 380
Feed Model 3,700
Total length ( mm ) 5,400
Feed travel ( mm ) 3,440
Extension length ( mm ) 1,600
Max. feed force ( KN ) 15
Tramming Type Hydraulic-driven Four-wheel driven
Tramming speed ( km / h ) 11.5 / 5.6
Max. traction force ( KN ) 42
Gradient ( ° ) 20
Chassis floating angle (°) ±15
Tire 8.25R15
Tramming brake Hydro-static brake & dual loops, 4-wheel brake
Emergency stop & parking brake SAHR
Ground clearance ( mm ) 300
Boom Type Multiple coordinates
Nos. of booms 1
Parallel mechanism Complete
Boom extension length ( mm ) 1,200
Boom left / right swing angle ( ° ) ±35
Boom lifting angle ( ° ) + 68 / - 40
Feed tilt angle ( ° ) + 3 / - 90º
Feed turning angle ( ° ) 360 ( screw type )
Chassis Type Articulated
Articulated angel ( ° ) ± 40
Hydraulic support legs 4pcs
Cab Rotating driver seat
Turning system Hydro-static power steering system
leveling meter yes
Horn yes
Start warning yes
Reverse warning yes
Approach / departure angle ( ° ) 17 / 15
Drifter lubrication warning yes
Fuel tank capacity(L) 60
Hydraulic system Form Variable
System pressure( bar ) 240
Hydraulic tank capacity( L ) 180
Pump set unloading start Automatic
Oil temp. indicator Yes
Low oil level alarm display Yes
Functions Directly controlled drilling system, with auto collaring, feed pressure control impacting ( FPCI ), and auto anti-jamming functions
Electric system Start-up mode Star – delta unloading start
Voltage(V) 380 / 660 / 1,000
Control voltage ( V ) 24
Lighting lamp 8 x 70 W, 24 V
Cable reel capacity ( m ) 70
Impacting timer Yes
Digital voltammeter Yes
Phase order indicator warning Yes
Residual current device Yes
Thermal overload protector of electric motor Yes
Water system Booster pump Centrifugal
Power ( kW ) 1.5
F.A.D ( m3 / h ) 2
Pressure ( bar ) 12
Min. water inlet pressure ( bar ) 2
Cooling system type Water-cooled
Machine weight ( kg ) ≤ 11,000
Dimension ( L xW xH ) mm 11,890 x 1,450 x 1,400 / 2,100
Tramming turning radius ( mm ) Inner R 2,800,Outer R 4,900
Working face dimensions W x H ( m ) 6 x 5.7
Max. working area ( m2 ) 31
Optional Short/long feed beam
Exhaust purification device
Electric hydraulic oil filling pump
Cummins engine
RHS
