Hydraulic Jet Drilling Rig Equipment 75KW Motor Power 130m - 170m Drilling Depth

Hydraulic Jet Drilling Rig Equipment 75KW Motor Power 130m - 170m Drilling Depth

hydraulic jet drilling rig

drilling rig equipment 75kw

hydraulic drilling rig equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCT150D

Contact Us
Request A Quote
Product Details
Name:
Engineering Drilling Rig
Model:
RCT150D
Power Head Stroke:
3400mm
Drilling Depth:
130-170m
Overall Weight:
5900kg
Lifting Height:
3.5m
Highlight:

hydraulic jet drilling rig

,

drilling rig equipment 75kw

,

hydraulic drilling rig equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

130 - 170m Drilling Depth Hydraulic Jet Engineering Drilling Rig 75KW Motor Power



Product Description



RCT150D hydraulic high pressure jet drill is a multi-functional drill, which can connect three meters of drill pipe for single pipe, double pipe and three pipe high - pressure jet pile construction, and is widely used in anti - floating anchor, foundation pit support, rotary jet expansion anchoring, auger pipe and other projects. It is also suitable for soft soil foundation reinforcement, high - rise building basement seepage treatment, river and dam repair, railway pier reinforcement and other occasions. The rig can be combined with different modules to adapt to fixed injection, swing injection, rotary injection and other construction processes, as well as single pipe, double pipe, three pipe rotary injection and other different construction requirements. It can also carry out ordinary rotary drilling, air DTH hammer drilling, high pressure rotary jet self-drilling and self-blowing technology, suitable for foundation pit and slope anchoring ( cable ) support, anti - floating anchor, rotary jet anchor, various drilling projects.



Product Specifications



Torque 7500N.m
Power head speed 0-170r/min
Power head stroke 3400mm
Power head rated lifting force 70KN
Power head allowable pressure 36KN
Drilling depth 130-170m
Drill hole diameter 50-250mm
Drill rod diameter 50/60 /73 /89
Drilling angle 0-90
Motor power 55KW+18.5KW+1.5KW
Dimensions

when working 3550X2200X5650mm

When transport 5600X2200X2100mm

Overall weight 5900kg
lateral movement 900mm
System pressure 20Mpa
Climbing degree 25 °
Walking speed 2Km/h
Lifting height 3.5m



Product Features



The RCT150D Hydraulic High pressure Jet drill is a highly adaptable drill that can handle a wide range of formation conditions, including carbide bit rotary drilling, air DTH hammer impact rotary drilling and rolling cone drilling. Not only that, after the drilling is completed, it can immediately carry out rotary spray pile construction to meet a variety of construction process needs. In addition, it is also suitable for anchoring process construction, and users can choose different performance modules according to engineering requirements. Easy to operate, easy to maintain, equipped with a track chassis and support leg hydraulic cylinder, making the displacement and positioning of the drill becomes extremely convenient, ensuring the stability and reliability of the drilling. We can also provide complete rotary spraying equipment according to the needs of domestic users, and carry out on - site operation training and drilling demonstration. It is widely used in railway, highway, construction, water conservancy, electric power and other industries.



Product Image

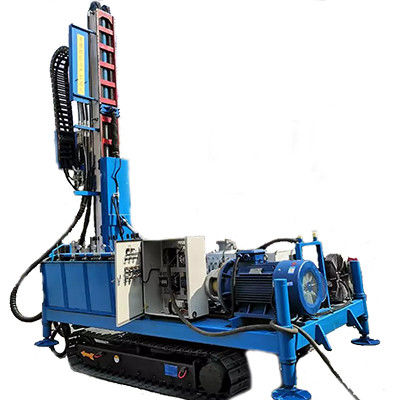

Hydraulic Jet Drilling Rig Equipment 75KW Motor Power 130m - 170m Drilling Depth 0Hydraulic Jet Drilling Rig Equipment 75KW Motor Power 130m - 170m Drilling Depth 1Hydraulic Jet Drilling Rig Equipment 75KW Motor Power 130m - 170m Drilling Depth 2
