Hydraulic High Pressure Jetting Drilling Rig Electric Motor 130m - 170m Depth

Hydraulic High Pressure Jetting Drilling Rig Electric Motor 130m - 170m Depth

jetting drilling rig 130m

high pressure jetting drilling rig

High Pressure Drilling Rig 170m

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCT80A

Contact Us
Request A Quote
Product Details
Name:
Engineering Drilling Rig
Model:
RCT80A
Drilling Depth:
130-170m
Drilling Rod Diameter:
50/60/89mm
Overall Weight:
5500kg
Transport:
6550X2100X2400mm
Highlight:

jetting drilling rig 130m

,

high pressure jetting drilling rig

,

High Pressure Drilling Rig 170m

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

130 - 170m Depth High Pressure Jetting Engineering Drilling Rig Electric Motor



Product Description



The RCT80A hydraulic high pressure jet rig represents our innovation in drilling technology. It is equipped with advanced features for displaying verticality, lifting speed and turning speed, and also supports single, double and triple pipe high - pressure jet pile construction with three meters of drill pipe. The applicability of this drill is very wide, covering soft soil foundation reinforcement, high - rise building basement seepage treatment, river and dam restoration, railway pier reinforcement and other projects. It can flexibly cope with a variety of construction processes such as fixed injection, swing injection and rotary injection, as well as different types of rotary injection requirements, including ordinary rotary drilling, air DTH hammer drilling and high - pressure rotary injection self - drilling and self - blowing processes. In addition, it is also suitable for pit and slope anchoring ( cable ) support, anti-floating anchor, rotary jet anchor, various drilling engineering and other fields, showing its excellent versatility and adaptability.



Product Specifications



Torque 5500N.m
Powerhead speed 0-266r/min
Powerhead stroke 3500mm
Powerhead rated lifting force 70KN
Powerhead allowable pressure 35KN
Drilling depth 130-170m
Drill rod diameter Φ50 mm; Φ60 mm Φ89 mm
Drilling angle

left and right ± 10 °;

front and back 0 ~ 100 °

Motor power 37KW+18.5KW+2.2KW
Dimensions

when working 3900X2100X6900mm

When transport 6550X2100X2400mm

Overall weight 5500kg
lateral movement 1500mm
System pressure 20Mpa
Climbing degree 25 °
Walking speed 3Km/h



Product Features



This innovative jet rig is equipped with a flexible rotary support that allows the hole position to be adjusted if necessary, resulting in a significant increase in operational efficiency. The tower is equipped with advanced display devices to ensure precise control of verticality, rotation speed and lifting speed, making hole positioning both fast and accurate. Thanks to the full hydraulic power head drive and step speed regulation technology, the drilling rig not only has high drilling efficiency, but also reduces the operating intensity. Its large traction track chassis gives it a strong climbing force and rapid equipment displacement, allowing it to operate efficiently on a variety of terraforms. The multi - angle construction capability of jet drilling rig can adapt to different formations and various rotary injection processes. The long travel of the power head and the capability of three meters of drill pipe effectively reduce the auxiliary time, while the maximum speed of 266 RPM significantly increases the operating speed. The application of new winch and hydraulic control technology greatly reduces the dependence on manpower, improves production efficiency, and greatly improves the working environment and safety of construction personnel.

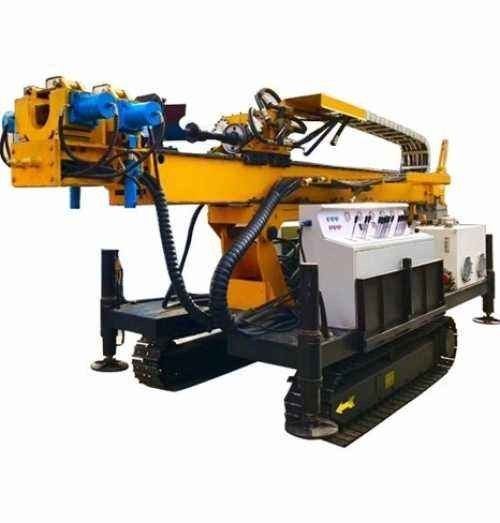

Product Image



Hydraulic High Pressure Jetting Drilling Rig Electric Motor 130m - 170m Depth 0Hydraulic High Pressure Jetting Drilling Rig Electric Motor 130m - 170m Depth 1Hydraulic High Pressure Jetting Drilling Rig Electric Motor 130m - 170m Depth 2Hydraulic High Pressure Jetting Drilling Rig Electric Motor 130m - 170m Depth 3
