180m Depth Engineering Drilling Rig 125KW Engine Hydraulic Anchor Drilling Machine

180m Depth Engineering Drilling Rig 125KW Engine Hydraulic Anchor Drilling Machine

engineering drilling rig 125kw

hydraulic anchor drilling machine

180m anchor drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180Q

Contact Us
Request A Quote
Product Details
Name:
Engineering Drilling Rig
Model:
RCF180Q
Drilling Depth:
180m
Drilling Diameter:
110-300mm
Diesel Engine:
125KW Cummins Engine
Host Size:
6500*2200*3000mm
Highlight:

engineering drilling rig 125kw

,

hydraulic anchor drilling machine

,

180m anchor drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

180m Depth Hydraulic Anchor Engineering Drilling Rig 125KW Cummins Engine Power



Product Description



The RCF180Q rig is a fully hydraulically powered multi - function crawler rig known for its top - drive design and versatility for vertical or inclined drilling. It can adapt to a variety of drilling methods, has a strong adaptability to different formations and complex conditions, and is especially suitable for solving drilling problems such as loose overburden layer, pebble layer and fractured bedrock formation. The main application areas of this drill include deep foundation pit support for high - rise buildings, foundation reinforcement and ground source heat pump hole construction. It is also widely used in rock engineering, such as the construction of large - tonnage prestressed anchor holes and drainage holes in hydropower stations, railway and highway slope projects, as well as the construction of high - pressure rotary jet pilot holes and blasting projects in gravel formations. In addition, the RCF180Q drilling rig can also be used in anti - floating anchor, indoor building foundation reinforcement, rotary jet reinforcement, embankment dam reinforcement, landslide prevention anchoring, open-pit quarries and tunnel ceiling projects.



Product Specifications



Model RCF180Q
Hole Depth(m) 180
Hole Diameter(mm) Ф110~300
The dip angle of pipe(mm) -10~90°
Horizontal hole height(m) 0.6~2.1~3.0
Output speed(rpm) 30/60;45/90;75/150
Maximum output torque(Nm) 8500
Give progress(mm) 3500
Maximum feeding / pulling force(kN) 45/65
Power machine model 6BTA5.9-C125
Input power 125kw/2200rpm
Chassis Model PD135
Host size(mm) 6500*2200*3000
Rig mass(kg) 8500



Product Features



The RCF180Q rig, with its powerful rotary torque and wide range of applications, is an efficient, fast drilling rig that can quickly deal with accidents and improve drilling efficiency. The extension mechanism of the top transmission power head effectively protects the drill tool, while the shift mechanism with hydraulic shift provides a fast, convenient and reliable operating experience. Hydraulic clamp and wrench equipment reduce auxiliary time and reduce operating intensity. The rig is equipped with a tracked chassis for more flexible movement. Hydraulic components of world - renowned brands are selected to ensure high reliability and performance stability. The RCF180Q can be used with a variety of drilling methods, including non - circulating hydraulic rotary drilling, DTH hammer drilling, and mud circulation drilling in rock and sand formations in air. In addition, the RCF180Q rig is equipped with a horizontal system ( drill arm ), which can adjust the Angle and height of the mast without moving the rig, especially for anchored drilling on deep foundation pits. It can also be fitted with a jet grouting device for extended head anchoring work.



Product Image

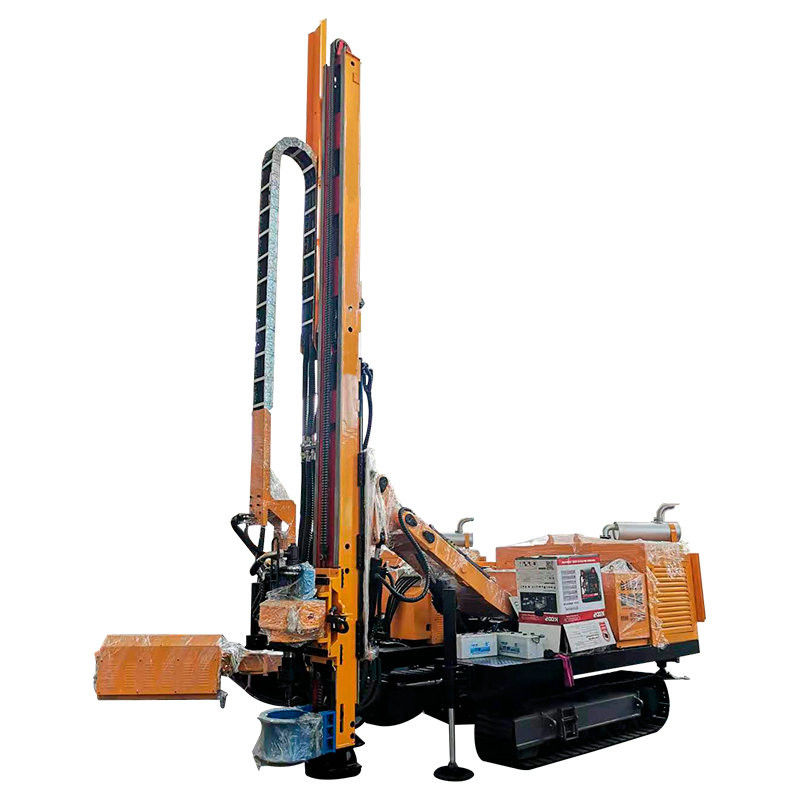

180m Depth Engineering Drilling Rig 125KW Engine Hydraulic Anchor Drilling Machine 0180m Depth Engineering Drilling Rig 125KW Engine Hydraulic Anchor Drilling Machine 1180m Depth Engineering Drilling Rig 125KW Engine Hydraulic Anchor Drilling Machine 2

180m Depth Engineering Drilling Rig 125KW Engine Hydraulic Anchor Drilling Machine 3180m Depth Engineering Drilling Rig 125KW Engine Hydraulic Anchor Drilling Machine 4
