Name: Anchor Engineering Drilling Rig 93KW 150m Depth Hydraulic Crawler Drill Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RC168Y
Availability: InStock

Home > products > Engineering Drilling Rig >

Anchor Engineering Drilling Rig 93KW 150m Depth Hydraulic Crawler Drill Machine

anchor engineering drilling rig

engineering drilling rig 93kw

anchor hydraulic crawler drill machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC168Y

Request A Quote

Anchor Engineering Drilling Rig 93KW 150m Depth Hydraulic Crawler Drill Machine

Product Details

Name:

Engineering Drilling Rig

Model:

RC168Y

Bore Depth:

Max 150m

Mast Compensation:

1200mm

Transport Dimension(L*W*H):

5920*2280*2480mm

Weight:

7200kg

Highlight:

anchor engineering drilling rig

engineering drilling rig 93kw

anchor hydraulic crawler drill machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

7.5KW Electric Hydraulic Drilling Rig For Anchoring Up To 60m Depth

Get Best Price

Video

Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig

Get Best Price

Video

40-60m Split Type Hydraulic Anchor Drilling Rig With 25 KN Maximum Pull Force

Get Best Price

Video

Split Type 60m Hydraulic Anchor Drilling Rig with 7.5KW Electric Motor Power

Get Best Price

Contact Now

Product Description

150m Depth Hydraulic Crawler Anchor Engineering Drilling Rig Cummins 93KW Power

Product Description

The RC168Y Hydraulic anchoring engineering rig is a highly efficient multi-function rig designed for anchoring and engineering drilling. It is powered by a hydraulic system, equipped with a two - cylinder hydraulic column and a 6 - speed rotor, suitable for drilling 100 - 300mm diameter, with a maximum drilling depth of 100 meters. In addition, it has a rapid anchoring system and oil cooling system to ensure stable drilling and hydraulic system operation. It is easy to operate, supports remote operation, and is widely used in geological exploration, highway and railway engineering, river embankment strengthening engineering and other fields.

Product Specifications

Bore diameter(mm)	100-300
Bore depth(m)	150
Rotation speed(rpm)	80
Rotary Torque(N.m)	8600
Mast compensation(mm)	1200
Propel speed(M/s)	0.6
Maximum propel(kn)	12
Maximum pull(kn)	26
Mast length(mm)	5350
Once promotion(mm)	3200
walk speed(km/h)	3
Chassis floating(º)	12
Chassis height(mm)	310
Climb ability(º)	35
Diesel engine	Cummins 93KW
Transport Dimension(LWH)(mm)	592022802480
Weight(kg)	7200

Product Features

The RC168Y anchor rig is suitable for drilling under complex geological conditions due to its efficient and stable performance. The rig is equipped with a low speed and high torque hydraulic motor to ensure efficient drilling, while the two - stage air filter also improves air quality and extends the service life of the diesel engine. The multi - way valve control system provides easy operation and automatic monitoring of hydraulic and propulsion pressures for improved accuracy and safety. In addition, the rig is equipped with a track tensioner and spotlight to meet the needs of night work and maintenance.

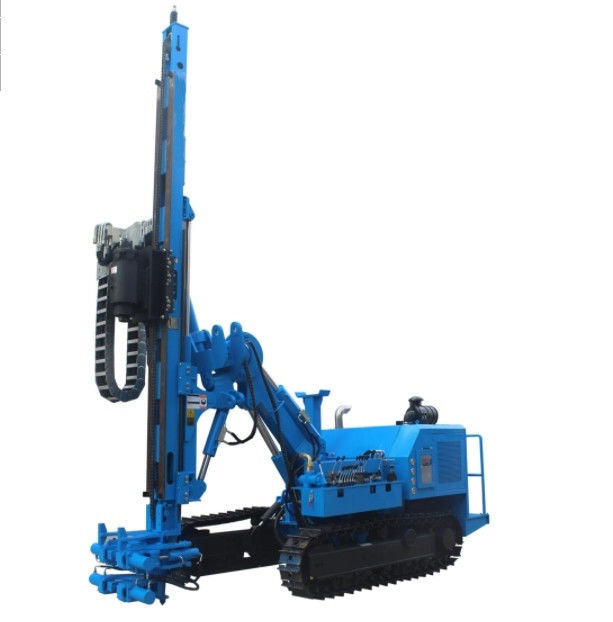

Product Image
