980 Nm Engineering Drilling Rig Construction Drilling Rig 90-150 Mm Drilling Diameter

980 Nm Engineering Drilling Rig Construction Drilling Rig 90-150 Mm Drilling Diameter

980 Nm Engineering Drilling Rig

Construction Drilling Rig

150 Mm Engineering Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCA-40E

Contact Us
Request A Quote
Product Details
Features:
Great Drilling Capability, Wide Range Of Application, Rapid Drilling Speed And High Drilling Efficiency, Powerful Ability Of Eliminating Accident, Extension Mechanism In The Output Spindle Of Top Drive Power Head, Front-mounted Adjustable Columns On Drill
Drilling Tilt Angle:
0 - 120 °
Drilling Depth:
40-60m
Mast Slip Stroke:
500 Mm
Rated Output Torque Of The Power Head:
980 Nm
Drill Specifications:
¢ 60X1000mm, ¢ 76X1000mm
Electric Motor Power:
7.5KW
Power Head Biggest Feeding Force:
25 KN
Highlight:

980 Nm Engineering Drilling Rig

,

Construction Drilling Rig

,

150 Mm Engineering Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

980 Nm Engineering Drilling Rig Construction Drilling Rig 90-150 Mm Drilling Diameter

Product Description:

The Hydraulic Anchor Drilling Rig is a robust and durable machine that weighs 320kg, making it easy to move around work sites without compromising on stability. Its application is extensive, making it a great investment for construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity fathering for landslide prevention and rock collapse. In addition, it is perfect for drilling small size water well and high-pressure jet grouting hole.

The Power Head Maximum Pull Force of the Hydraulic Anchor Drilling Rig is 25 kN, which means it can handle a wide range of drilling tasks with ease. Whether you’re drilling through soft or hard rock, this machine can get the job done quickly and efficiently. The drilling diameter ranges from 90-150 mm, making it a versatile machine.

The Hydraulic Anchor Drilling Rig is also known as an anchor drilling machine or rock anchor drilling machine. It is equipped with advanced technology that makes drilling tasks more manageable and accurate. The hydraulic system ensures that the machine operates smoothly, and the drill bit is powerful enough to drill through even the toughest rock formations.



Features:

  • Product Name: Engineering Drilling Rig
  • Power Head Stroke: 1200mm
  • Mast Slip Stroke: 500 mm
  • Power Head Maximum Pull Force: 25 kN
  • Features:
    • Great drilling capability
    • Wide range of application
    • Rapid drilling speed and high drilling efficiency
    • Powerful ability of eliminating accident
    • Extension mechanism in the output spindle of top drive power head
    • Front-mounted adjustable columns on drill frame
    • Separate group design
    • Hydraulic drive and operation
    • Suitable for various drilling methods
  • Drilling Depth: 40-60m

This soil nailing drilling equipment, construction drilling rig, and anchor drilling machine boasts a powerful ability to eliminate accidents and is suitable for various drilling methods.



Technical Parameters:

Product Name 980 Nm Engineering Drilling Rig Construction Drilling Rig 90-150 Mm Drilling Diameter
Product Category Engineering Drilling Rig
Hammer Size 90 or 110
Drilling Tilt Angle 0 - 120 °
Power Head Biggest Feeding Force 25 kN
Mast Slip Stroke 500 mm
Applications Construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity fathering for landslide prevention and rock collapse, drilling small size water well and high-pressure jet grouting hole
Drill Specifications ¢ 60X1000mm, ¢ 76X1000mm
Hydraulic System Rated Pressure 14 Mpa
Drilling Depth 40-60m

This construction drilling rig is also suitable for soil nailing drilling equipment and rock anchor drilling machine.



Applications:

RanCheng RCA-40E Engineering Drilling Rig is a high-quality soil nailing drilling equipment suitable for a variety of construction sites. With CE and ISO 9001:2000 certifications, it is guaranteed to meet international standards.

The hammer size of the RCA-40E is 90 or 110, making it suitable for a variety of drilling depths. With a maximum pull force of 25 kN and a biggest feeding force of 25 kN, it can handle tough drilling tasks with ease. The power head output speed ranges from 0 ~-80 Rpm, providing the necessary power for efficient drilling.

Some of the application occasions and scenarios for this engineering drilling rig include soil nailing drilling equipment in construction sites, foundation reinforcement in high-rise buildings, and geological exploration in mines. It is also suitable for drilling water wells and geothermal wells. With its versatility and power, the RCF80GP is an excellent choice for any project that requires high-quality drilling equipment.

FAQ:

Q:Are you the manufacturer?

A: Yes, we are the factory with more than 10 years of manufacturing experience.

Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.

Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.


Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;

Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

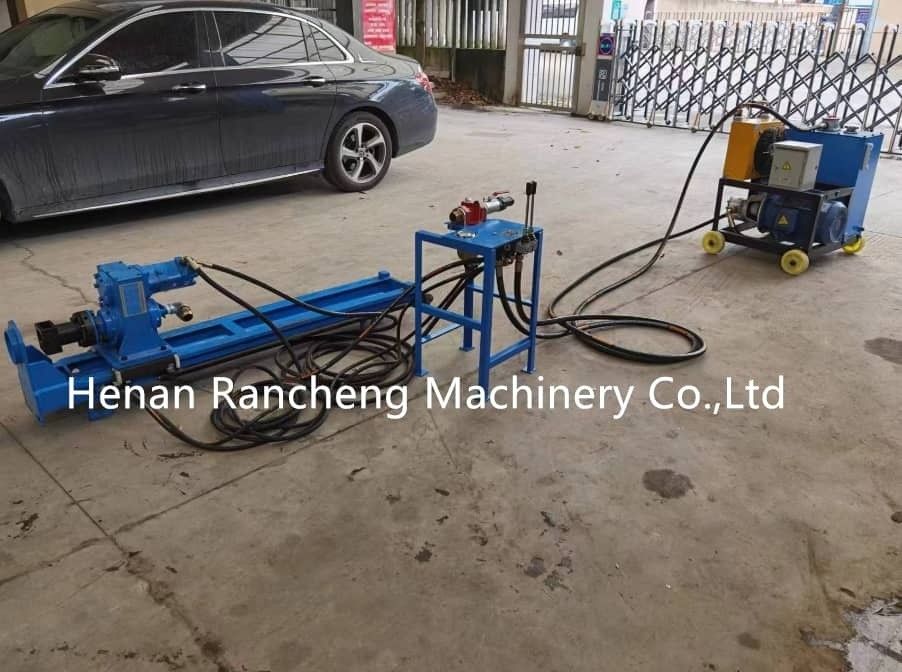

980 Nm Engineering Drilling Rig Construction Drilling Rig 90-150 Mm Drilling Diameter 0
