60m Small Crawler Type DTH Rotary Blasting Mounted Borehole Portable Mining Pneumatic Borehole Directional Machine
Product Description
RC140Y High Air Pressure DTH Drilling rig with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, full hydraulic control and adopt famous brand hydraulic system, operation and comfortable
This DTH drilling rig Rotary organizations to adopt a new dual-motor turret ,it assure the drilling rig to maintain a strong rotary torque output when drilling large holes in the open air blast hole drilling projects
it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.
Product Specifications
| Wind pressure(Mpa) |
1.2—2.46 |
| Air consumption(m³/min) |
10--20 |
| Drilling diameter(mm) |
115---150 |
| Drilling depth(m) |
down 62m |
| Once promotion distance(mm) |
3000 |
| Drill diameter(mm) |
76 |
| Skid compensation(mm) |
1200 |
| Maximum lift force(N) |
26000 |
| Guide shell lutting(°) |
up and down total 100 |
| Guide shell swing angle(°) |
Left and right total 100 |
| Boom lift angle(°) |
up and down total 70 |
| Boom swing angle(°) |
70 |
| Grade ability(°) |
30 |
| Chassis ground clearance(mm) |
300 |
| Travelling speed(Km/h) |
0-2.5 |
| Back to the transit speed(r/min) |
0--90 |
| Rotary torque(N.m) |
3100 |
| Host Power(kW) |
56 |
| For rock |
6---20 |
| Total Weight(kg) |
4800 |
| Dimension (L * W * H) |
5270*1950*2400mm |
Application
This hydraulic drilling rig is one multi functional drilling machine ,widely used for open pit mining blasthole drilling ,quarry blasthole drilling , highway blasthole drilling , water conservancy, power station construction , anchor drilling ,soil nailing ,slope supporting and other drilling projects
Advantage:
1.this drilling machine hydraulic motor with low rotation speed, large torque
2.this drilling rig Adopt oil cylinder propulsion, make sure stable performance
3.Two stage air filter ensure the air quality, and prolong the lifetime of the diesel
4.Multiple valve control system, easy to operate
5.Monitoring the pressure of hydraulic and propulsion automatically
6.this blasthole drilling rig has crawler tensioning device to ensure the reliability of the operation
7.this hydraulic bore hole drilling machine has spotlight to make night work and maintenance convenient
8.this drilling machine is compact structure, safe to operate.
9.this blasting drilling rig has the mobile and flexible climbing ability with perforation shift convenience features, suitable for rugged venue operations.
10.Whole diameter 105-165mm, with a piercing, high efficiency, Maintenance is simple, high reliability.

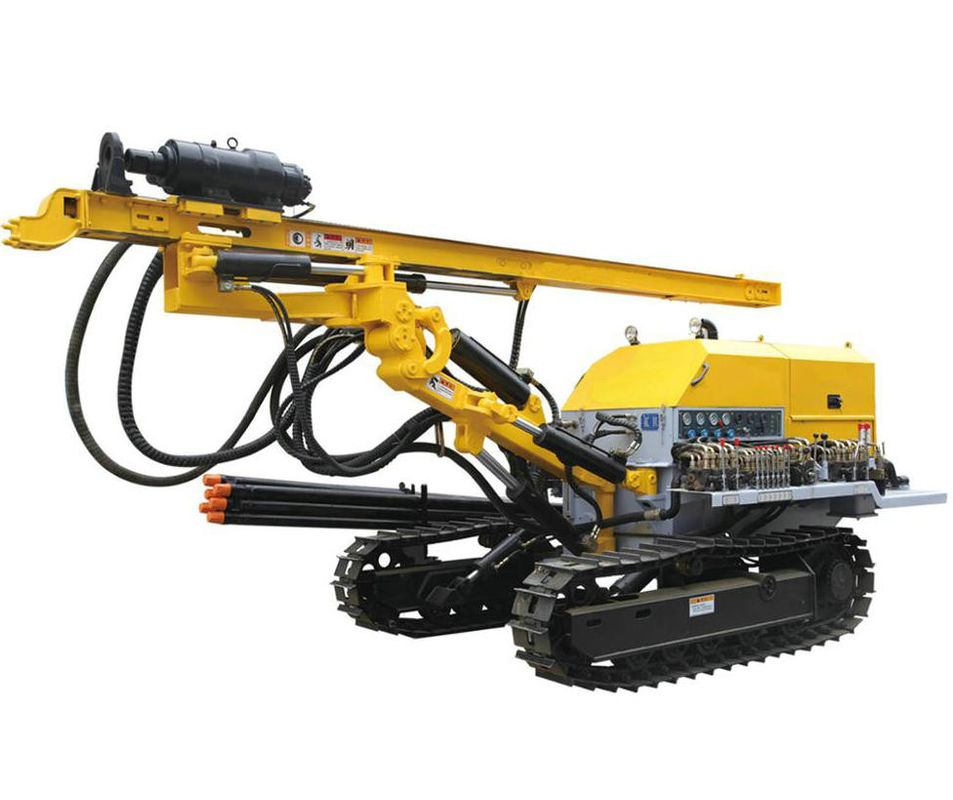

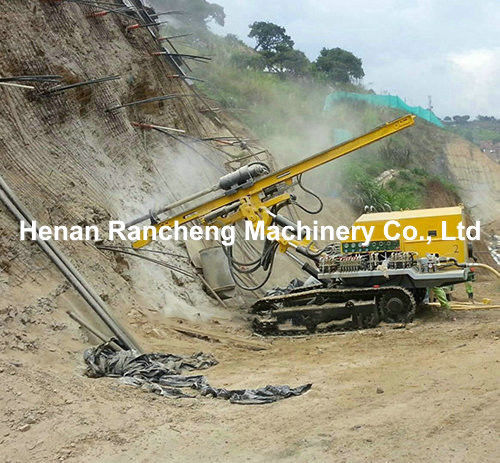

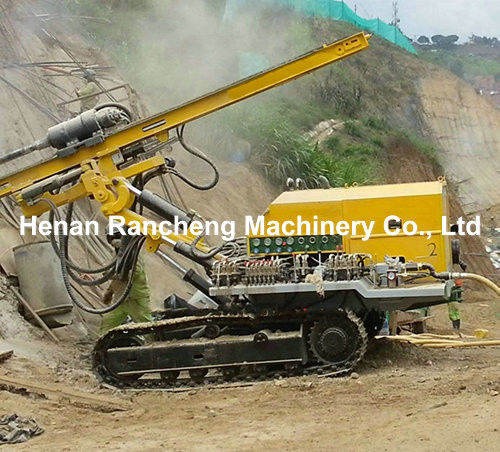

Product Image
