60-80m High Air Pressure DTH Drilling Rig With A Low Energy Consumption

60-80m High Air Pressure DTH Drilling Rig With A Low Energy Consumption

High Air Pressure DTH Drilling Rig

Low Energy Consumption DTH Drilling Rig

80m DTH Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC168Y

Contact Us
Request A Quote
Product Details
Name:
Engineering Drilling Rig
Model:
RC168Y
Mast Compensation:
1200mm
Transport Dimension(L*W*H):
5920*2280*2480mm
Weight:
7200kg
Highlight:

High Air Pressure DTH Drilling Rig

,

Low Energy Consumption DTH Drilling Rig

,

80m DTH Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

60-80m High Air Pressure DTH Drilling Rig With A Low Energy Consumption

Product Description

RC140Y High Air Pressure DTH Drilling rig with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, full hydraulic control and adopt famous brand hydraulic system, operation and comfortable

This DTH drilling rig Rotary organizations to adopt a new dual-motor turret ,it assure the drilling rig to maintain a strong rotary torque output when drilling large holes in the open air blast hole drilling projects.it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.

Application

This hydraulic drilling rig is one multi functional drilling machine ,widely used for open pit mining blasthole drilling ,quarry blasthole drilling , highway blasthole drilling , water conservancy, power station construction , anchor drilling ,soil nailing ,slope supporting and other drilling projects


Product Specifications


Bore diameter(mm)100-300
Bore depth(m)150
Rotation speed(rpm)80
Rotary Torque(N.m)8600
Mast compensation(mm)1200
Propel speed(M/s)0.6
Maximum propel(kn)12
Maximum pull(kn)26
Mast length(mm)5350
Once promotion(mm)3200
walk speed(km/h)3
Chassis floating(º)12
Chassis height(mm)310
Climb ability(º)35
Diesel engineCummins 93KW
Transport Dimension(L*W*H)(mm)5920*2280*2480
Weight(kg)7200


Product Features

1.this drilling machine hydraulic motor with low rotation speed, large torque
2.this drilling rig Adopt oil cylinder propulsion, make sure stable performance
3.Two stage air filter ensure the air quality, and prolong the lifetime of the diesel
4.Multiple valve control system, easy to operate
5.Monitoring the pressure of hydraulic and propulsion automatically
6.this blasthole drilling rig has crawler tensioning device to ensure the reliability of the operation
7.this hydraulic bore hole drilling machine has spotlight to make night work and maintenance convenient
8.this drilling machine is compact structure, safe to operate.
9.this blasting drilling rig has the mobile and flexible climbing ability with perforation shift convenience features, suitable for rugged venue operations.
10.Whole diameter 105-165mm, with a piercing, high efficiency, Maintenance is simple, high reliability.

Product Image

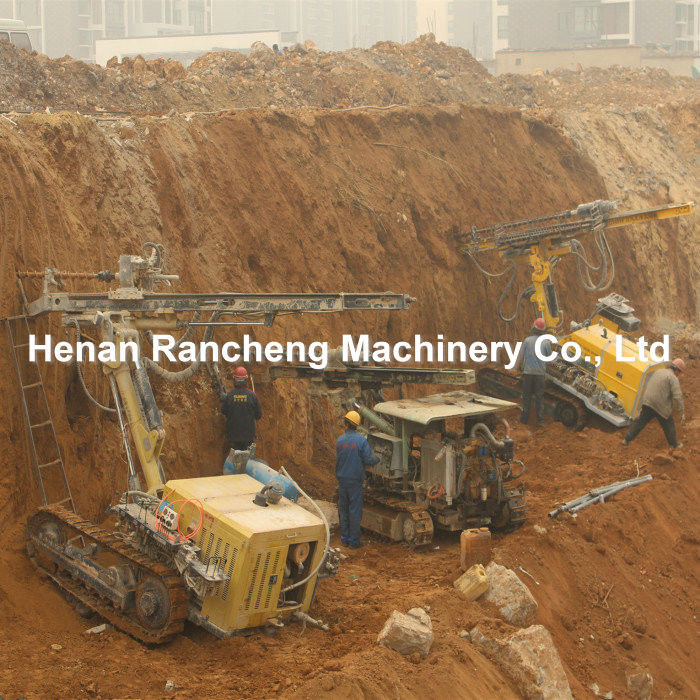

60-80m High Air Pressure DTH Drilling Rig With A Low Energy Consumption 060-80m High Air Pressure DTH Drilling Rig With A Low Energy Consumption 1
60-80m High Air Pressure DTH Drilling Rig With A Low Energy Consumption 2
60-80m High Air Pressure DTH Drilling Rig With A Low Energy Consumption 3
