Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig

Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig

Rock Impact Drilling Rig

Hole Hammer Drilling Rig

Top Hammer Blasting Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC140Y

Contact Us
Request A Quote
Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig
Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig
Product Details
Name:
Engineering Drilling Rig
Model:
RC140Y
Drilling Diamete:
90---150mm
Drilling Depth:
Down 60m
Dimension (L * W * H):
5270*1950*2400mm
Total Weight:
4800kg
Once Promotion Distance(mm) :
3000
Air Consumption(m³/min):
10-20
Wind Pressure(Mpa):
1.2—2.46
Highlight:

Rock Impact Drilling Rig

,

Hole Hammer Drilling Rig

,

Top Hammer Blasting Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 7.5KW Electric Hydraulic Drilling Rig For Anchoring Up To 60m Depth online Video

7.5KW Electric Hydraulic Drilling Rig For Anchoring Up To 60m Depth

Get Best Price
Good price Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig online Video

Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig

Get Best Price
Good price 40-60m Split Type Hydraulic Anchor Drilling Rig With 25 KN Maximum Pull Force online Video

40-60m Split Type Hydraulic Anchor Drilling Rig With 25 KN Maximum Pull Force

Get Best Price
Good price Split Type 60m Hydraulic Anchor Drilling Rig with 7.5KW Electric Motor Power online Video

Split Type 60m Hydraulic Anchor Drilling Rig with 7.5KW Electric Motor Power

Get Best Price
Contact Us
Contact Now
Product Description

The Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig


Product Description


This hydraulic DTH drilling rig adopt a new dual-motor turret. It assures the drilling rig to have a strong rotary torque output when it drills large holes in the open-air blast hole drilling projects.

This rig has mobile and flexible and climbing abilities, which is suitable for rugged venue operations. It has perforation shift convenience features.

Product Specifications


Wind pressure(Mpa)1.2—2.46
Air consumption(m³/min)10--20
Drilling diameter(mm)115---150
Drilling depth(m)down 62m
Once promotion distance(mm)3000
Drill diameter(mm)76
Skid compensation(mm)1200
Maximum lift force(N)26000
Guide shell lutting(°)up and down total 100
Guide shell swing angle(°)Left and right total 100
Boom lift angle(°)up and down total 70
Boom swing angle(°)70
Grade ability(°)30
Chassis ground clearance(mm)300
Travelling speed(Km/h)0-2.5
Back to the transit speed(r/min)0--90
Rotary torque(N.m)3100
Host Power(kW)56
For rock6---20
Total Weight(kg)4800
Dimension (L * W * H)5270*1950*2400mm


Application

This hydraulic drilling rig is one multi-functional drilling machine, and it is widely used for open pit mining blasthole drilling ,quarry blasthole drilling , highway blasthole drilling , water conservancy, power station construction , anchor drilling ,soil nailing ,slope supporting and other drilling projects.


Advantage:

1. The slewing mechanism adopts a new dual-motor turret, which enables it to maintain a strong slewing torque output when drilling large holes in open-pit blasting drilling operations.
2. The dragging air compressor makes it flexible, has strong climbing ability, is suitable for rugged site operations, and is convenient for drilling and shifting.

3. The whole machine has a diameter of 105-165mm, with high drilling efficiency, simple maintenance, and high reliability.
It is an ideal drilling rig for construction operations such as mining, highways, water conservancy, and power station construction.

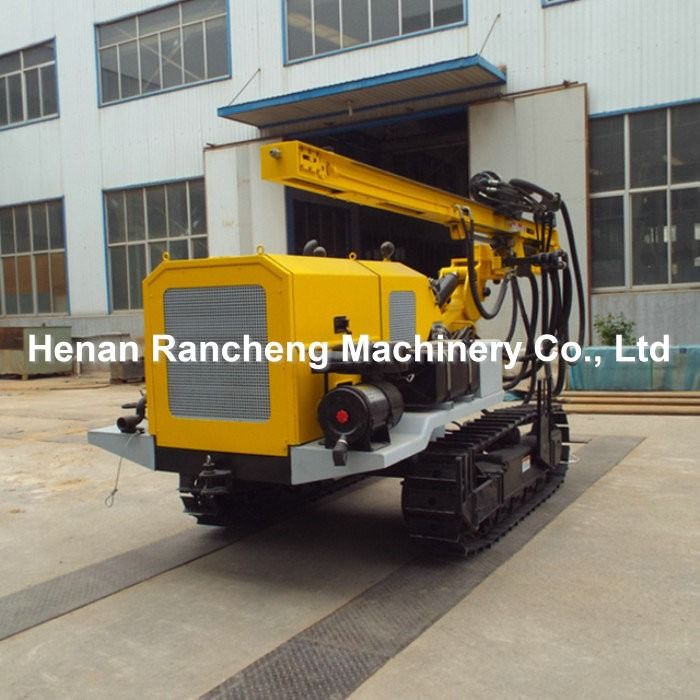

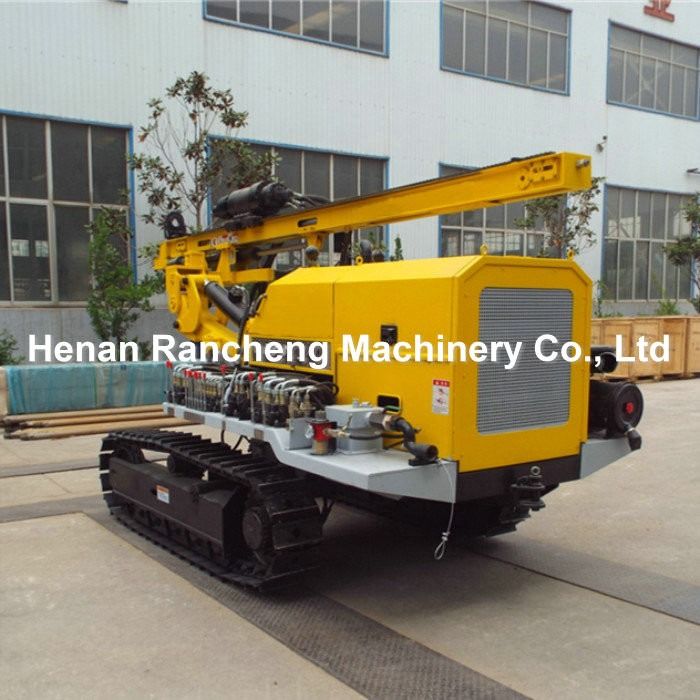

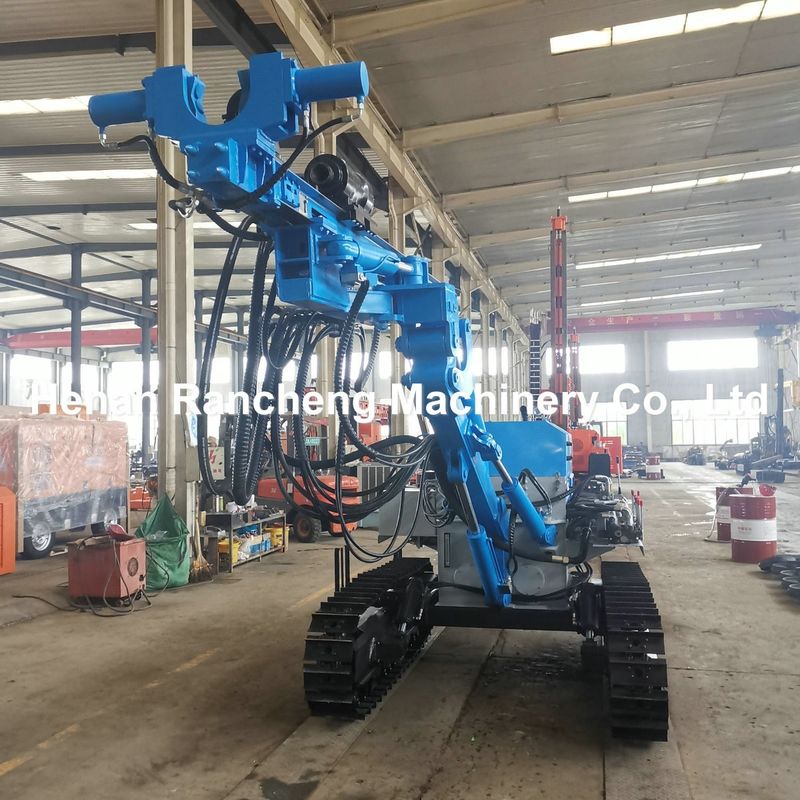

Product Image

Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig 0Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig 1Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig 2Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig 3Hole Hammer Rock Impact Drilling Rig Top Hammer Blasting Drilling Rig 4
