Product Description:

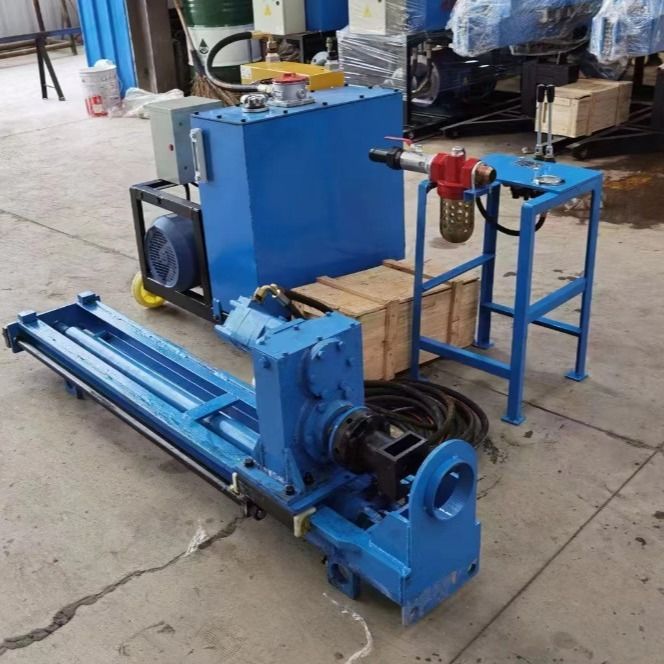

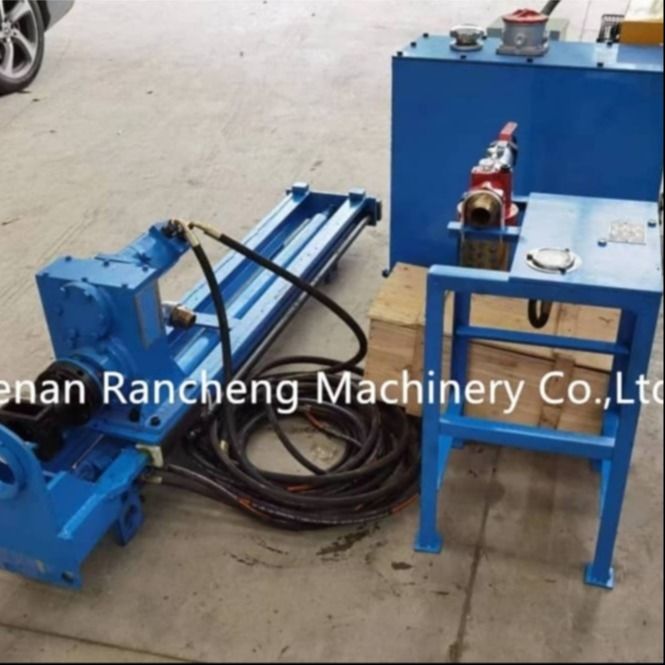

Introducing the RCA-40E Construction Drilling Rig – the ultimate solution for your deep hole drilling needs. Engineered with cutting-edge technology, this full hydraulic-operated top drive power head anchor drill machine is designed to deliver exceptional performance in a variety of challenging environments.
The RCA-40E is a composite power model, seamlessly integrating a powerful motor with compressed air to provide unparalleled torque and drilling capability. This robust combination ensures that the rig can tackle even the most demanding drilling tasks, making it the ideal choice for deep hole blasting applications. Whether you are working on slope support, quarries, water conservancy projects, or highway and railway construction, the RCA-40E is built to excel.
One of the standout features of the RCA-40E is its low maintenance rate, which translates to reduced downtime and increased productivity on the job site. Its lightweight design enhances mobility, allowing for easy transportation and setup, so you can get to work quickly and efficiently.
The RCA-40E is not just a drilling rig; it is a reliable partner that empowers your projects with its strong drilling ability and versatility. With its advanced hydraulic system and durable construction, this rig is engineered to withstand the rigors of heavy-duty use while maintaining optimal performance.
Invest in the RCA-40E Construction Drilling Rig and experience the perfect blend of power, efficiency, and reliability. Elevate your drilling operations and achieve outstanding results with a machine that is designed to meet the demands of modern construction projects. Choose the RCA-40E – where innovation meets performance.
Features:
● It has great drilling capability, wide range of application , rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accident.
● Extension mechanism in the output spindle of top drive power head can protect drilling tools effectively. It can increase the hole inclination angle range and drill elevation angle holes, while setting the top drive power head and hole top plate toward the opposite direction.
● A set of front-mounted adjustable columns on drill frame is used for adjusting the height of mast front-end, which makes it convenient to align with hole site.
Technical Parameters:
| Product Name: |
40-60m Drilling Depth Rock Anchor Drilling Machine Split Type Hydraulic Anchor Drilling Rig With Electric Motor Power |
| Product Category: |
Engineering Drilling Rig |
| Power Head Biggest Feeding Force: |
25 kN |
| Drill Specifications: |
¢ 60X1000mm, ¢ 76X1000mm |
| Power Head Output Speed: |
0 ~-80 Rpm |
| Hammer Size: |
90 or 110 |
| Power Head Stroke: |
1200mm |
| Rig Weight: |
320kg |
| Electric Motor Power: |
7.5KW |
| Rated Output Torque Of The Power Head: |
980 Nm |
